High Performance Vector Control/Torque Control Inverter User Manual
90 Chapter 6 Parameter Description

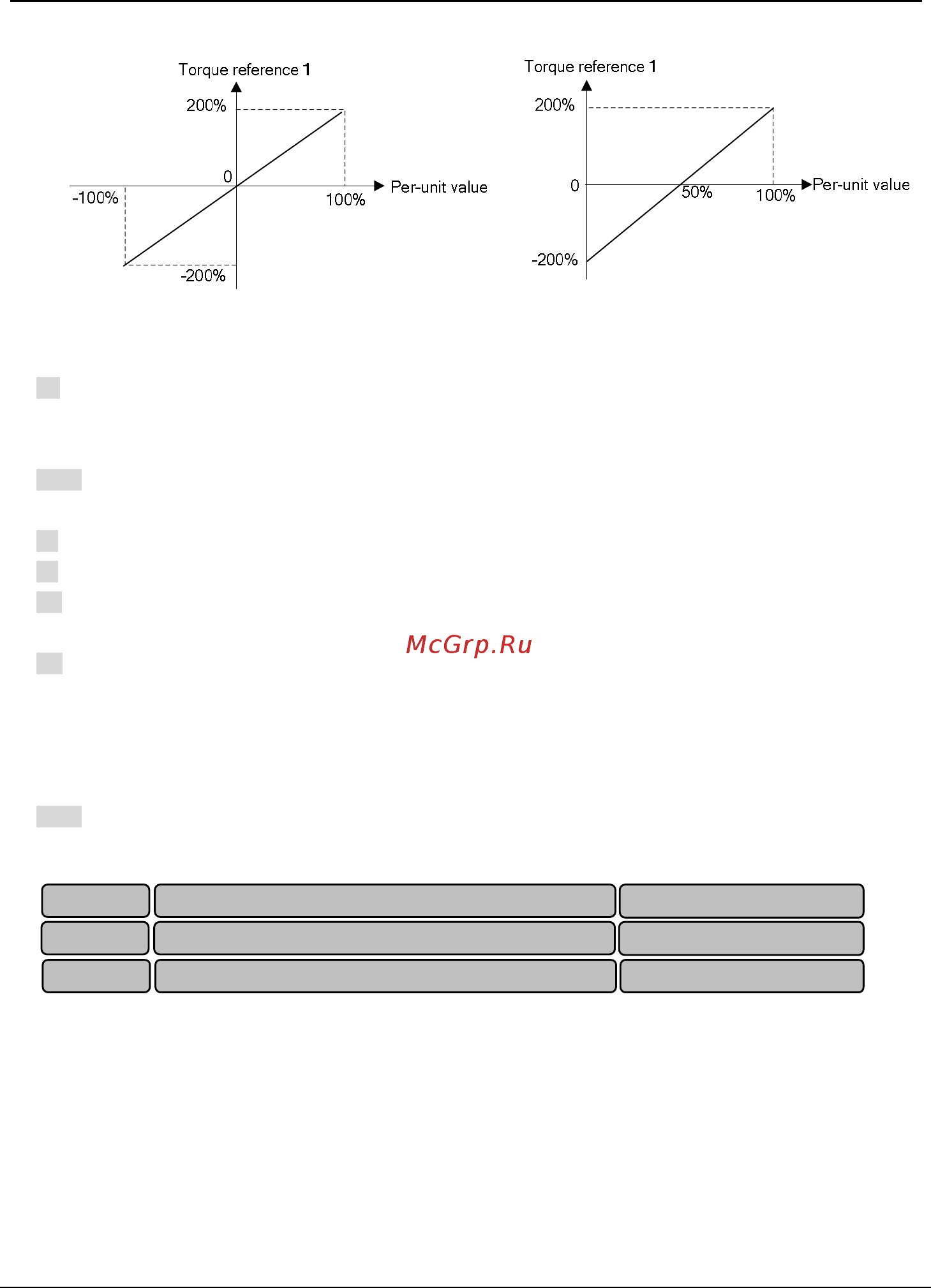

Fig.6−24 Torque reference 1 Fig.6−25 Torque reference 2
2: Torque reference 2: Determine the torque reference with the per-unit value converted from analog.
The 0 to 100% per-unit value A is subject to internal correction of（A－50%）×2, and then corresponds to
-200% to 200% of the torque input in positive and negative directions,as shown in Fig.6-25.
Note: When AI3 channel is used to input 0 to 10V, torque reference 2 can be used. When AI3 is used to
input -10V to 10V, torque reference 1 shall be used.
3: Reserved
4: Reserved
5: Motor temperature feedback: It is used together with P9.17 sensor protection threshold to report
motorthermal protection alarm.
6: Speed limiting: Valid upon torque control. The per-unit value converted from analog is used to
determine the speed limiting upon torque control operation. 0 to 100% per-unit value corresponds to 0 to
maximum speed limiting input. This function is valid for both forward and reverse running directions. If
the analog channel function has not been set as speed limiting upon torque control, the speed limiting
value shall adopt the value set in Pd.06 and Pd.07.
Note: If the analog channel function is set to non-zero value, please make sure that different analog
channels have different functions.
In field applications, the analog values input via AI1, AI2 and AI3 terminals usually have certain
interference signals. It can enlarge the setup value of AI filter time properly to improve the
anti-interference capability of the terminal input. However, the longer the filtering time of the terminal is,
the longer the delay for the response to the action of the terminal is.
P6.22 AI1 filtering time
0.000~1.000 s(0.004s)
P6.23 AI2 filtering time
0.000~1.000 s(0.004s)
P6.24 AI3 filtering time 0.000~1.000 s(0.004s)
