QSW-6200 Series Switch Hardware Installation and Reference Guide 31
www.qtech.ru
device signal interfaces caused by over-voltage or over-current of lightning.
3.3.1 Mounting the Switch in a Standard 19-inch Rack
The QSW-6200 series switches follow the EIA standard dimensions and can be installed in 19-inch rack. During the
installation, place the front panel of the switch to the rack. For safety purposes, screw up the distributed screws as shown
in the 3-1.

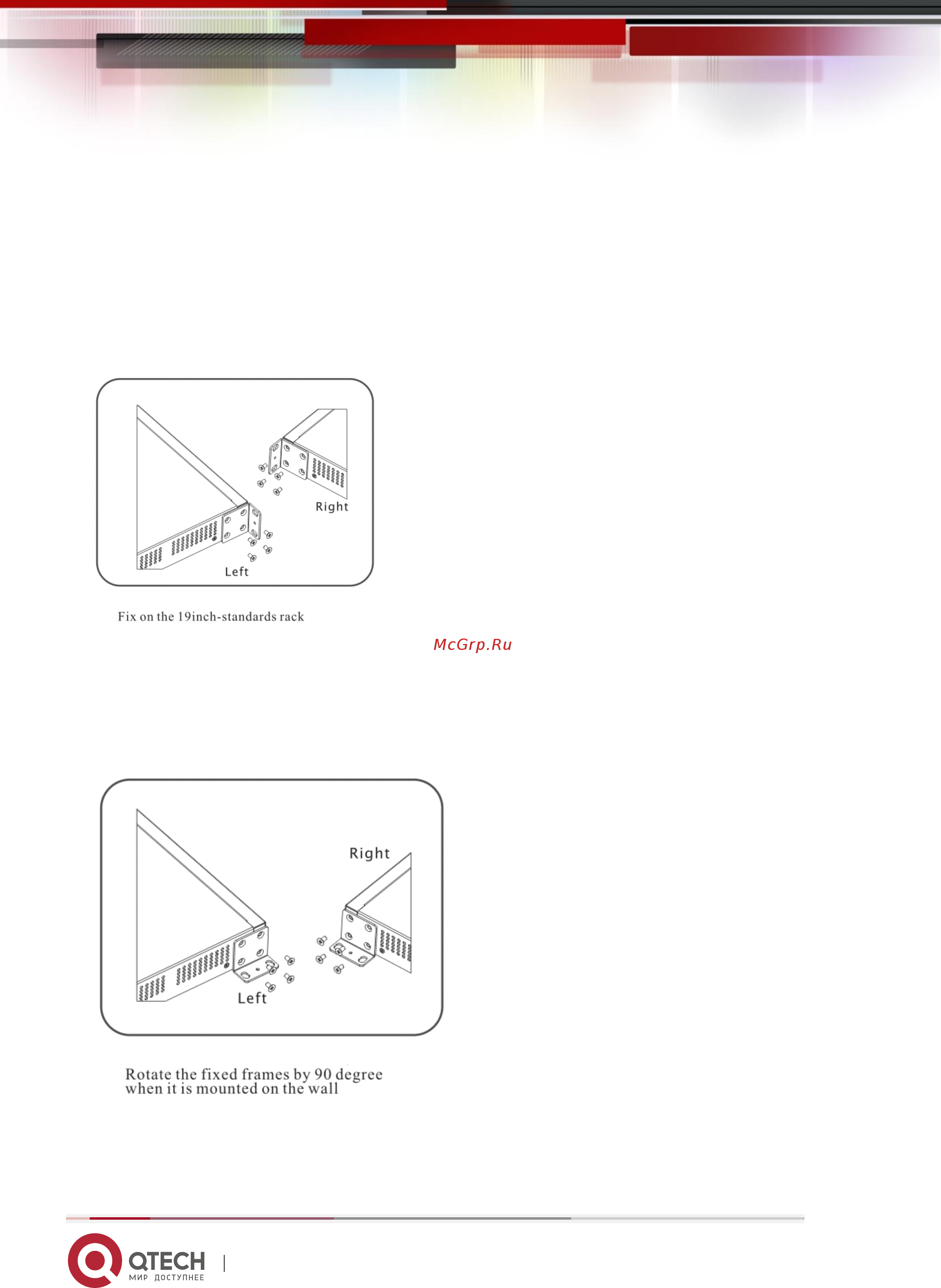

Figure 3-1 Attaching the Mounting Bracket to the Switch
3.3.2 Mounting the Switch on the Wall
The QSW-6200 series switches can be mounted on a wall with the supplied mounting brackets, as shown in Figure 3-2.
Figure 3-2 Attaching the Mounting Brackets to the Switch for Wall-Mounting
3.3.3 Mounting the Switch on a Table
For often, users may not have a 19-inch rack. Thus, it is common to mount the switch on the workbench with 2 simple
steps:
