 Attach the four rubber feet to the recessed areas on the bottom of the switch.

 Place the switch on the table and keep good ventilation.

3.4 Installing and Removing the Expansion Modules

Wear anti-static gloves before the following operations.

3.5 Installing and Removing the Power Modules

Please wear anti-static gloves equipment.

Installing an QSW-M-6200-PWR Power Module

Step 1: Take a new power module out of the package and confirm the input mode and the input parameters of the power

module match the requirements.

Step 2: Remove the power baffle and take the plane printed with power information as the top panel of the power module.

Hold the handle of the power module with one hand, and hold the end of the power module with the other hand. Insert it

into the chassis along the guide rail uprightly and slowly until a click is heard, and make sure that it is in good contact with

the power slot.

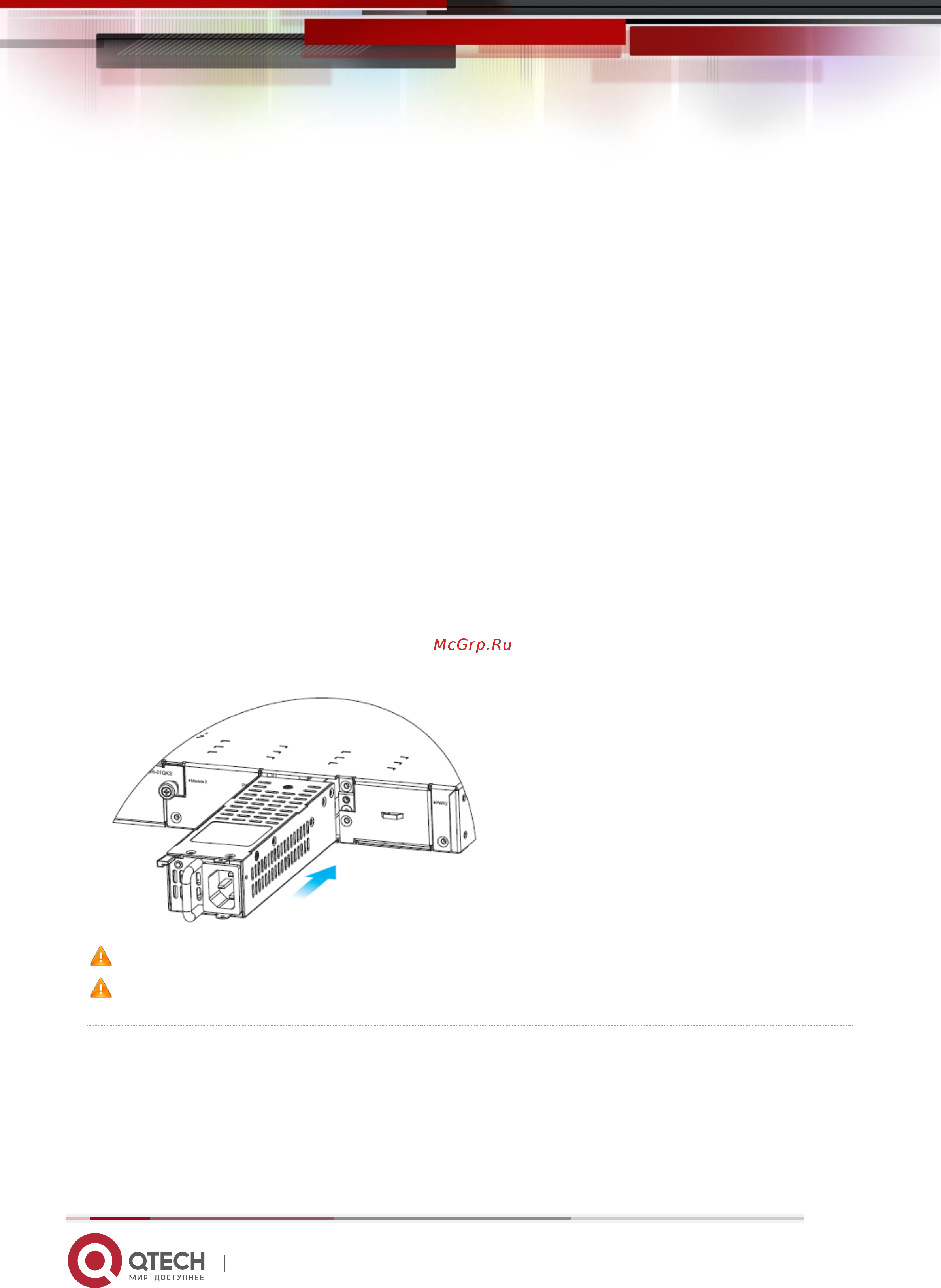

Figure 3-5 Installing a Power Module

Insert the power module smoothly. Please pay attention to the direction of the power panel to avoid wrong insertion.

If it is difficult or even impossible to insert the module, pull out the module, make sure the expansion module and

guide rail are well aligned, and then insert the module again.

Removing an QSW-M-6200-PWR Power Module

Step 1: Press the plug of the power module, Hold on to the module handle with one hand to pull out part of the module,

hold the bottom of it with the other hand, and pull out the power module uprightly and slowly.

Step 2: Install a baffle in the power module slot and put the removed power module into its package.

Figure 3-4 Removing a Power Module
