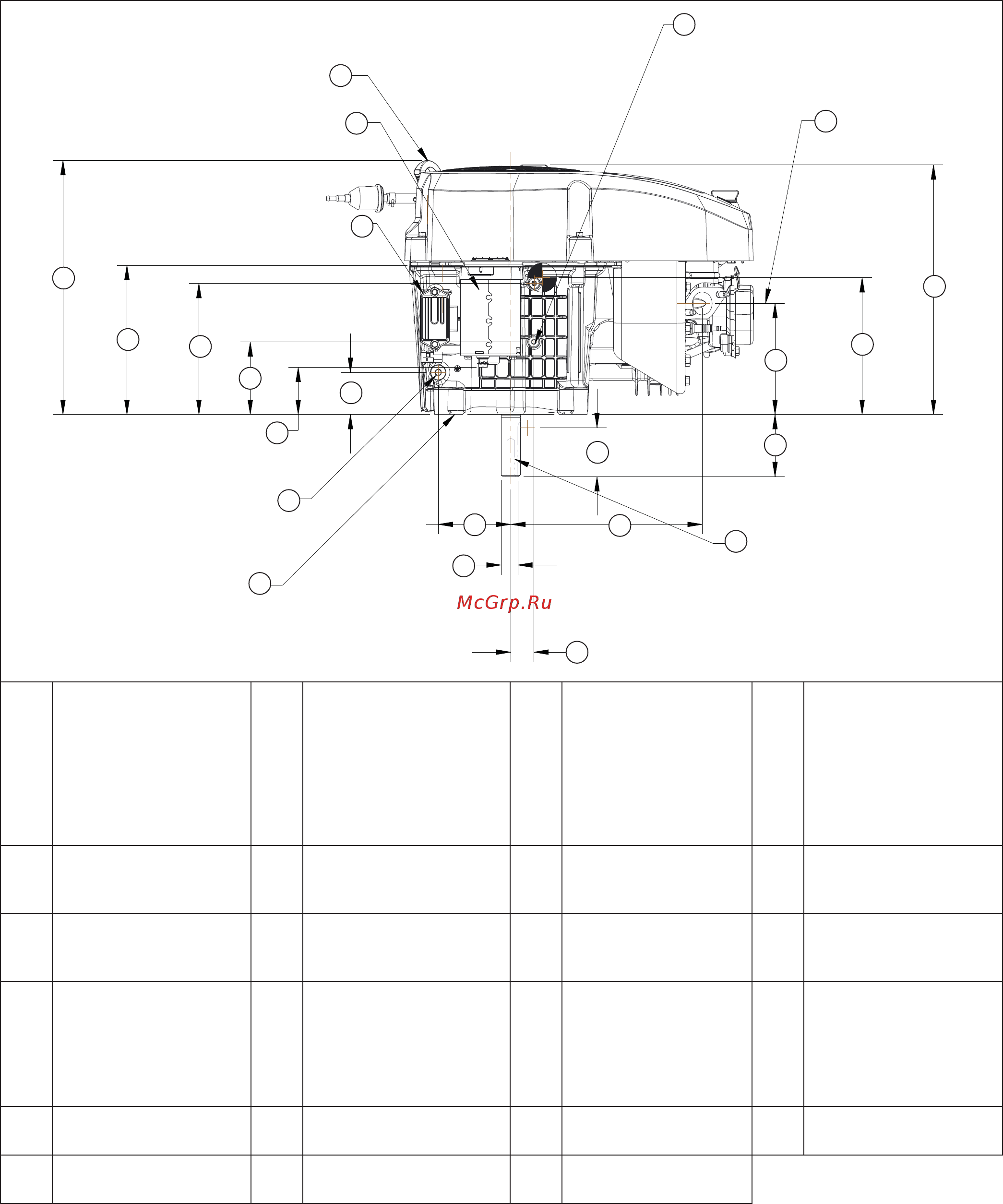

Engine Dimensions-Starter Side
F
E
G
H
I
K
A
B
D
C
J
L
M
N
O
P
Q
R
S
T
U
V
W
A
2 X Cored for M6
Self Tapping
Screw 17.7 mm
(0.70 in.) Min.
Depth
(Accessory
Mounting
Location)
B Exhaust Port Axis C
326.5 mm
(12.85 in.)
D
179.0 mm (7.05 in.)
to Center of
Gravity
E
145.2 mm (5.72 in.)
to Exhaust Port
F 81.3 mm (3.20 in.) G
64.0 mm (2.52 in.)
Keyway Length
H
7/16-20 UNF-2B IN.
38.1 mm (1.50
in.) Depth
I
250.3 mm (9.86 in.)
to Exhaust Port
J 2 X 30.0 mm (1.18 in.) K
21.6-21.8 mm (0.85-
0.86 in.) Keyway
Depth
L 95.0 mm (3.74 in.)
M
Engine Mounting
Surface
N
Cored for M8 Self
Tapping Screw
20.0 mm (0.79 in.)
Min. Depth
(Ground Lug
Location)
O
61.9 mm (2.44 in.) to
Starter Stud
P 55.0 mm (2.17 in.)
Q 95.0 mm (3.74 in.) R 171.5 mm (6.75 in.) S
195.0 mm (7.68 in.)
Lifting Point
T 332.3 mm (13.08 in.)
U
Optional Rectifi er-
Regulator
V Starter Motor W Oil Fill and Dipstick
