81
Reassembly
22 690 01 Rev. -- KohlerEngines.com

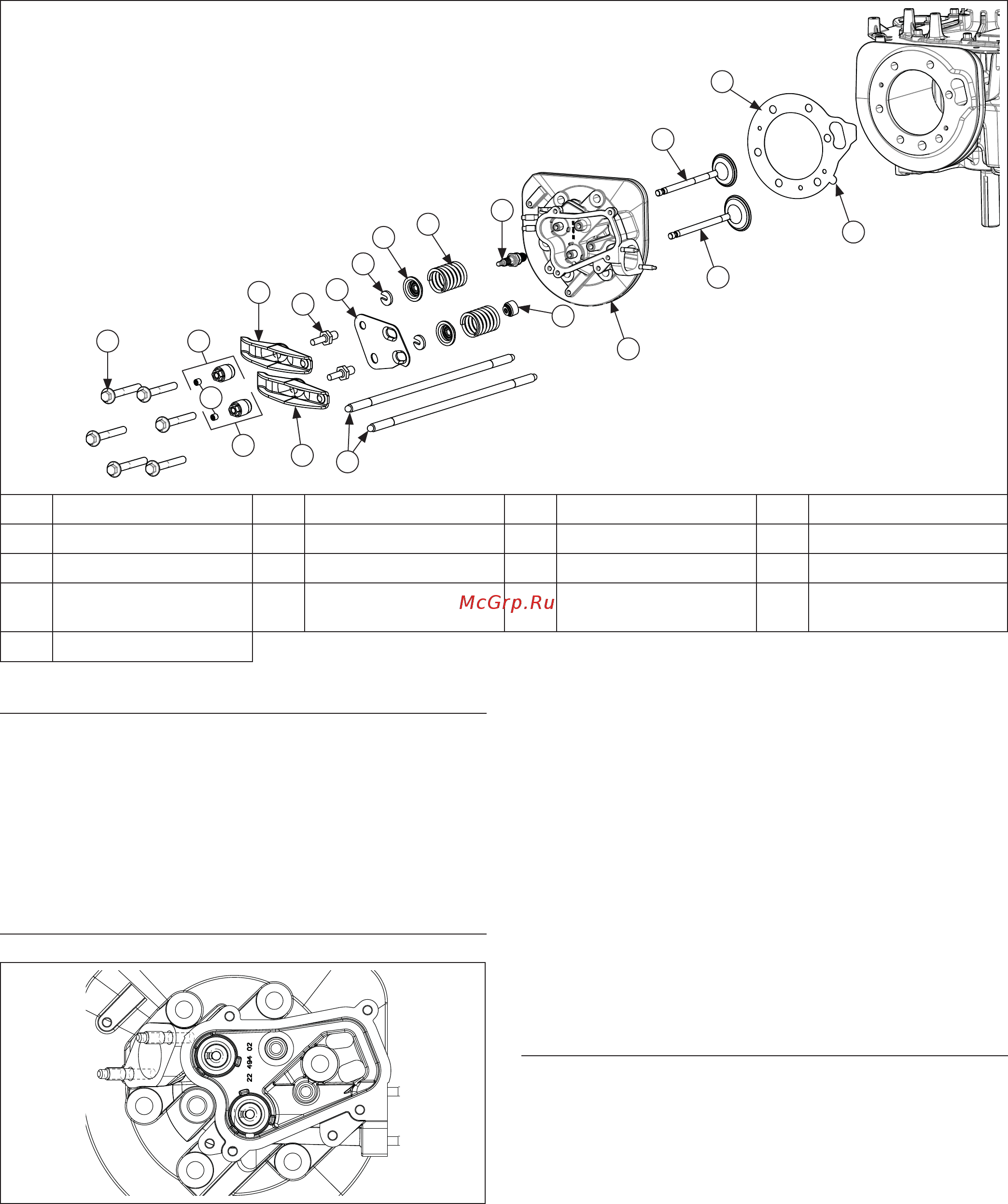

Install Cylinder Head
M
A
F
C
D
B
P
E
G
H
I
M
K
J
L
N
N
O
Q
A Cylinder Head Gasket B Exhaust Valve C Intake Valve D Cylinder Head
E Spark Plug F Valve Stem Seal G Valve Spring H Valve Spring Cap
I Retainer Lock J Push Rod Guide Plate K Rocker Stud L Push Rod
M Rocker Arm N
Rocker Pivot
Assembly
O Set Screw P Cylinder Head Screw
Q Tab
Assemble Cylinder Head
Prior to assembly, lubricate all components with engine
oil, including tips of valve stems and valve guides. Using
a valve spring compressor, install following items in
order listed.
● Valve spring seal (intake valve only).
● Intake and exhaust valves.
● Valve springs.
● Valve spring caps.
● Valve spring retainer locks.
Install Cylinder Head
Cylinder Head Torque Sequence
5
1
4
3
2
6
NOTE: Do not reuse cylinder head screws or gasket,
always replace with new parts.
NOTE: If crankshaft has not been turned since
installation of crank gear, turn it one (1) complete
revolution. This will set piston at top dead center
(TDC) of compression stroke, for proper valve
lash adjustment later.
1. Check to make sure there are no nicks or burrs on
sealing surfaces of cylinder head or crankcase.
2. Install a new cylinder head gasket with tab on gasket
in 4 o'clock position.
3. Install cylinder head and start six screws.
4. Using torque sequence shown, torque cylinder head
screws in two stages; initially to 24.4 N·m
(216 in. lb.), and fi nally to 42.7 N·m (378 in. lb.).
Install Rocker Arms and Push Rods
NOTE: Installation and seating of push rods into cam
lever recesses during this sequence is critical.
Position engine with cylinder head up if possible,
to aid with proper installation of push rods and
rocker arms, and adjusting valve lash.
NOTE: If being reused, push rods should always be
installed in their original position.
