Specifi cations
KohlerEngines.com 32 690 12 Rev. --

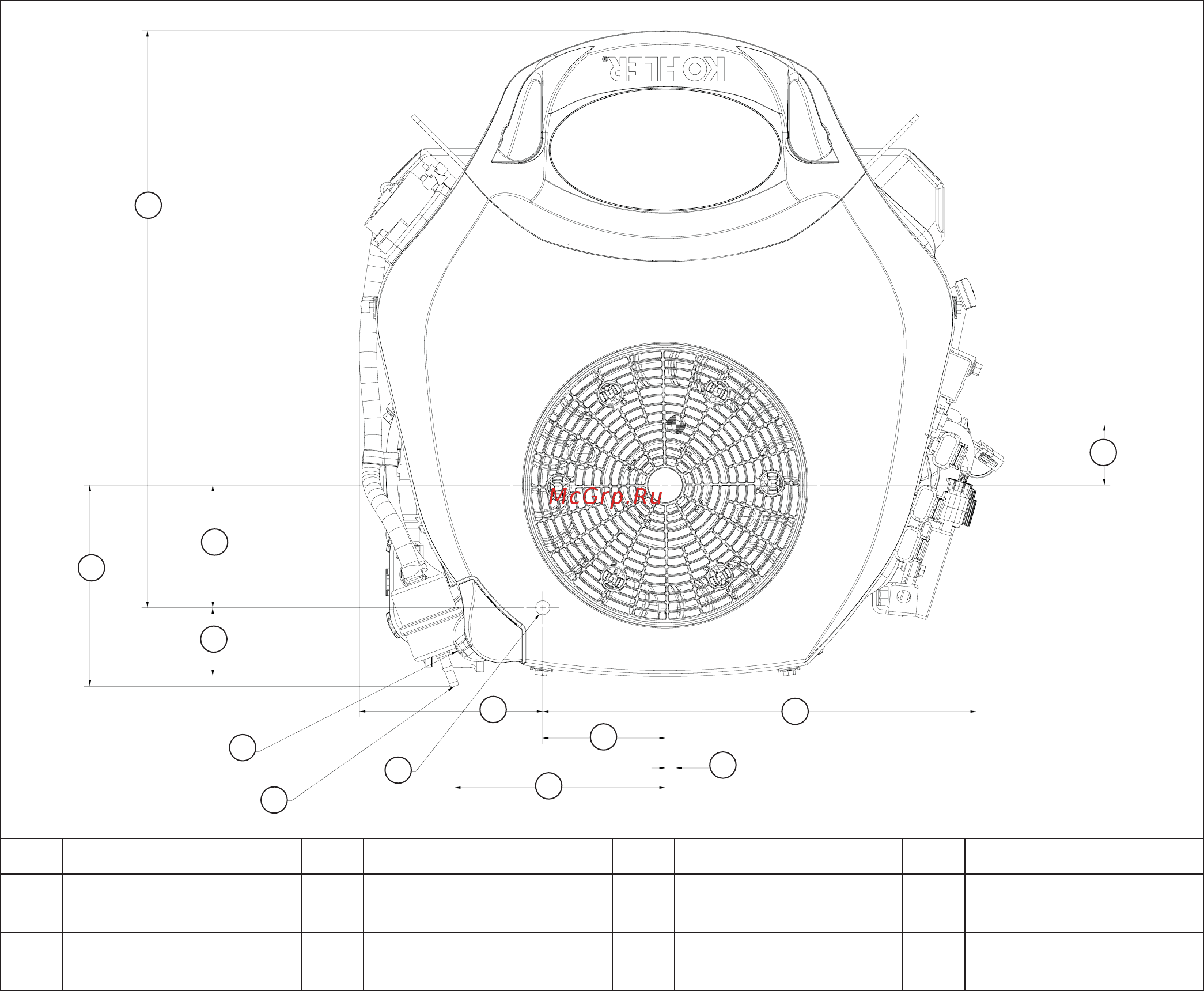

Engine Dimensions with High Performance Air Cleaner-Flywheel Side
F
E
G
H
I
K
A
B
D
C
J
C
L
A 423.0 mm (16.65 in.) B 147.4 mm (5.80 in.) C 89.8 mm (3.54 in.) D 50.1 mm (1.97 in.)
E
Oil Fill and Dipstick
(Yellow)
F
Fuel Line Connection
Point
G Mounting Hole "A" H 154.4 mm (6.08 in.)
I 134.4 mm (5.29 in.) J
8.0 mm (0.31 in.)
Center of Gravity
K 317.9 mm (12.52 in.) L
44.3 mm (1.74 in.)
Center of Gravity
