12
Specifi cations
KohlerEngines.com 32 690 12 Rev. --

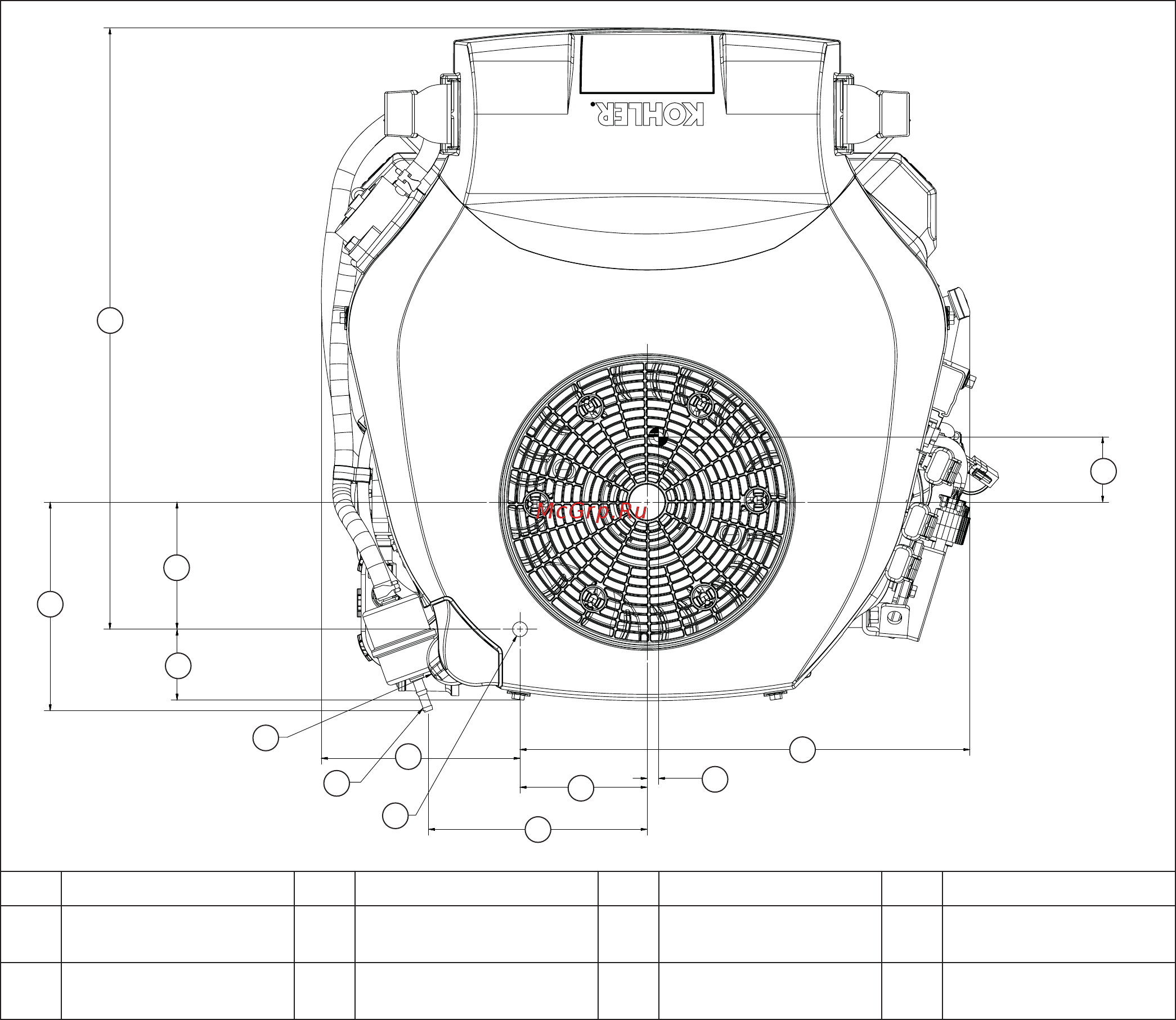

Engine Dimensions with PRO Performance Air Cleaner-Flywheel Side
F
E
G
H
J
K
A
B
D
C
I
C
L
A 424.7 mm (16.72 in.) B 147.4 mm (5.80 in.) C 89.8 mm (3.54 in.) D 50.1 mm (1.97 in.)
E
Oil Fill and Dipstick
(Yellow)
F
Fuel Line Connection
Point
G 140.4 mm (5.53 in.) H Mounting Hole "A"
I 154.4 mm (6.08 in.) J
8.1 mm (0.32 in.)
Center of Gravity
K 317.9 mm (12.52 in.) L
46.1 mm (1.81 in.)
Center of Gravity
