Specifi cations
KohlerEngines.com 32 690 12 Rev. --

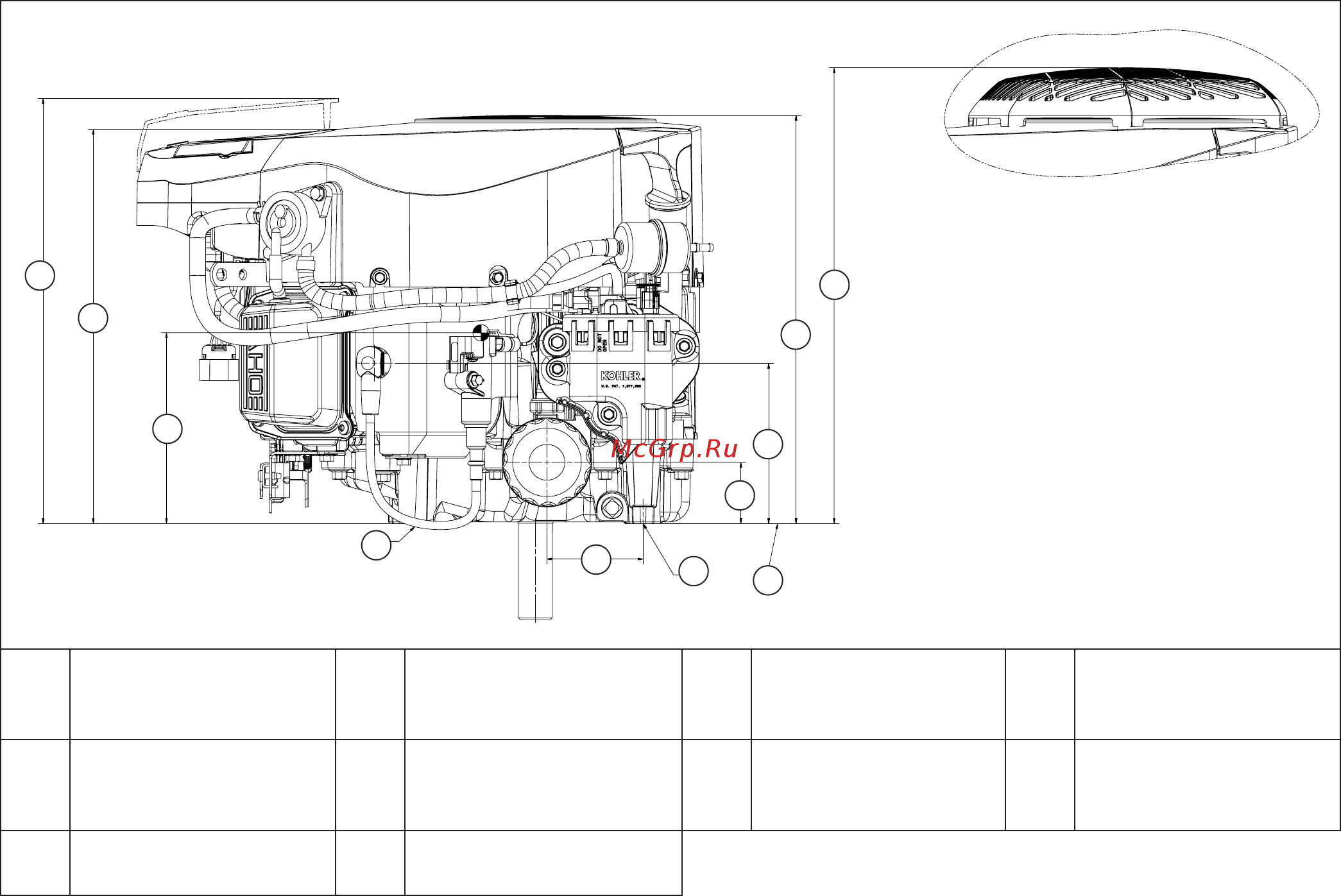

Engine Dimensions with Low Profi le Air Cleaner-Oil Filter Side
A
B
C
D
E
F
G
H
I
J
D
A
355.1 mm (13.98 in.)
Air Cleaner
Removal
B
329.1 mm (12.96 in.)
Top of Air Cleaner
C
159.4 mm (6.28 in.)
Center of Gravity
D
Engine Mounting
Surface
E
80.3 mm (3.16 in.)
Oil Filter
F Mounting Hole "A" G
51.2 mm (2.02 in.)
Oil Filter
H
134.0 mm (5.28 in.)
Spark Plug
Center Line
I 340.9 mm (13.42 in.) J
380.7 mm (14.99 in.)
Optional Fixed Guard
