Specifi cations
32 690 12 Rev. -- KohlerEngines.com

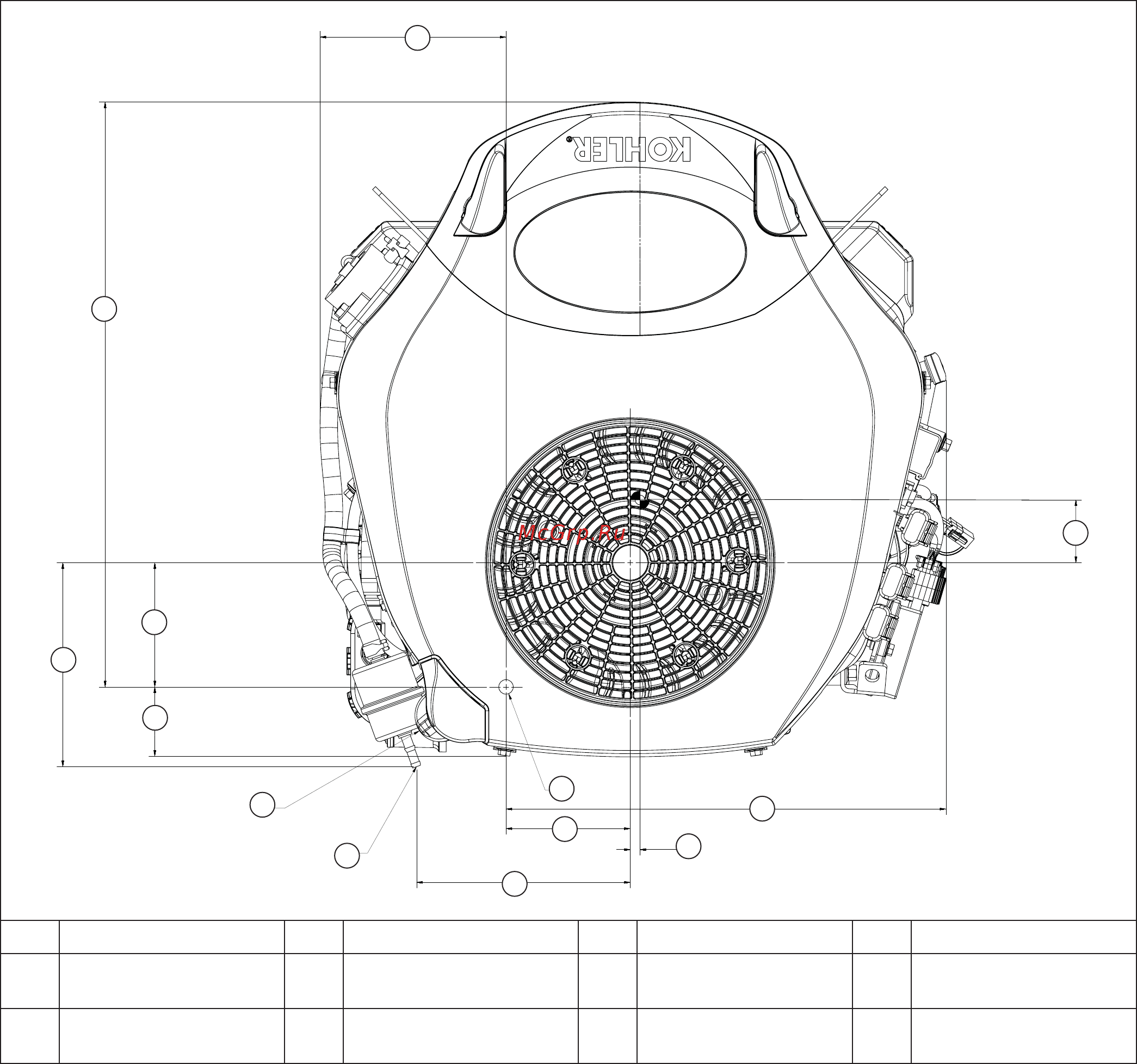

Engine Dimensions with Low Profi le Air Cleaner-Flywheel Side
F
E
G
H
J
K
A
B
D
C
I
L
D
A 140.4 mm (5.53 in.) B 423.0 mm (16.65 in.) C 147.4 mm (5.80 in.) D 89.8 mm (3.54 in.)
E 50.1 mm (1.97 in.) F
Oil Fill and Dipstick
(Yellow)
G
Fuel Line
Connection Point
H 154.4 mm (6.08 in.)
I Mounting Hole "A" J
7.0 mm (0.28 in.)
Center of Gravity
K 317.9 mm (12.52 in.) L
45.3 mm (1.78 in.)
Center of Gravity
