2. Tighten two screws on each side.
Use any of binding screws (4 mm × 3
mm), binding screws (5 mm × 6 mm)
or flush surface screws (5 mm × 6 mm),
depending on the shape of screw holes
in the bracket.
Fastening the front panel
If you do not plan to detach the front
panel, the front panel can be fastened
with supplied screws and holder.
• Fix the front panel to the unit
using screws and holder after
removing the trim ring.
Holder
Screw
Screw
Screw
Dashboard or
Console
Factory radio mounting
bracket
Before installing the unit
• Remove the trim ring and the
mounting sleeve.
Extend top and bottom of the trim ring
outwards to remove the trim ring. And
then loosen the screws (2 mm × 3 mm)
to remove the mounting sleeve.
• When reattaching the trim ring, push
the trim ring onto the unit until it
clicks after reattaching the mounting
sleeve. (If the trim ring is attached
upside down, the trim ring will not fit
properly.)
DIN Front-mount
1. Decide the position of the side
brackets.
• When installing in a shallow space,
change the position of side brackets
(small). In this case, stick concealing
tape on parts that protrude from the
dashboard.
• If you prefer an off-set installation in
which the front panel is pushed fur-
ther back, when there is a space
available at the back of the unit, use
the side brackets (large).
Flush surface screw
(
5 mm
×
6
mm
)
S
id
e
b
rac
k
et (
l
ar
g
e
)
Flush surface screw (5 mm × 6 mm)
Side bracket (small)
Concealing tape
M
ount
i
n
g
s
l
eev
e
Tr
i
m r
i
n
g
Screw
2 mm
×
3 mm
)
Installation ENGLISH
Note:
• Check all connections and systems before final
installation.
• Do not use unauthorized parts. The use of
unauthorized parts may cause malfunctions.
• Consult with your dealer if installation requires
drilling of holes or other modifications of the
vehicle.
• Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result
of a sudden stop.
• Do not install the display where it may (i)
obstruct the driver’s vision, (ii) impair the perfor-
mance of any of the vehicle’s operating systems
or safety features, including air bags, hazard lamp
buttons or (iii) impair the driver’s ability to safely
operate the vehicle.
• The semiconductor laser will be damaged if it
overheats. Install this unit away from hot places
such as near the heater outlet.
• Optimum performance is obtained when the unit
is installed at an angle of less than 30°.
• The cords must not cover up the area shown in
the figure below. This is necessary to allow the
amplifires to radiate freely.
• Make sure you leave enough gap between the
dashboard and the LCD panel of this unit so the
LCD panel can be opened and closed without
contacting with the dashboard.

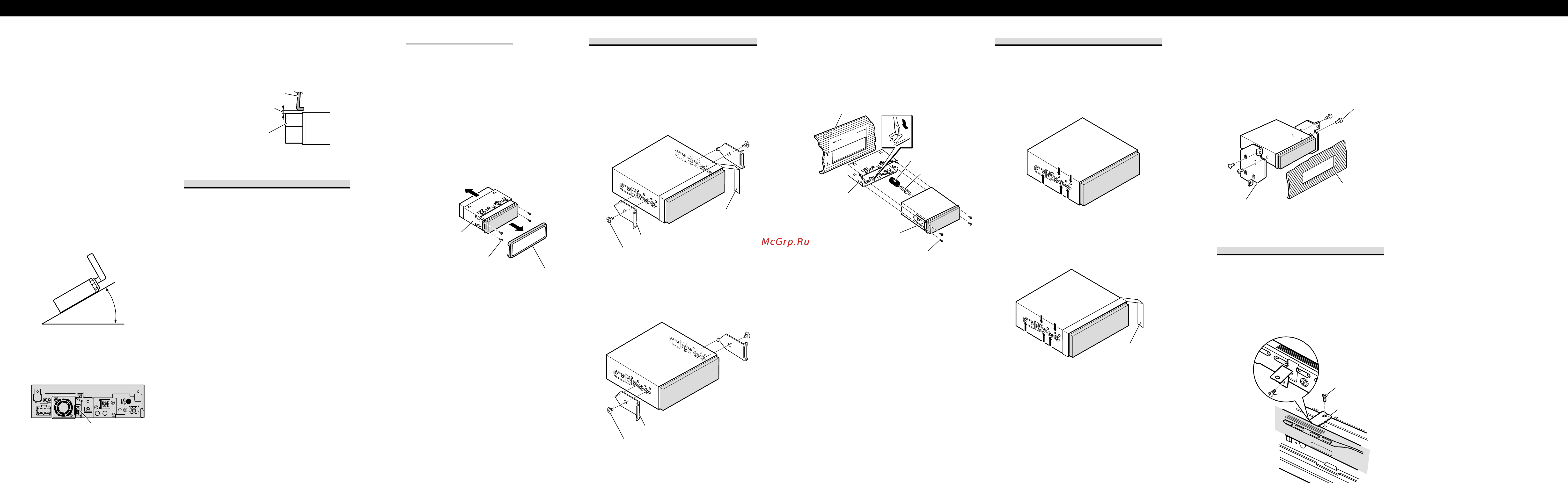

DIN Front/Rear-mount
This unit can be properly installed
either from “Front” (conventional DIN
Front-mount) or “Rear” (DIN Rear-
mount installation, utilizing threaded
screw holes at the sides of unit chassis).
For details, refer to the following illus-
trated installation methods.
D
as
hb
oar
d
Leave
g
a
p
LCD
p
ane
l
Do not cover this area.
30°
2. Install the unit into the dash-
board.
Insert the mounting sleeve into the
dashboard. And then secure the mount-
ing sleeve by using a screwdriver to
bend the metal tabs (90°) into place.
DIN Rear-mount
1. Determine the appropriate posi-
tion where the holes on the
bracket and the side of the unit
match.
*1 Use binding screws (4 mm × 3 mm) only.
• When installing in a shallow space,
use the following screw holes. In this
case, stick concealing tape on parts
that protrude from the dashboard.
*1
*1
Concealing tape
*
1
*
1
182
53
Rubber bush
Screw
Dashboard
Side bracket
Screw (2 mm × 3 mm)
Mounting sleeve
