KSB MegaCPK 050-032-160.1 [18/30] Centrifugal pumps with shaft seal
![KSB MegaCPK 050-032-160 [18/30] Centrifugal pumps with shaft seal](/views2/1603783/page18/bg12.png)

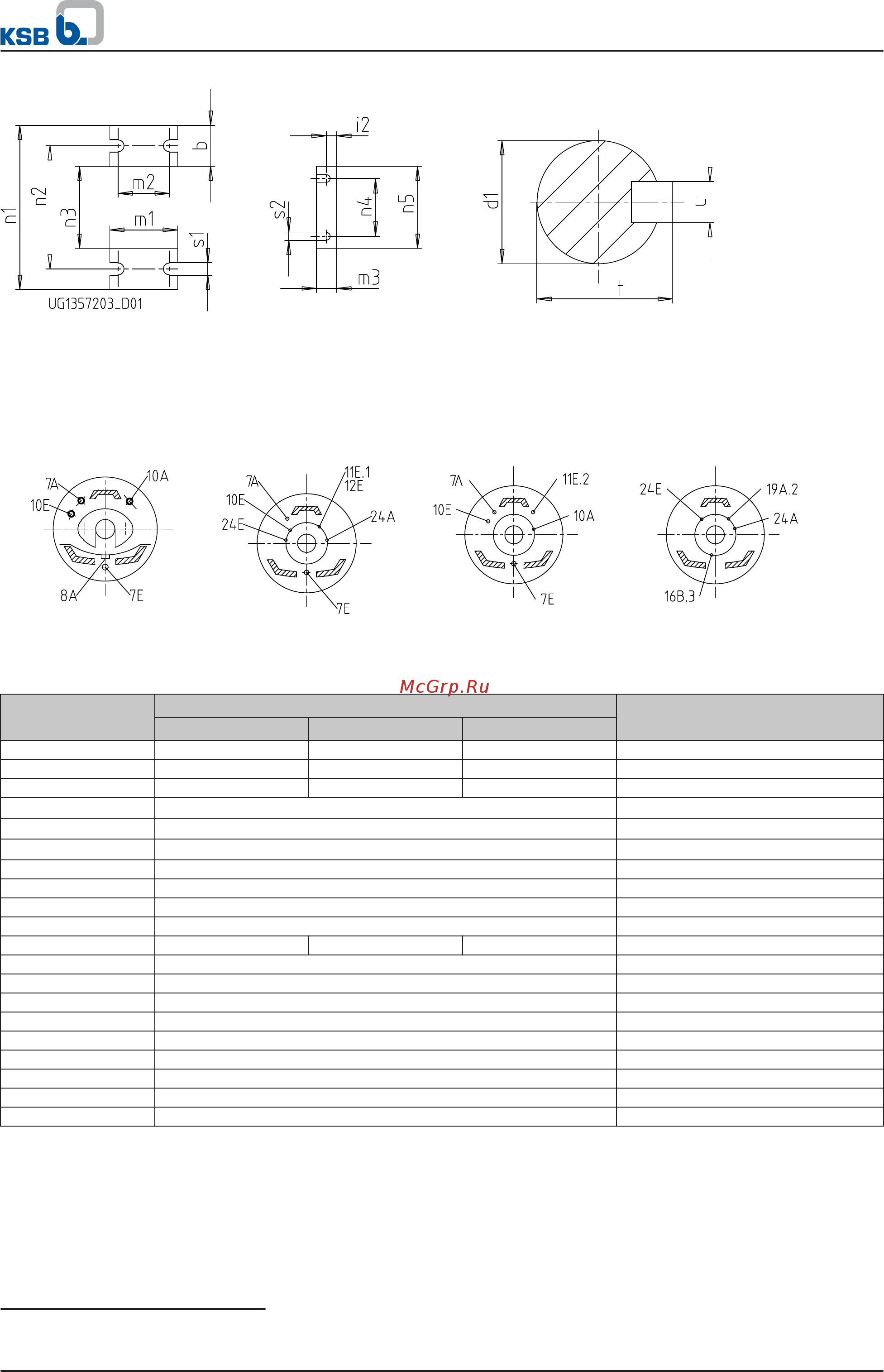

Dimensions of pump feet and shaft end
Gland packing Single mechanical seal Double mechanical seal Heatable single mechanical
seal
Shaft seal connections
Connections Northern Asia / Europe
Connection Discharge nozzle Description
≤ DN 50 DN 65 - DN 80 ≥ DN 100
1 M.1 G1/4 G3/8 G1/2 Pressure gauge
1 M.2 G1/4 G3/8 G1/2 Pressure gauge
6B G1/4 G3/8 G1/2 Fluid drain
7 E/A
19)
Ø 12 (CS40: Ø 8) Cooling fluid IN/OUT
7 E2/A2
19)
G1 (CS40: G3/4) Cooling fluid IN/OUT
8 A
19)
Rp1/2 Leakage drain
10 E/A G1/4 Barrier fluid IN/OUT
11 E.1 G1/4 Flushing liquid IN
11 E.2 G1/4 Flushing liquid IN
12 E G1/4 Circulation liquid IN
12 A G1/4 G3/8 G1/2 Circulation liquid OUT
13 B G3/8 Oil drain
13 D Ø 20 Vent plug
16 B.1 G1/4 Condensate drain
16 B.3 G1/4 Condensate drain
19 E.1 G3/8 Heating medium IN
19 A.1 Ø 12 (CS40: Ø 8) Heating medium OUT
19 A.2 G3/8 Heating medium OUT
24 E/A G1/4 Quench fluid IN/OUT
638 Rp1/4 Constant level oiler
19)
Optional
Centrifugal Pumps with Shaft Seal
Standardised Chemical Pumps
18
MegaCPK
