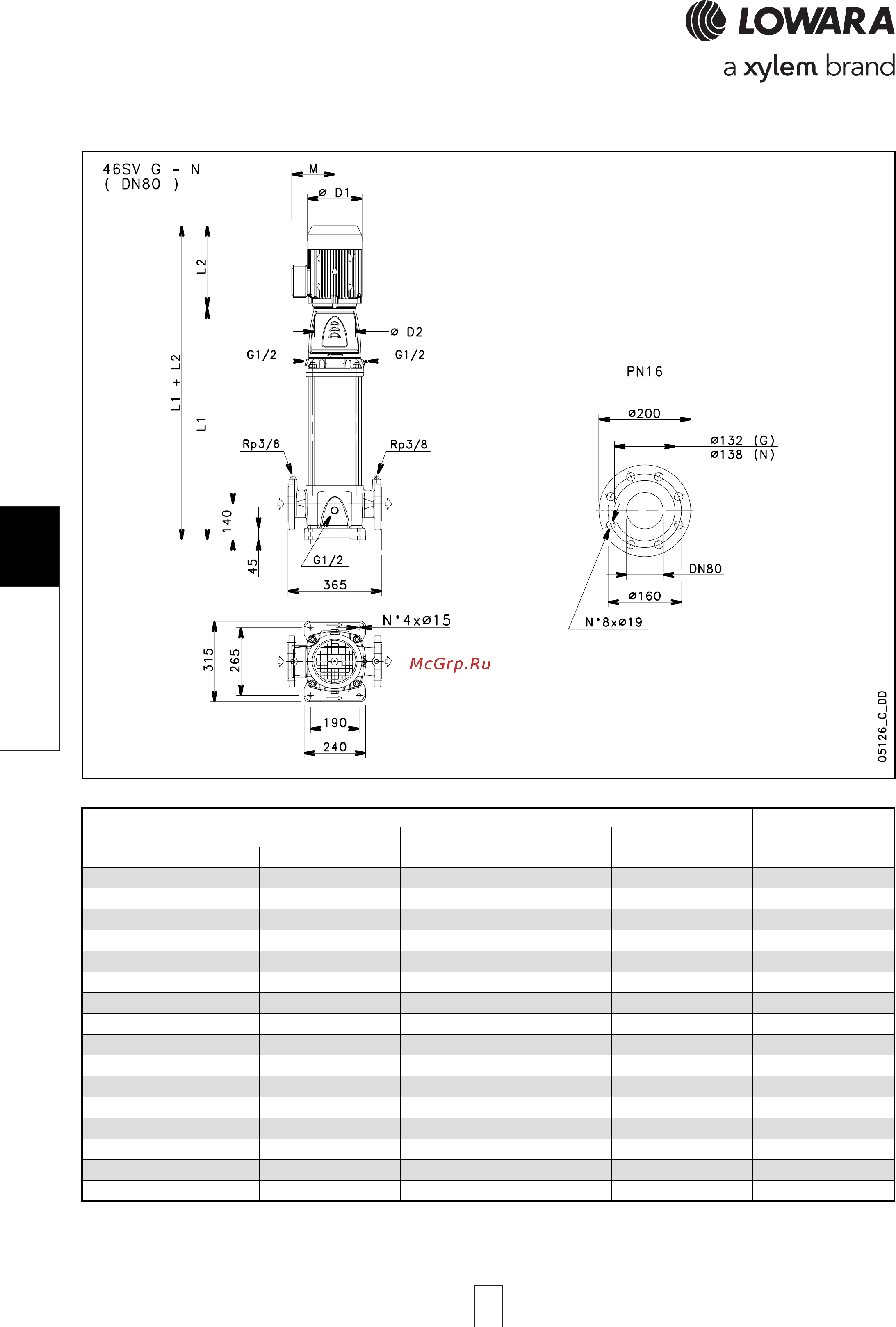

DIMENSIONI E PESI SERIE 46SV 4 poli 60 Hz
PUMP
TYPE ELECTRIC
kW SIZE L1 L2 D1 D2 M PN PUMP PUMP
46SV2..4.. 1,5 90 604 298 174 164 134 16 61 84
46SV3..4.. 2,2 100 679 322 214 164 168 16 65 94
46SV4..4.. 3 100 754 353 214 164 168 16 69 101
46SV5..4.. 4 112 829 398 214 164 168 16 73 127
46SV6..4.. 5,5 132 924 405 256 300 191 16 82 144
46SV7..4.. 5,5 132 999 405 256 300 191 16 85 147
46SV8..4.. 7,5 132 1074 405 256 300 191 16 89 156
46SV9..4.. 7,5 132 1149 405 256 300 191 16 93 160
46SV10..4.. 7,5 132 1224 405 256 300 191 16 97 164
46SV11..4.. 11 160 1334 494 313 350 240 16 109 235
46SV12..4.. 11 160 1409 494 313 350 240 16 113 239
46SV13..4.. 11 160 1484 494 313 350 240 16 117 243
4
6s
v-4
p60
-
e
n
btd
MOTOR DIMENSIONS (mm) WEIGHT kg
46SV SERIES46SV SERIES
46SV SERIES46SV SERIES
46SV SERIES
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS A
T 60 HzT 60 Hz
T 60 HzT 60 Hz
T 60 Hz
, 4-POLE, 4-POLE
, 4-POLE, 4-POLE
, 4-POLE
