![Lowara ESHE 32-250/07/X45RSNA [28/120] Esh series hydraulic performance range at 50 hz 2 poles](/img/pdf.png)
Lowara ESHE 32-250/07/X45RSNA [28/120] Esh series hydraulic performance range at 50 hz 2 poles
![Lowara ESHE 40-125/22/P25HSNA [28/120] Esh series hydraulic performance range at 50 hz 2 poles](/views2/1614666/page28/bg1c.png)
28

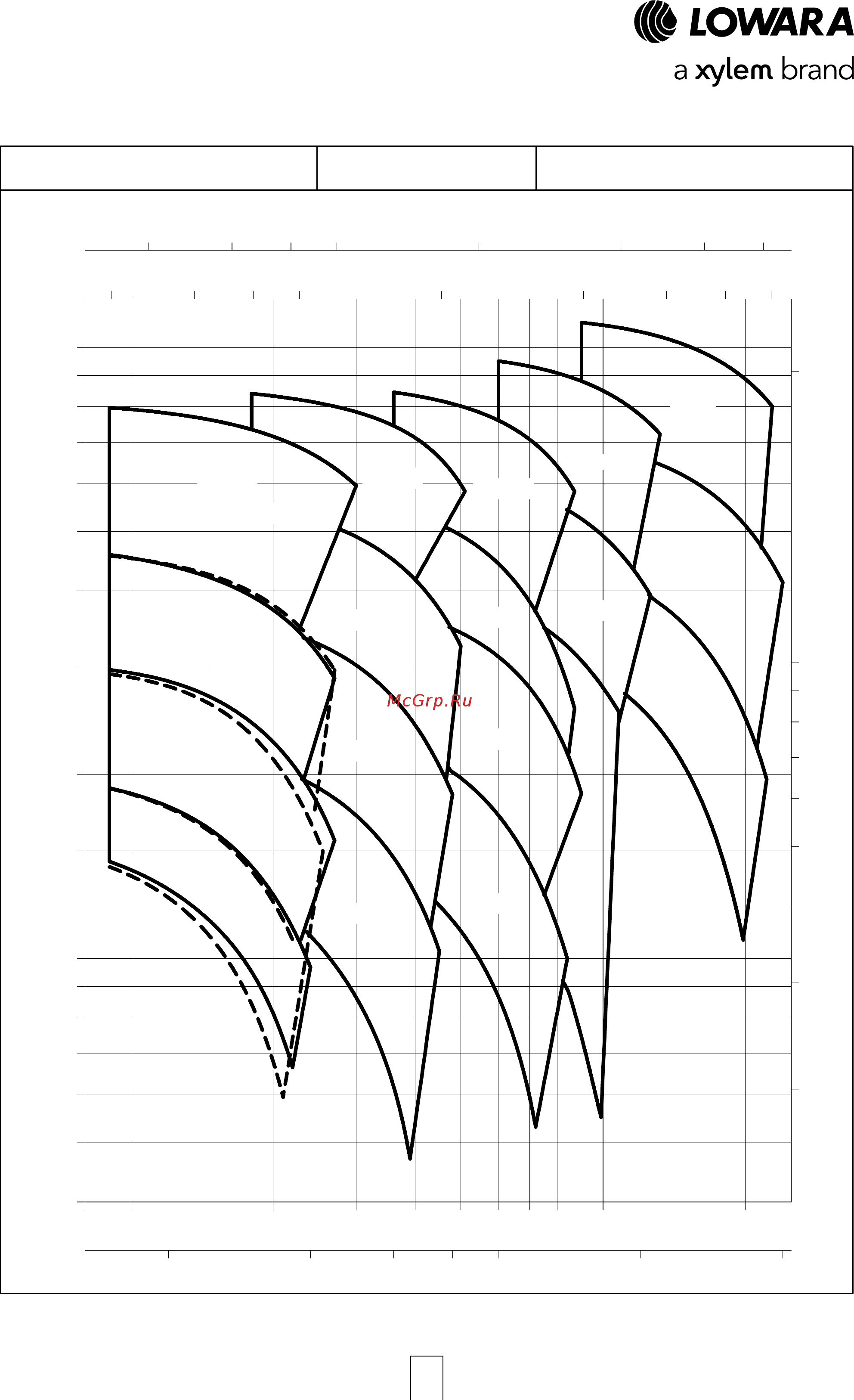

ESH SERIES
HYDRAULIC PERFORMANCE RANGE AT 50 Hz, 2 POLES
Q [m3/h]
8 20 30 40 50 60 70 80 20010 100
H [m]
4
5
6
7
8
9
15
20
30
40
50
60
70
80
90
10
100
Q [US gpm]
40 60 80 200 400 600 800100 1000
H [ft]
20
30
40
50
60
70
80
90
200
300
100
Q [Imp gpm]
40 60 80 200 400 600 800100
Q [l/min]
200 400 600 800 2000 40001000
04909_G_CH
∼ 2900 [rpm]
ISO 9906:2012 - Grade 3B
ESH
40-250
50-200
50-250
65-250
65-160
50-160
32-160
32-125
32-200
32-250
40-125
40-160
40-200
50-125
80-160
80-200
80-250
65-200
25-125
25-160
25-200
25-250
- - - - 25 SERIES
