3.Installing the LED TV

Installing the Stand

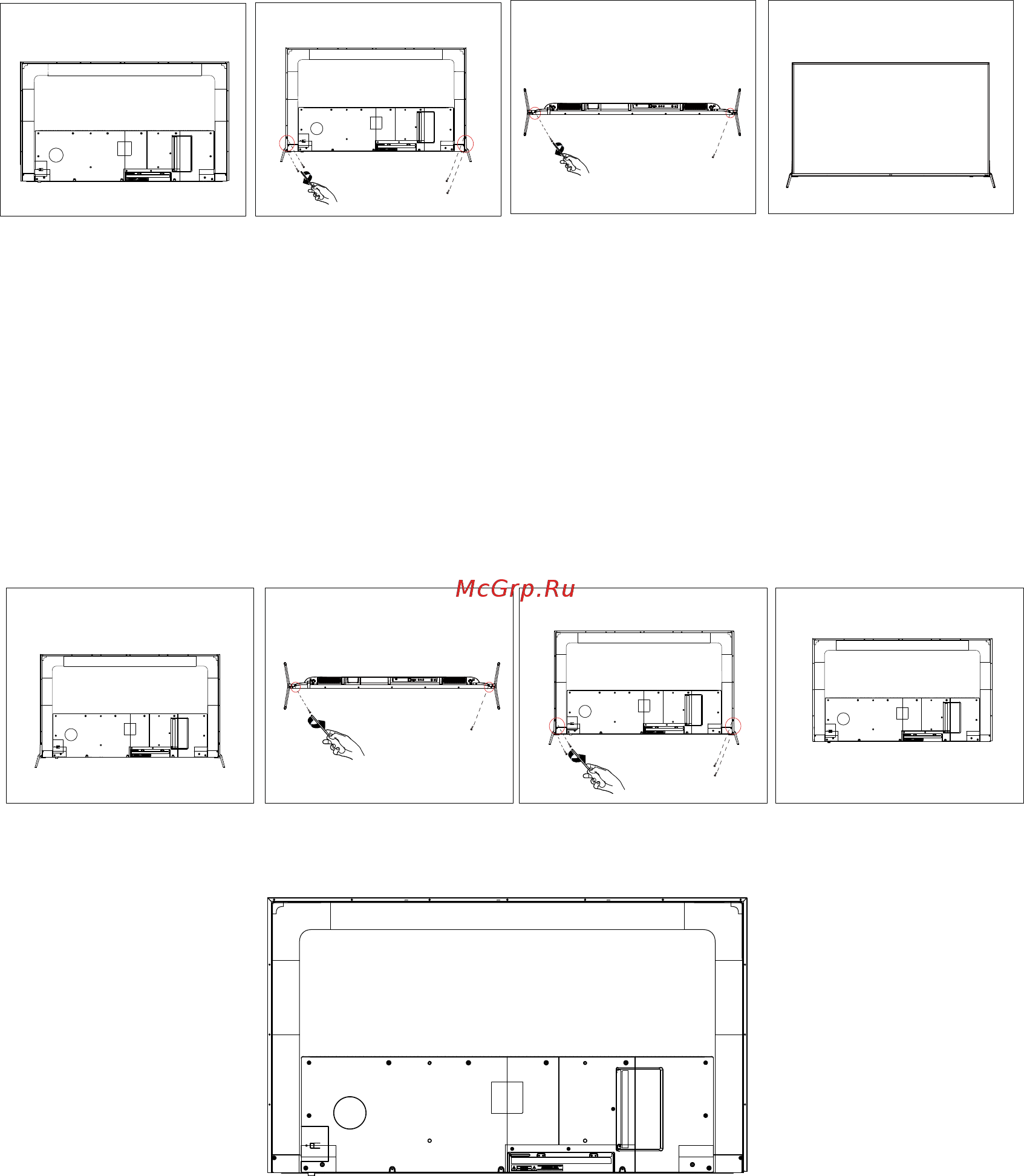

Figure 1 Figure 2 Figure 3

Figure 4

Figure 1 Figure 2 Figure 3

Figure 4

Disconnecting the Stand

Mounting on a Wall

1. Place the TV set on soft cloth or cushion with face down.Place the base in position as shown.

(see Figure 1)

2. Fix the bracket with stand to the bottom of the TV with the 6 screws. (see Figure 2&3)

3. Stand the TV up. (see Figure 4)

1. Lay the 󳭗󰝧󵍢󵬡󵙯󰝢󰝵󴡣󵍦󰝸󵁵󴼡󵭩󴰡󳍆󲬡󵩤󵥦󴱯󰝧󴡤󴰡󴭰󵹯󱕕o prevent the TV from being

scratched, put a piece of soft cloth on the table on which the screen will be set. (see Figure 1)

2. Then remove 6 screws of the stand as show. (see Figure 2&3)

3. Then you successfully removed the base . (see Figure 4)

CAUTION:

• Remove the stands before installing the TV on a wall mount bracket (not supplied) by

performing the stand attachment in reverse.

• The distance between the holes is 200 x 400 mm in width and height. Tighten the screws

󰽎󱵹󱠱󱌡󵕰󵬡󵩶󵝱󵍪󴱥󰜪󰝧󵁳󵑭󶀡󵭰󰝱󵥦󵵦󵕵󰝵󴽦TV from tilting forward. Do not over tighten.
