10Upad

English

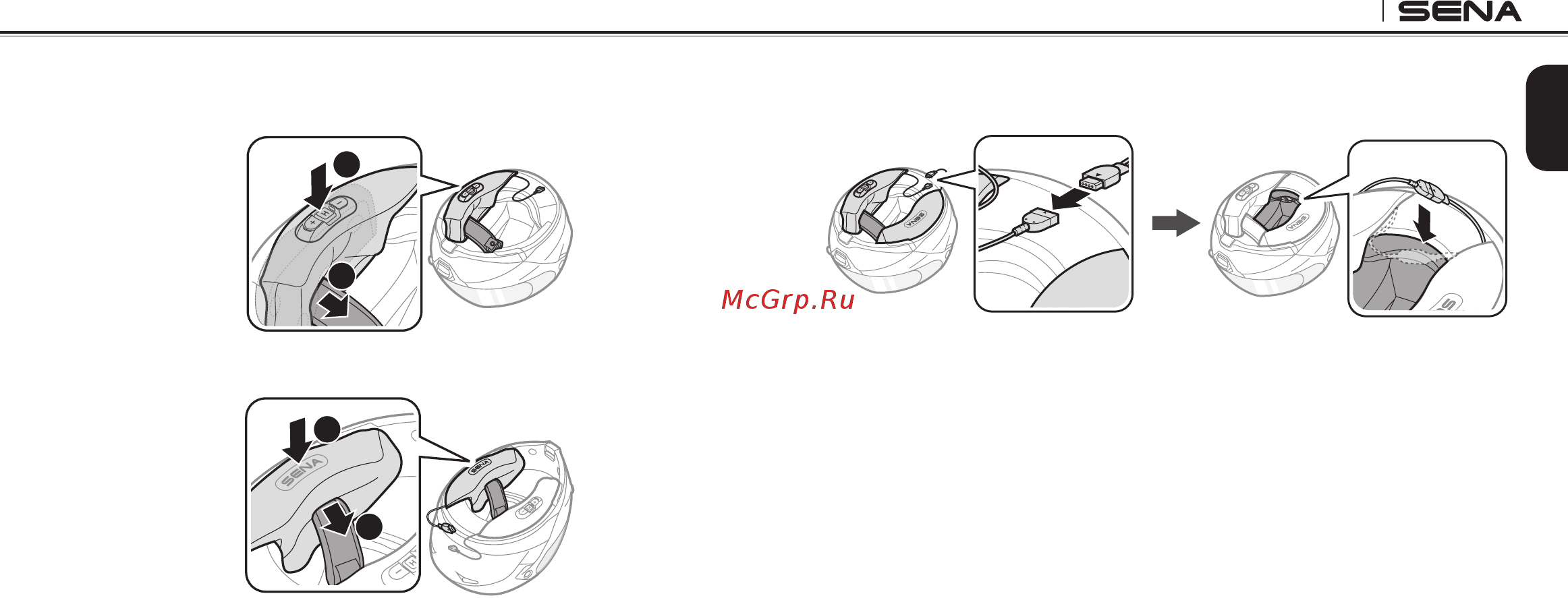

1. Remove the cheek pads from your HJC helmet.

2. Install the left 10Upad on the left side of the helmet.

3. Install the right 10Upad on the right side of the helmet.

4. Connect the connection cables and store it behind the internal

padding of the helmet.
