MACHINE SET UP

Pre-operation checks

1. Sweep or dust mop the surface to be cleaned.

2. Check that squeegee is properly installed.

3. Lower the squeegee (33) with the lever (26).

4. Ensure that the AC cable is connected to a corresponding voltage power supply.

5. Check that brush/pad is properly installed.

Brush/Pad driver installation and disassembly

NOTE

Only install manually. If auto-installation, it will wear brush hub.

Make sure that the tanks are empty before disassembling the brush.

1. Disconnect the AC cable(16).

2. Lay down the machine in this position as indicated in the figure2, Pull up the lift lever (26) to raise

the squeegee up (33).

3. Mount the brush or pad driver onto the drive wheel hub and then rotate counterclockwise until it

locks, as indicated in the figure 3.

4. To remove the brush/pad, rotate the brush/pad clockwise until it is released from drive wheel hub.

WARNING

Do not turn on the machine in this position as below. The brush/pad could disengage and cause injury.

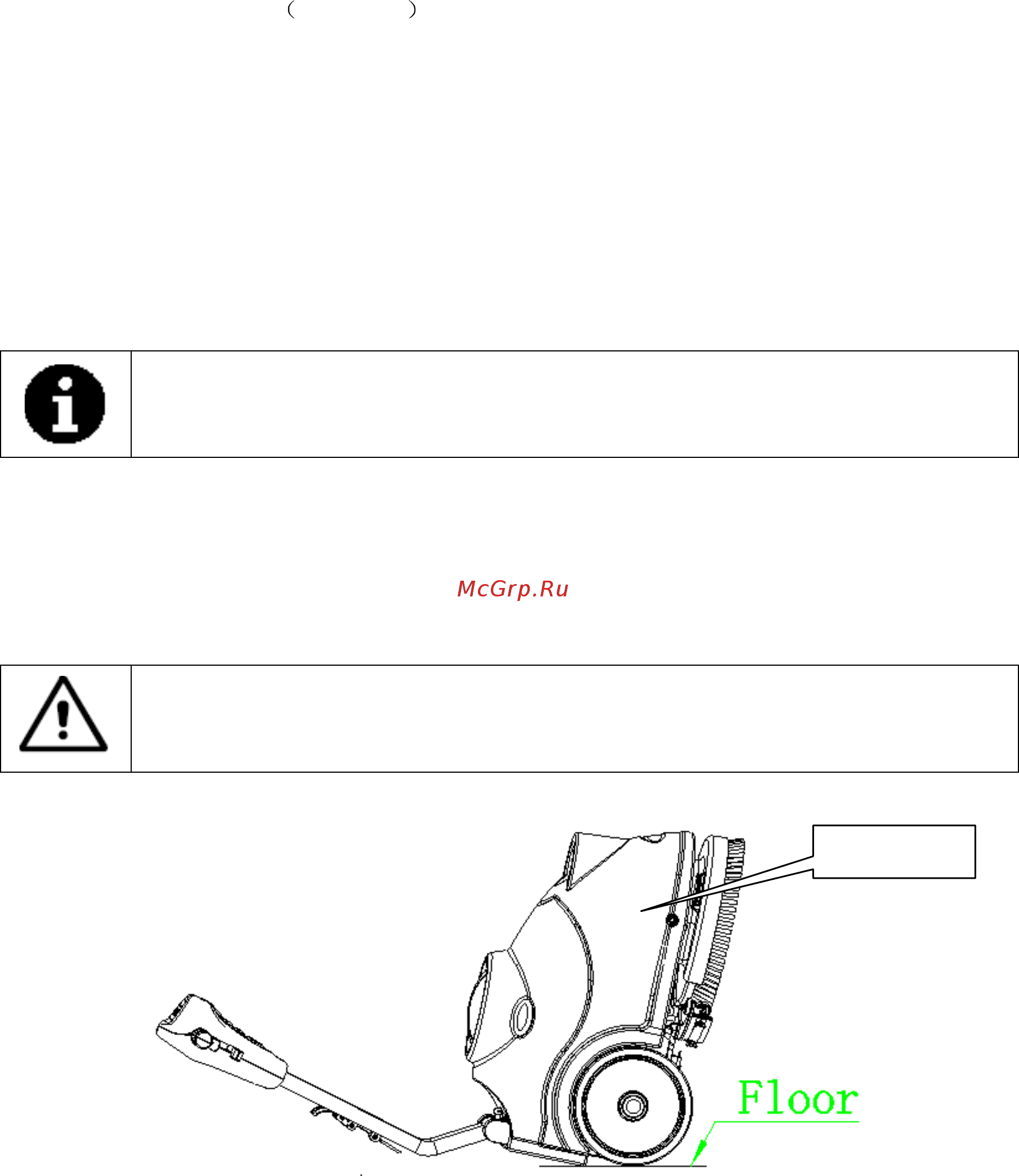

Figure 2
