2) Projection of inclined planes

The switch bar is in position OFF.

Press and hold during 2 seconds to switch on the laser.

Long press during 2 seconds to switch on required laser lines.

Switched on laser lines will flash each 5 seconds.

After all possible combinations of lines are switched on, the next long

press will switch off the laser level.

Long press during 2 seconds to switch on/off the pulse mode.

Attention! To increase operating time and avoid the risk of

unintentional blindness switch the laser on only when you are ready

to work.

If operated near objects or air streams with the temperature different

from the environment the laser line may tremble due to heterogeneity

of the atmosphere. The longer the distance, the more trembling of the

laser line can be observed.

The width of the laser line increases as soon as operating distance

increases as well. The layout should be made along the axis of the laser

line. For maximum accuracy, use the middle portion of the laser line.

It should be noted that the shape of the laser line on the object’s

surface (e.g., walls, ceilings, etc.) depends on the curvature and tilt of

the surface relative to the laser line.

Bluetooth

Bluetooth is always on by default. Switch on the laser level. Activate

Bluetooth at your portable device and start the app “XLiner Remote”.

Perform connection via Bluetooth. The app allows switching on and

off the laser lines and dots, receiver mode, as well as adjust the

brightness of the laser for optimal visibility and energy saving and

control the battery charge level without touching the laser level.

ACCURACY CHECK

Check of horizontal line

Use 2 parallel vertical walls which are located opposite each other at

a distance of 5 m.

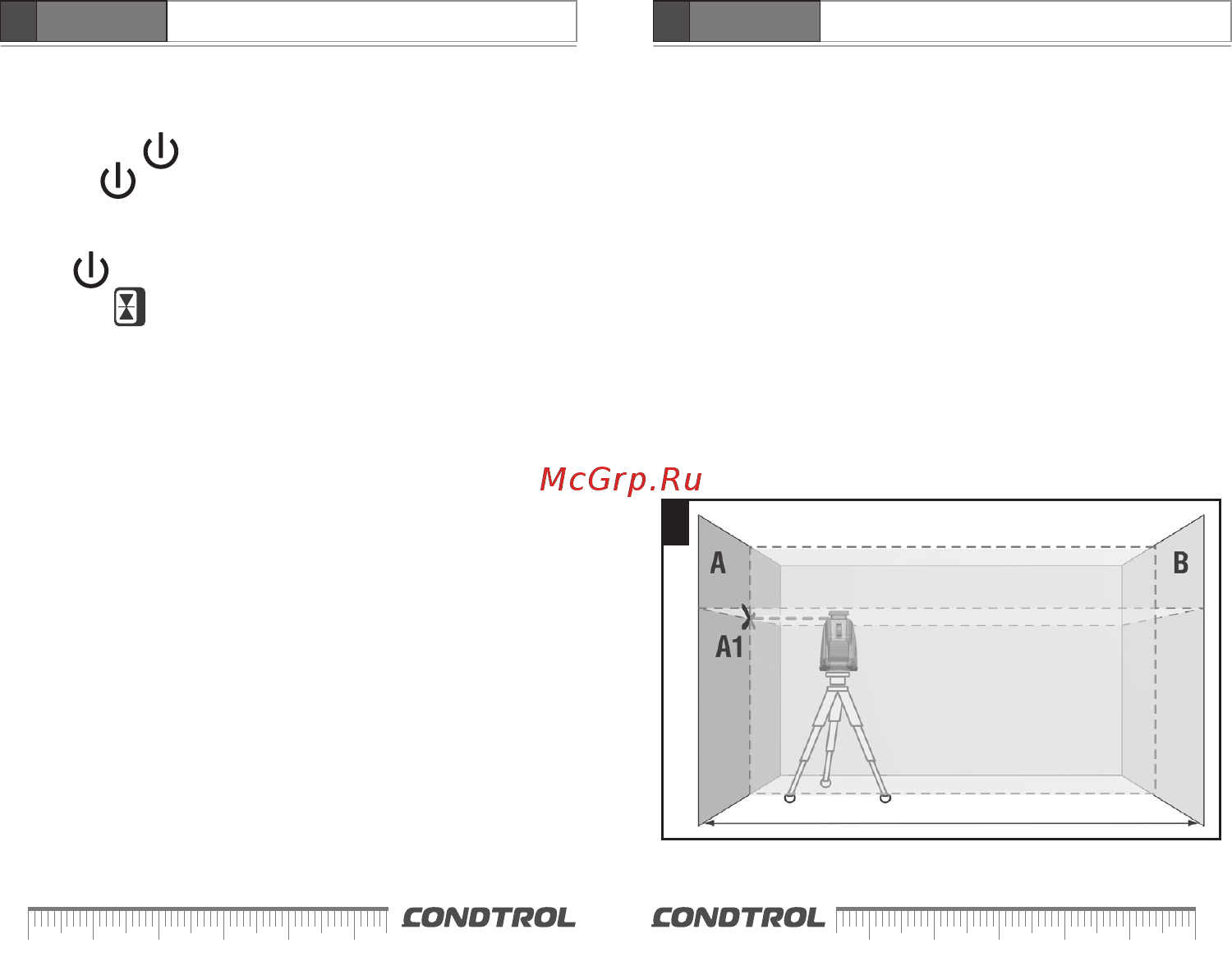

1. Set the instrument close to the wall A (see Fig. A). Switch on the

vertical and horizontal laser emitters, unlock the compensator. Turn

the instrument in such a way so that the laser lines intersecting each

other are projected on the near wall A opposite the instrument. Mark

the point where laser lines intersect each other as A1.
