user manual
CROSS
LINE LASER
EN
user manual
CROSS
LINE LASER
EN
XLiner Pento 360/360G XLiner Pento 360/360G
14 15

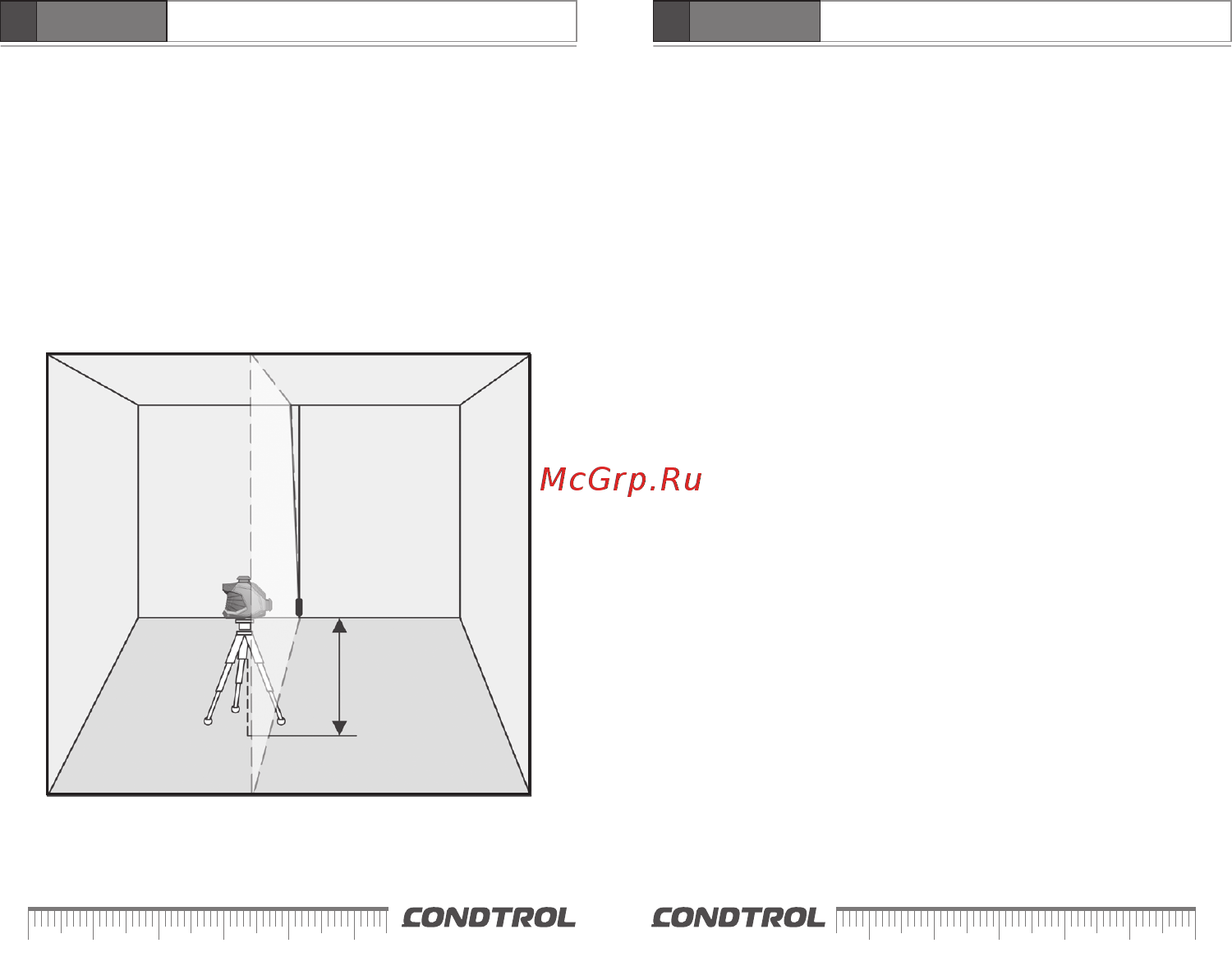

Check of vertical line
Use a plumb bob as a reference of a vertical line. Place the instrument
at distance of 1,5m from the plumb bob.
1. Unlock the compensator, switch on the vertical laser line and align it
with the low point of plumb bob.
2. If deviation between the laser line and the plumb bob line exceeds
±0.2 mm per 1m of the plumb bob length (for a 2.5m plumb bob
deviation shouldn’t exceed 0.5 mm) please contact service center.
3. Turn the instrument by 180° and align the vertical laser line with the
low point of plumb bob once again.
1,5m
CARE AND MAINTENANCE
Attention! The laser level is an accurate optical mechanic device
and requires careful handling. Check the accuracy before using.
Maintenance of the following recommendations will extend the life
of the device:
- Keep the laser level, spare parts and accessories out of the reach of
children and unauthorized people.
- Transport the laser level with locked compensator only.
- Protect the device from shock, falls, and strong vibrations; do not
allow moisture, construction dust, and foreign objects to get inside
the laser level.
- In case moisture gets inside the laser level, first of all, remove the
battery, and then contact the service center.
- Do not store or use the laser level for a long time in high humidity
conditions.
- Arrange the accuracy check of the laser level occasionally (see the
paragraph «Accuracy check»).
- Clean the laser level with a soft damp cloth. Do not use harsh
chemicals, cleaning solvents or detergents.
- Wipe the laser aperture with a soft, lint-free cloth with isopropyl
alcohol.
Failure to comply with the following rules may result in leakage of
the electrolyte from the batteries and damage the laser level:
- Remove the battery from the laser level if it is not used for a long
time.
- Do not leave discharged battery in the device.
- Do not heat the battery.
