ENGLISH (Original instructions)

4. The gap between the saw blade (4) teeth and the riving

knife should be around 3mm to 5mm (Fig.G)

5. R-tighten the mounting screw (f) and ﬁx the table insert

(20)

Warning! Ensure the machine is disconnected from

the power source. Never user the machine without

the table insert; Immediately replace the table insert

when worn or damaged

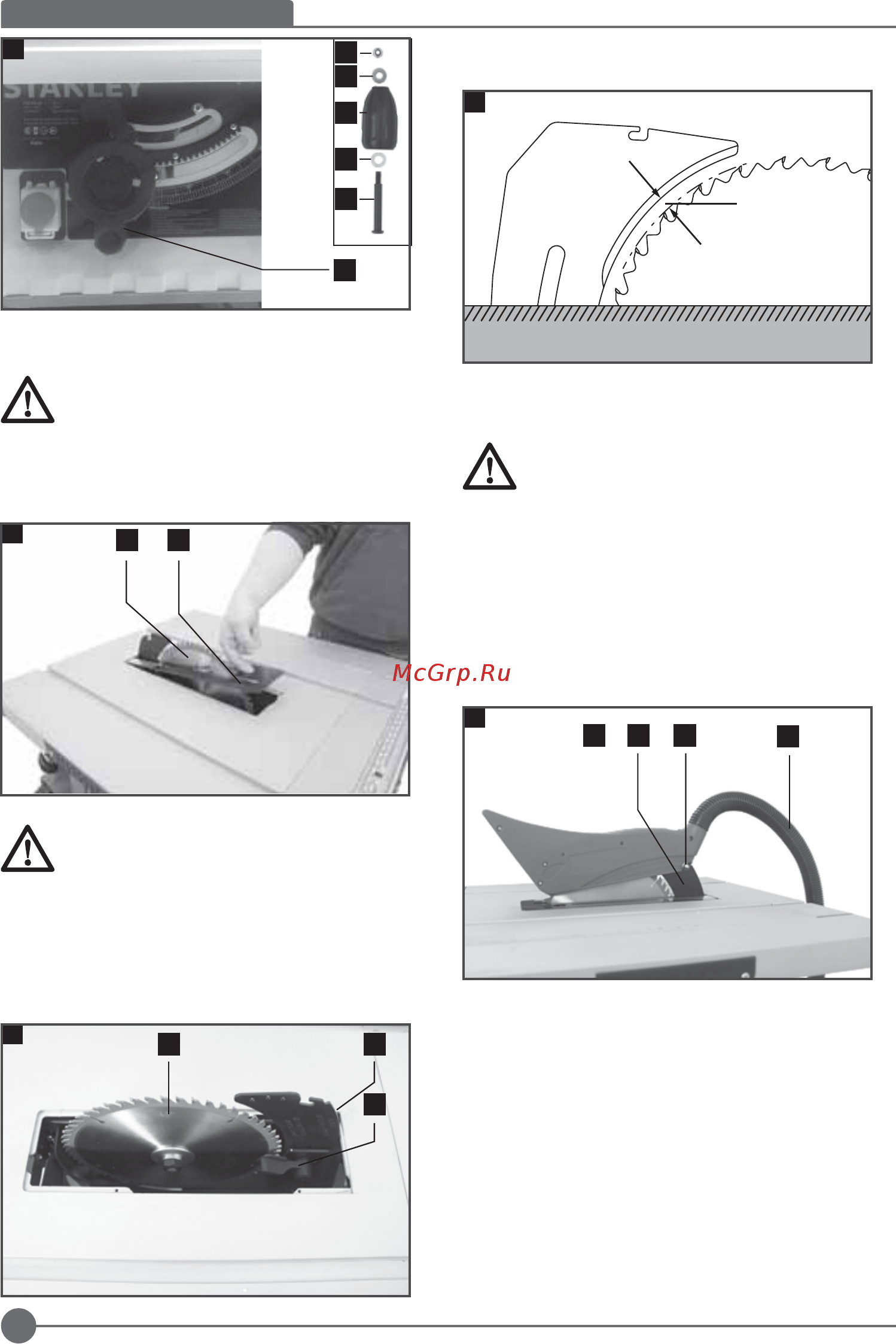

Saw blade guard assembly (Fig. H)

1. Fasten the saw blade guard (2) to the riving knife (5) with

the bolt (g).

2. Place the rear extraction hose (h) on the extraction

adapter on the saw blade guard (2).

3. Disassembly in reverse order.

Saw blade assembly/replacement (Fig. E, H, I)

1. Warning: Ensure the machine is disconnected from the

power source. Wear the safety gloves.

2. Disassemble the saw blade guard (2) (Fig. H.)

3. Remove the table insert (20) (Fig. E).

4. Loosen the nut by placing the spanner wrench (17) on the

nut and countering with another spanner wrench (17) on

the ﬂange (Fing. I).

Riving knife set-up (Fig. E, F, G)

Warning! Disconnect the mains cable! The setup

of the riving knife (3) must be checked before

each use.

1. Set the saw blade (4) to the max. cutting depth, put it at 00

position and lock it

2. Remove the table insert (20) (Fig. E)

Warning! For transport reasons, the riving knife

(3) was ﬁxed in the lower position before initial

commissioning. Only work with the machine if

the riving knife (3) is in the upper position.

Fitting the riving knife (3) in the upper position

is as follows:

3. Loosen the locking handle (f) and push the riving knife (3)

in the upper position (Fig.F)

204

max. 3-5 mm

2 3
