Husqvarna ST 424T [10/24] Repair parts control panel discharge chute

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO.

ST 424T

ST 424T (96193013201), PRODUCT NO. 961 93 01-32

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

05.19.006-A

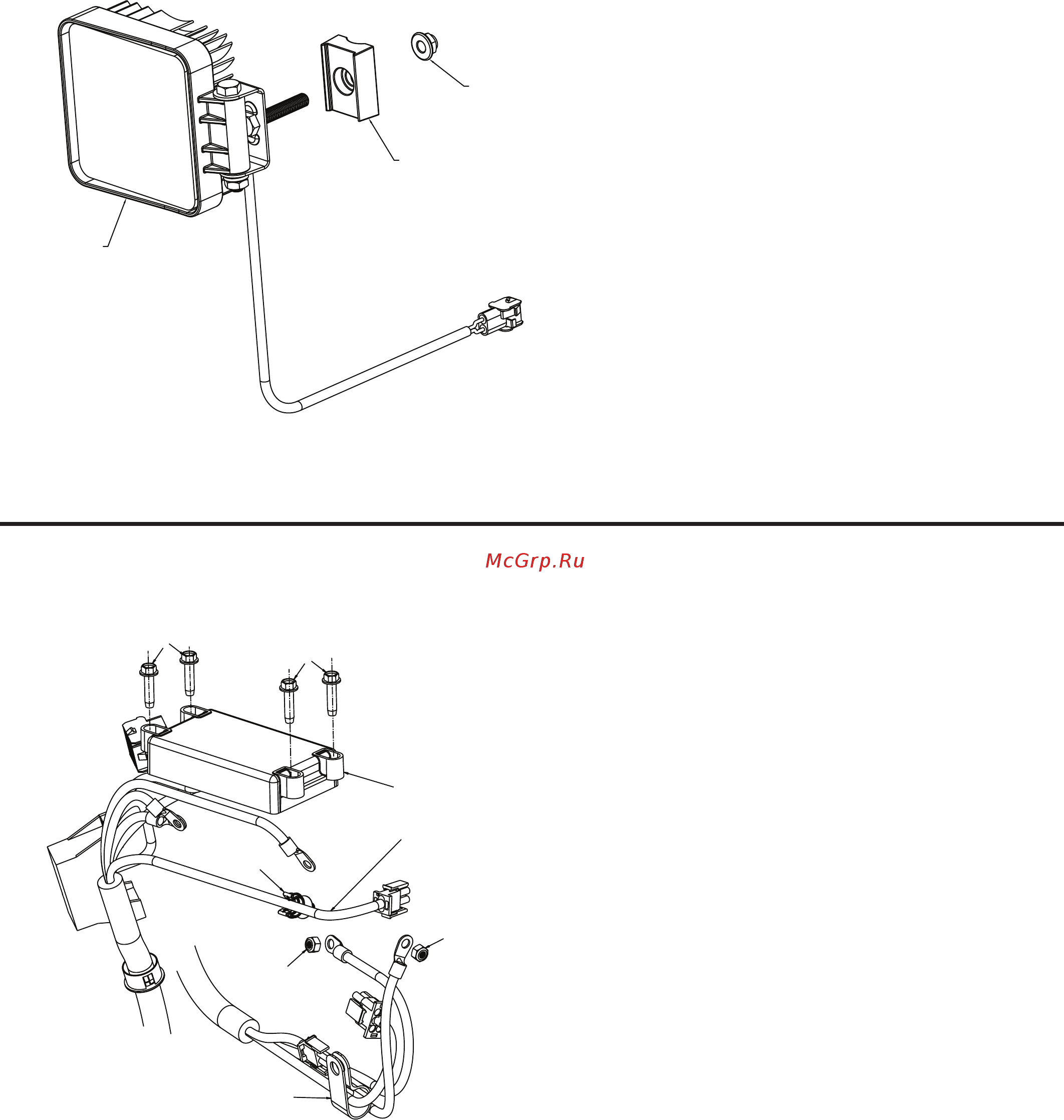

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 590 07 13-01 4.25 X 4.25 LIGHT

2 590 73 98-01 LIGHT MOUNTING BRACKET

3 532 42 79-42 HEX HD 5/16-18 FLANGE

NYLOCK

05.19.009-A

1 585 69 11-01 SCREW 1/4-20 X 1.0

2 593 08 46-02 ENGINE CONTROL UNIT –

EFI 306cc

3 593 07 93-01 HARNESS - LOWER EFI

4 595 27 17-01 CLIP, CORRUGATED TUBE

5 532 19 79-91 P CLIP

6 597 43 41-01 M6 X 1.0 NYLOC NUT
