Husqvarna ST 424T [2/24] Snow thrower model no st 424t st 424t 96193013201 product no 961 93 01 32

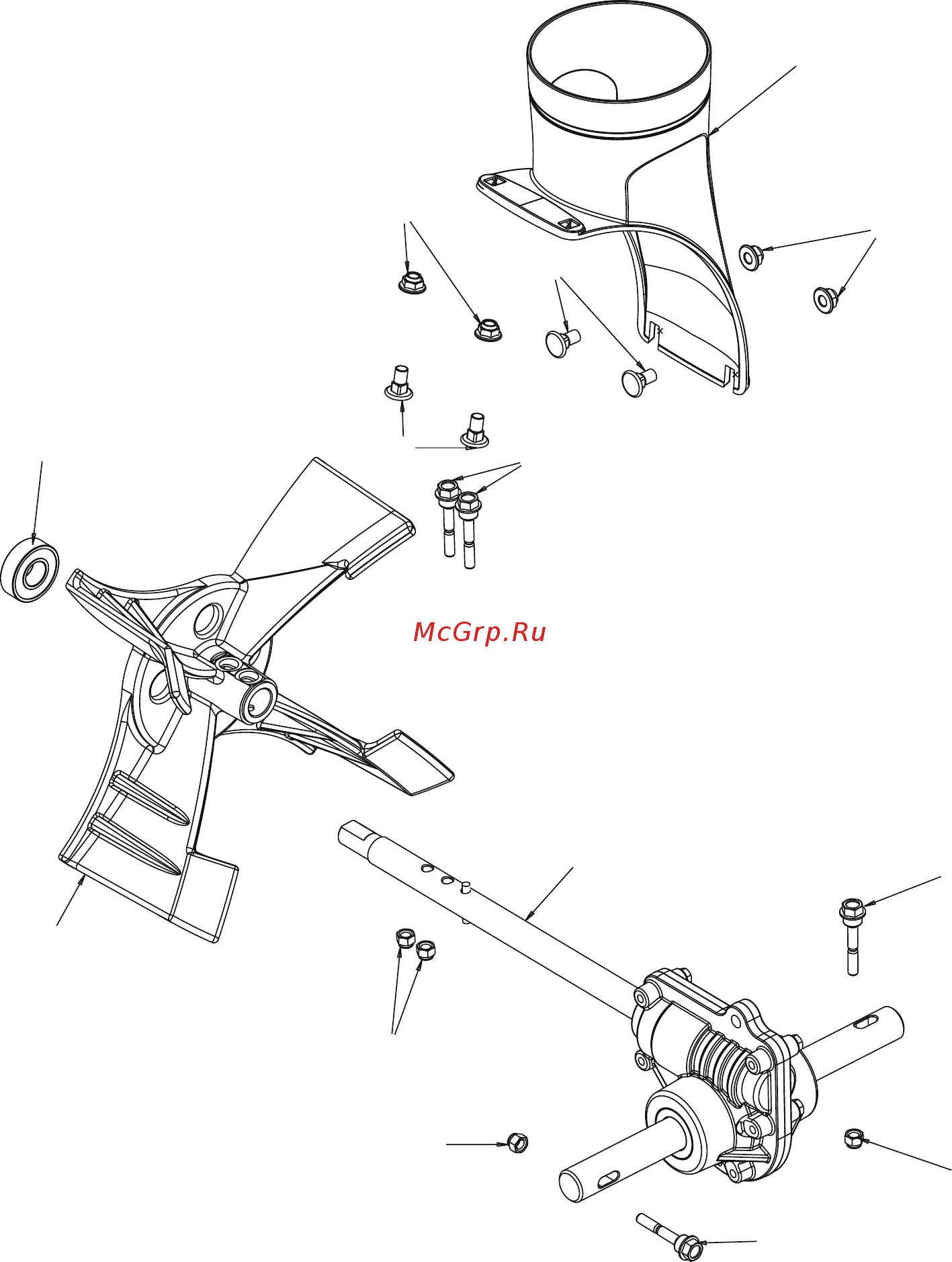

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO.

ST 424T

ST 424T (96193013201), PRODUCT NO. 961 93 01-32

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

05.09.046-A

1 582 86 77-01 AUGER TRANSMISSION,

CAST IRON

2 585 19 83-03 IMPELLER, CAST IRON

3 593 04 28-02 CHUTE. DISCHARGE. BASE –

CAST ALUMINUM

4 588 07 75-02 BOLT. SHEAR 1/4-20

5 595 08 66-01 NUT. NYLOCK 1/4-20

6 585 69 13-01 NUT. FLANGE. NY

LOCK 5/16-18 - BLK

7 585 69 12-01 BOLT. CARRIAGE. WAFER

HEAD 5/16-18 X 5/8- BLK

8 532 19 87-91 BEARING. BALL
