Husqvarna ST 424T [12/24] Repair parts control panel discharge chute
![Husqvarna ST 424T [12/24] Repair parts control panel discharge chute](/views2/1631940/page12/bgc.png)
12
KEY PART
NO. NO. DESCRIPTION

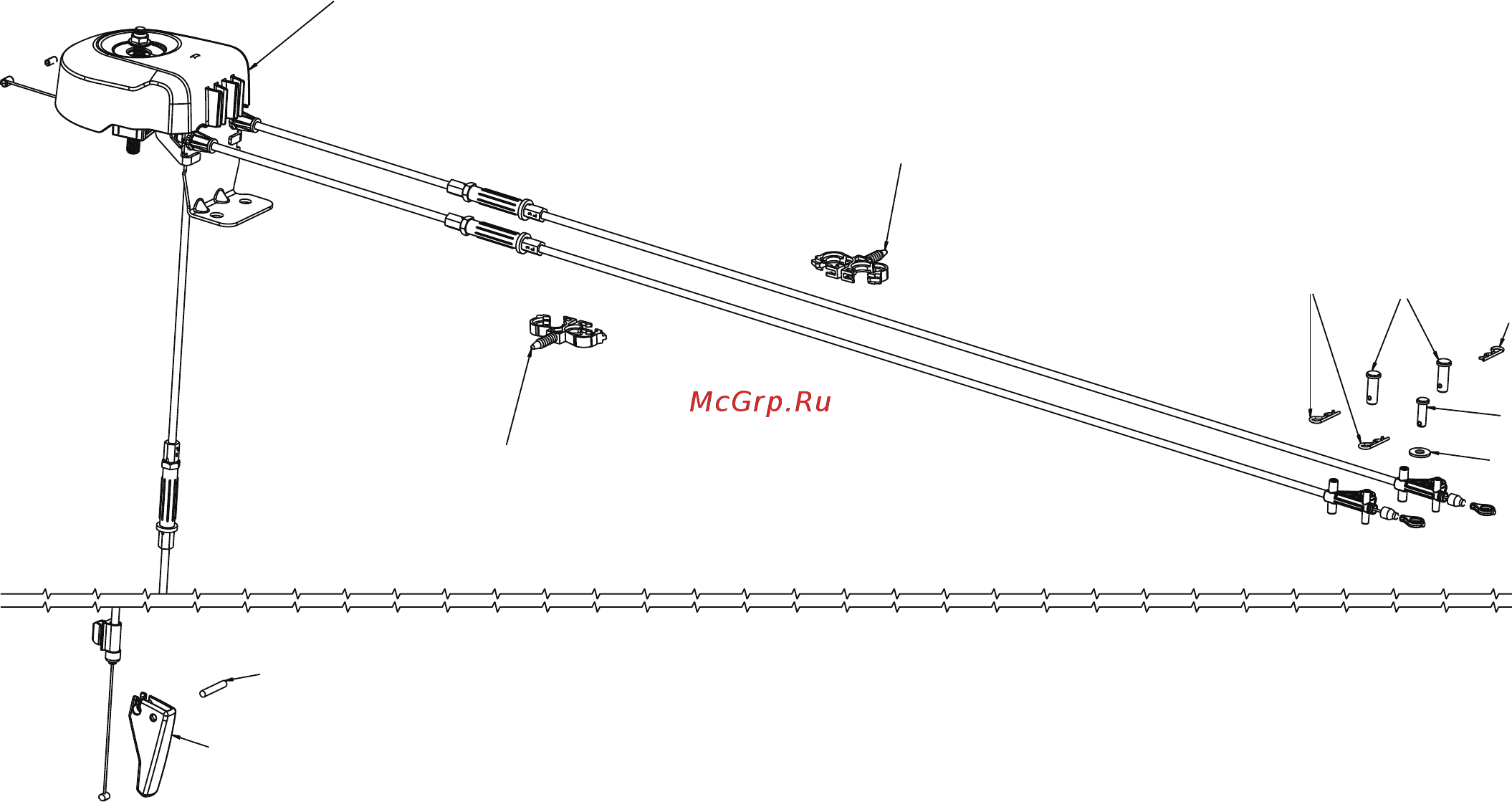

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 424T
ST 424T (96193013201), PRODUCT NO. 961 93 01-32
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3
4
4
5
5
6
7
8
05.08.019-A
1 591 08 68-01 CABLE CHUTE ROTATOR
ASM - LOCKING
2 581 32 94-01 PIN CLEVIS 5/16 X 7/8
3 877 10 08-12 PIN CLEVIS 1/4 X 3/4
4 532 42 33-03 HAIRPIN SOFT ZINC
5 584 65 22-01 CLIP CONDUIT DOUBLE
6 586 68 21-01 WASHER
7 589 79 60-01 ROTATOR LOCK LEVER
8 532 78 36-00 3/16 X 1.0 ROLL PIN
