Husqvarna ST 424T [11/24] Repair parts control panel discharge chute

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

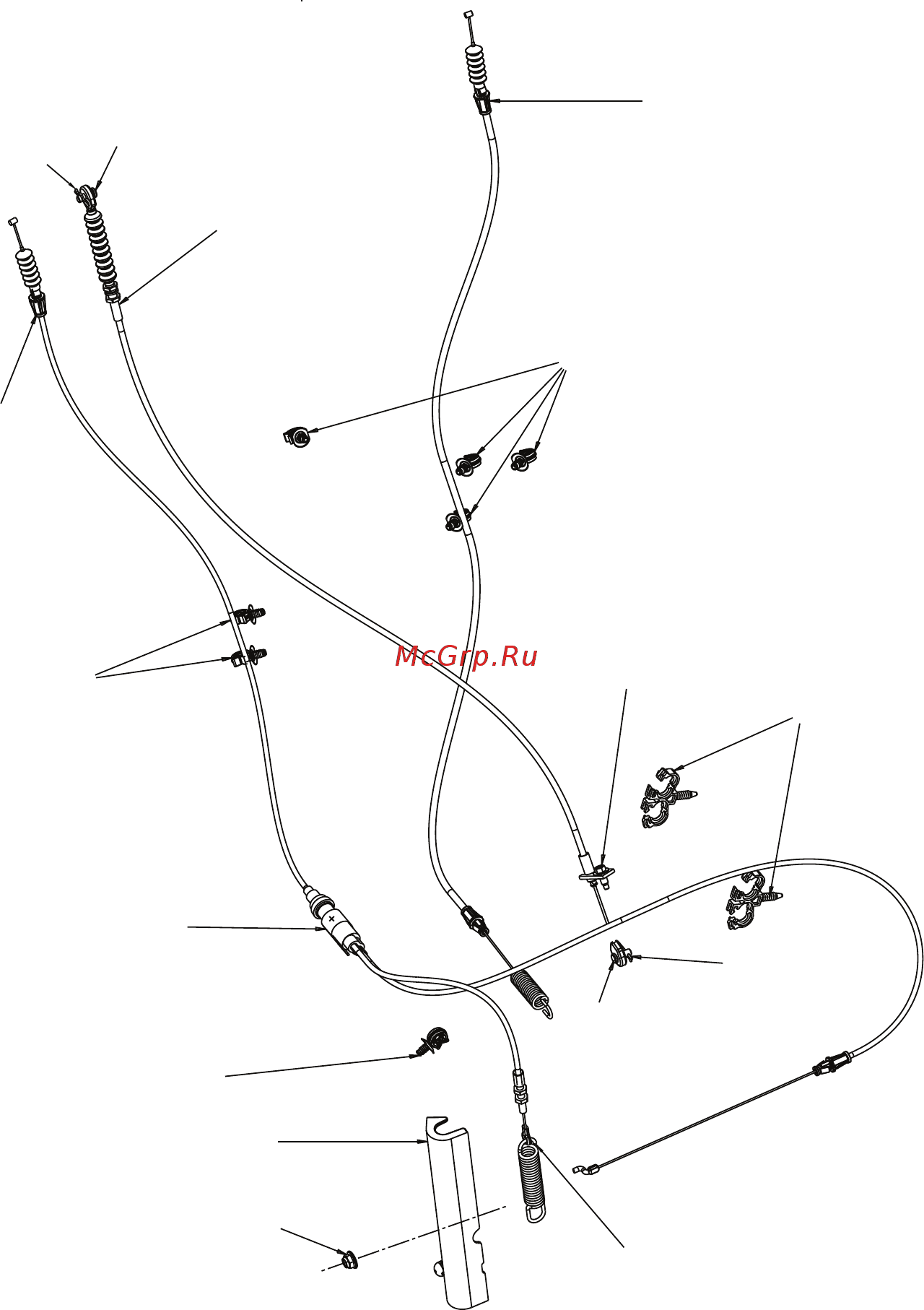

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO.

ST 424T

ST 424T (96193013201), PRODUCT NO. 961 93 01-32

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

05.08.017-C

1 532 19 79-91 CLIP

2 532 42 33-03 HAIRPIN

3 579 76 36-01 CABLE - IMPELLER

4 589 26 52-01 COVER - CABLE

5 589 28 98-01 CABLE - HYDRO DRIVE

6 590 02 66-01 CABLE - HYDRO SPEED

7 590 80 09-01 PIN - CLEVIS

8 532 42 79-42 NUT

9 584 65 22-01 CLIP, DUAL

10 585 51 78-01 SCREW - 1/4-20 x .65

11 592 85 74-01 CLIP, CABLE

12 594 71 65-01 AUGER CABLE SPRING
