White Paper
© Copyright 2006 Avaya Corporation. All rights reserved Page 8
3.1.2 Avaya 3631 Configuration
3.1.2.1 Minimum Configuration Data
The following data is required for associating with an AP, accessing the DHCP server, and the access-
ing file server to obtain the 46xxsettings file. This information may be entered directly into the phone
through its menu interface, or downloaded to the phone via the 46xxsetttings file. :
• SSID (WTSSIDP[1-3])
• Security Type (WTSECP[1-3])
• Encryption Type (ENCRYPTP[1-3])
• Encryption Key (WTKEYP[1-3])
• EAP Type (EAPTYPEP[1-3])—only required for Security Types, WPA-802.1X or WPA2-
802.1X (actually supported EAP Types: TLS, LEAP, PEAP-GTC, PEAP-MSCHAPV2, TTLS-
CHAP, TTLS-MD5, TTLS-MSCHAP, TTLS-MSCHAPV2).
• Country (WTREGDOM)—only required if outside US
• DHCP SSON—only required if using value other than 242
3.1.2.2 Downloading 46xxsettings File via USB
The 3631 telephone supports downloading of the 46xxsetings.txt file from a Windows PC that is con-
nected to the phone via a USB cable. This is in addition to downloading the file over the air from an
HTTP server.
A single PC can be connected to one or multiple phones simultaneously. Connecting to multiple
phones requires a USB hub and multiple USB cables.
Note: Only a Samsung cable with an 18-pin connector can be used to support USB operations on the
3631 telephone; it should be ordered separately.
For further details refer to [1]

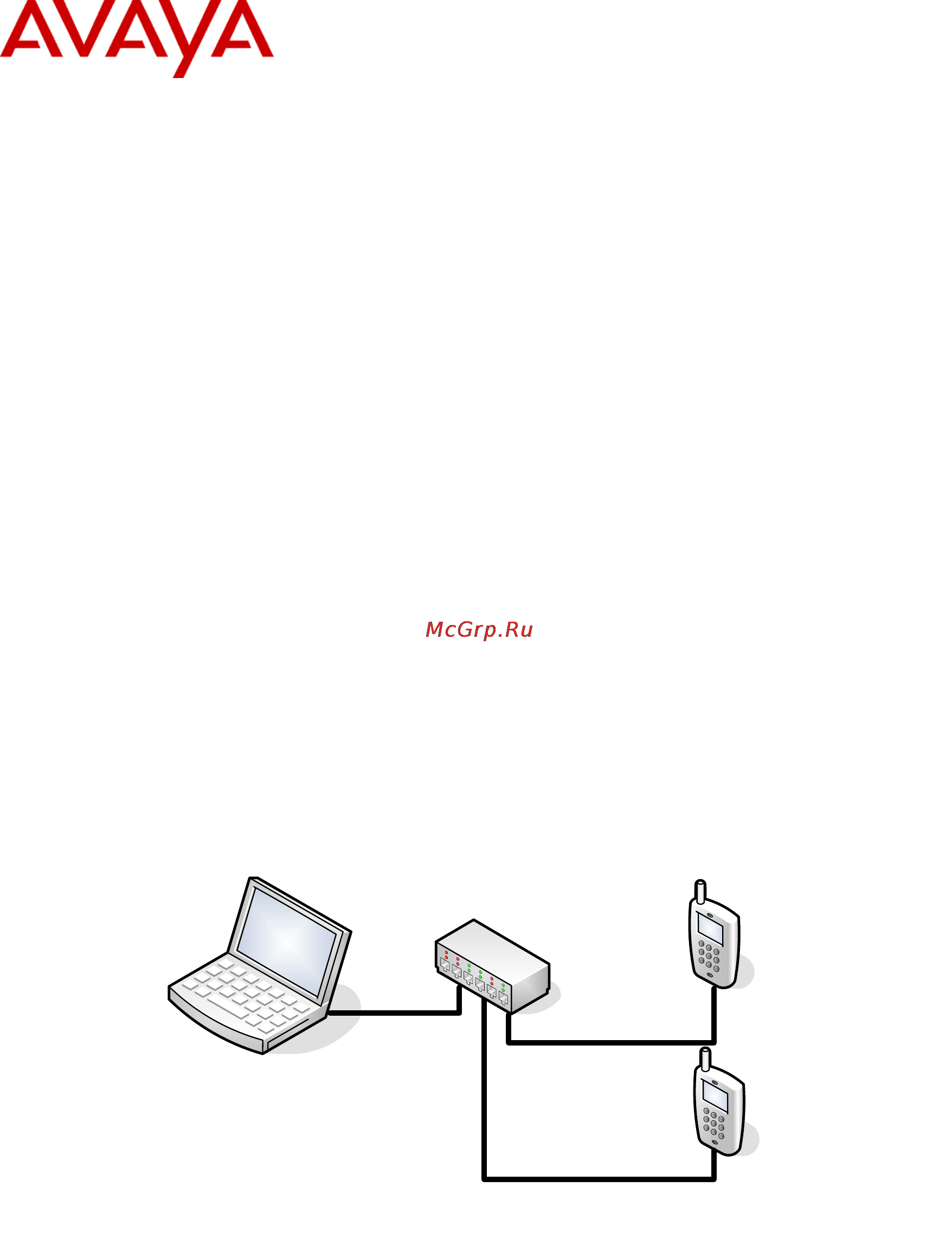

USB HUB
Windows PC
3631 Phone
Samsung USB
Debug Cable
Samsung USB
Debug Cable
USB Cable
Connect Samsung USB Debug Cable with the Phone for USB Operations
