IDENTIFICATION AND SERVICING

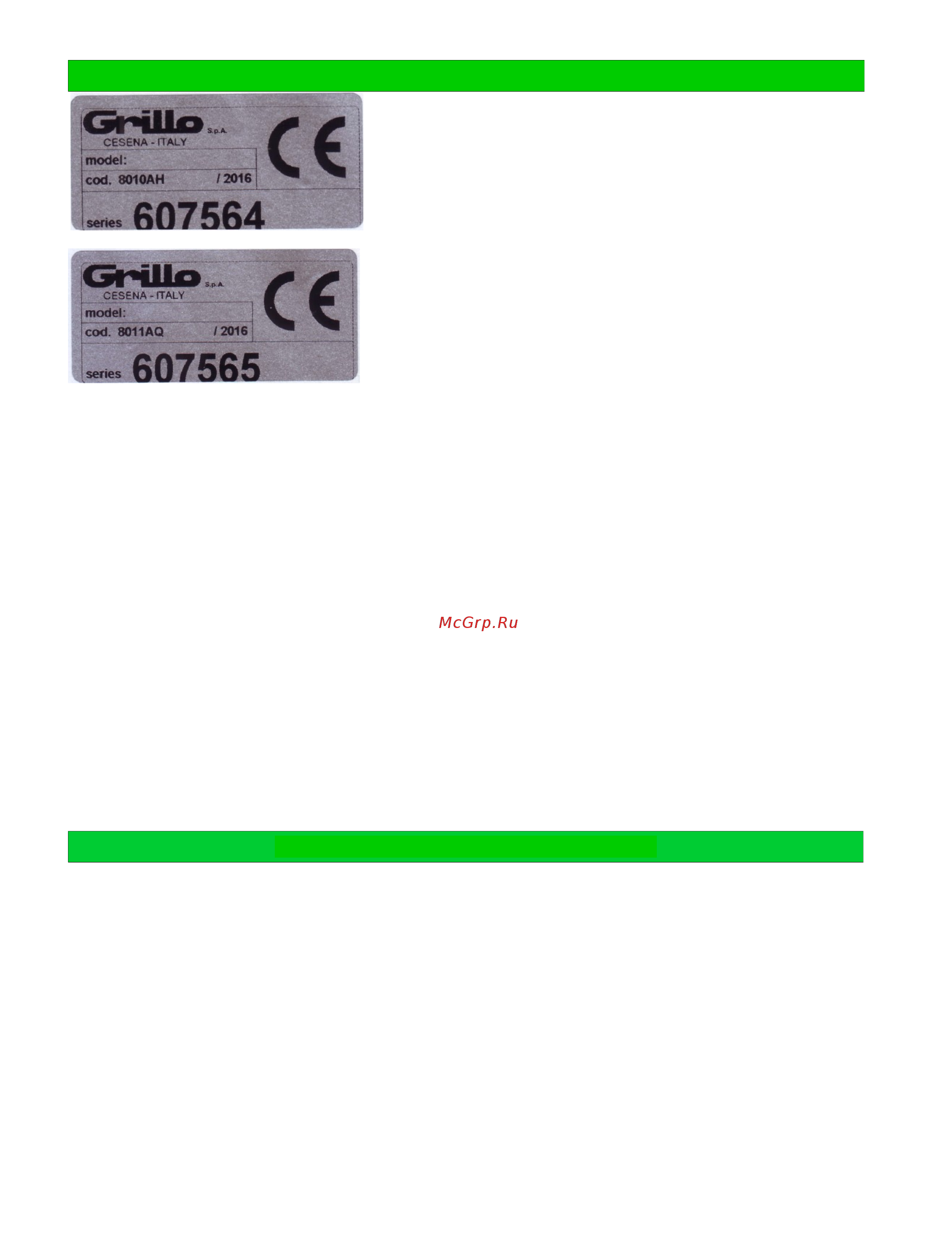

The CLIMBER 10 AWD 22 – AWD 27 has a label

on the steering column indicating the machine’s

serial number.

TECHNICAL ASSISTANCE

This manual gives all the necessary instructions for using the machine and carrying out basic

maintenance. Any adjustments or maintenance operations not described in this manual must be

carried out by an authorized dealer or service centre.

SPARE PARTS

Only use genuine spare parts, which ensure safety and interchangeability. Always quote the

machine’s serial number when ordering spare parts. For engine spare parts, follow the indications

outlined in the specific manual.

WARRANTY

The guarantee is granted in compliance with the current law. The dealer will have to give the client a

copy of the registration card of the machine, which they will print up from the Grillo website. For the

engine the guarantee of the relative manufacturers apply.

RECOMMENDED LIST OF SPARE PARTS TO BE KEPT IN STORE

1 x blade kit plus screws

1 x belt set

1 x engine air filter

1 x engine oil filter

TECHNICAL SPECIFICATIONS 10 AWD 22

ENGINE: - BRIGGS & STRATTON 7220 Series, OHV, 18HP at 3300rpm, 656cc twin-cylinder petrol.

FUEL TANK: 13 litres.

STARTER: electric with 12V battery.

GEARBOX: 4-wheel-drive hydrostatic transmission.

DIFFERENTIAL LOCK: on the rear axle, with pedal engagement.

CLUTCH: electromagnetic with P.T.O and blade brake.

SPEED: continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h.

TYRES: front 4.00-8 TRACTOR, puncture proof treated; rear 20×10.00-8 TRACTOR.

BRAKES: parking brake on the rear wheels with lever engagement.

SEAT: sprung and equipped with roll-bar.

CUTTING DECK: rear/side discharge.
