GB5
The hood is designed for installation and use in "Extractor Version" or in "Filter Version".
Extractor Version
IMPORTANT: The flue kit must be purchased in order to use the hood in "Extractor Version"; it must be ordered and fitted before use.
Fumes are extracted and expelled outside via an exhaust pipe (not supplied) fixed to the hood exhaust pipe connector.
Depending on the exhaust pipe purchased, provide for suitable fixing to the exhaust pipe connector.
IMPORTANT: If already installed, remove the carbon filter/s.
Filter Version
IMPORTANT: The flue kit must be purchased in order to use the hood in "Filter Version with flues"; it must be ordered and fitted before use.
Air is filtered through the carbon filter/s and recycled into the surrounding environment.
IMPORTANT: Check that air recirculation is facilitated.
If the hood does not have a carbon filter/s, order one/them and fit it/them before use.
The flue kit, available to purchase separately, includes the following components:
- Deflector
- Top and bottom flue
- Collar
Install the hood away from very dirty locations, windows, doors and sources of heat.
The hood comes supplied with all the materials required for installation on most walls/ceilings. However, a qualified technician is required to ensure that the
materials are suitable for your ceiling.
Adjacent wall units
Adjacent wall units
centre line
45 cm (gas or combi cookers)
40 cm (electric cookers)
hob surface
650/900 mm min
MATERIAL SUPPLIED
INSTALLATION - PRELIMINARY ASSEMBLY INSTRUCTIONS

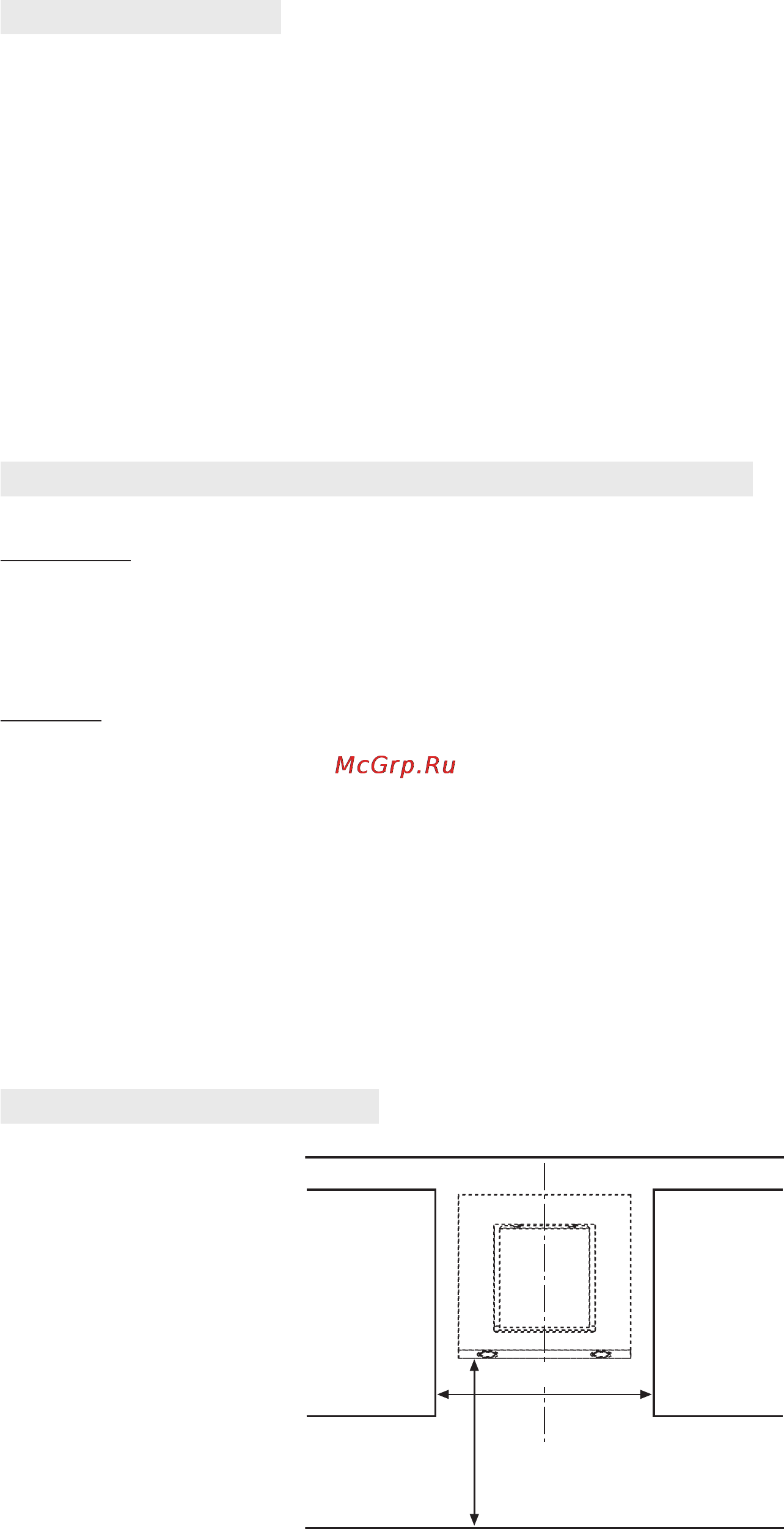

INSTALLATION DIMENSIONS
Remove all the components from the packets. Check that all the components are included.
• Hood assembled with motor and lamps installed.
• Air outlet protection
• Support bracket
• Assembly template
• Filter
• Power cable
• Instruction manual
• 1 adapter Torx T10
• 1 adapter Torx T20
• 2 washers
• 1 cable clamp
• 4 plugs 8 x 40 mm
• 4 screws 5 x 45 mm
• 3 screws 3.5 x 9.5 mm
• 2 screws M4 x 16
