EWAP400~540MBYNN
Packaged air-cooled water chillers
4PW22679-1B
Operation manual
6
OPERATION
The EWAP400~540 units are equipped with a digital controller
offering a user-friendly way to set up, use and maintain the unit.
This part of the manual has a task-oriented, modular structure. Apart
from the first section, which gives a brief description of the controller
itself, each section or subsection deals with a specific task you can
perform with the unit.
There are two cooling circuits in the system. These circuits are
generally named C1 and C2 in the following descriptions.
Digital controller
User interface
The digital controller consists of an alphanumeric display, labelled
keys which you can press and a number of LEDs.

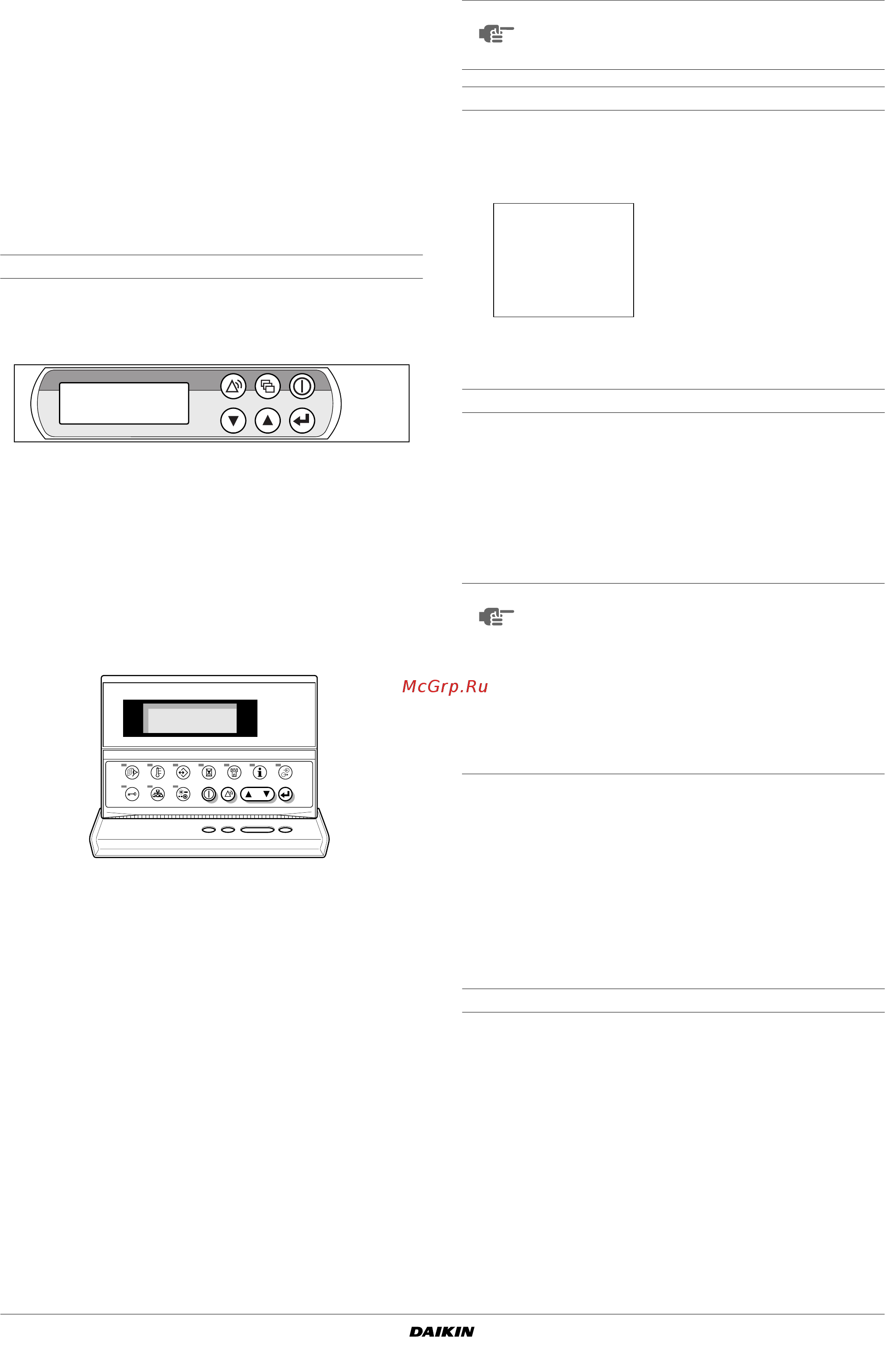

■ Digital built-in controller
Figure - Digital built-in controller
■ Digital remote controller (to be ordered separately)
Figure - Digital remote controller
How to enter a menu
■ Digital built-in controller
Scroll through the main menu using the g and h keys to move
the
mark in front of the menu of your choice. Push the q key
to enter the selected menu.
■ Digital remote controller
Press the corresponding menu key indicated in "User interface",
paragraph "Digital remote controller" on page 6
Connection of a remote digital controller to the unit
For a remote controller a cable length of up to 300 metres between
the digital controller and the unit is allowed. This gives the
opportunity to control the unit from a considerable distance. Refer to
"Cable for digital controller" in the installation manual for cable
specifications.
For units in a DICN configuration, the digital controllers of the units
can be installed remotely at a distance of up to 60 metres by using a
6-ray telephone cable with a maximum cable resistance of 0.1 Ω/m.
Working with the unit
This chapter deals with the everyday usage of the unit. Here, you will
find how to perform routine tasks, such as:
■ "Setting the language" on page 6
■ "Switching the unit on" on page 7
■ "Consulting actual operational information" on page 7
■ "Adjusting the temperature setpoint" on page 8
■ "Resetting the unit" on page 8
Setting the language
If desired, the operating language can be changed to any of the
following languages: English, German, French, Spanish or Italian.
1 Enter the usersettings menu. Refer to chapter "How to enter a
menu" on page 6
2 Go to the appropriate screen of the usersettings menu using the
g and h keys.
3 Press q to change the operating language until the desired
language is active.
f
key, to enter the main menu
o
key, to start up or to shut down the unit.
p
key, to enter the safeties menu or to reset an alarm.
g
h
keys, to scroll up or down through the screens of a menu
(only in case W, X or C appears) or to raise, respectively
lower a setting.
q
key, to confirm a selection or a setting.
o
key, to start up or to shut down the unit.
p
key, to enter the safeties menu or to reset an alarm.
k
key, to scroll through the screens of a menu (only in case
W, X or C appears) or to raise, respectively lower a setting.
q
key, to confirm a selection or a setting.
u
key, to enter the readout menu.
s
key, to enter the setpoints menu.
z
key, to enter the user settings menu.
e
key, to enter the timers menu.
r
key, to enter the history menu.
t
key, to enter the info menu.
y
key, to enter the input/output status menu.
a
key, to enter the user password menu.
d
key, to enter the DICN menu, also referred to as network
menu.
i
key, has no effect on EWAP units.
NOTE
Temperature readout tolerance: ±1°C.
Legibility of the alphanumeric display may decrease in
direct sunlight.
NOTE
When a remote digital controller is connected to a
stand-alone unit, the adress of the remote digital
controller has to be set to 2 by means of the DIP-
switches on the back of the remote digital controller.
Refer to the installation manual "Setting the adresses
on the remote digital controller" for setting the adress.
When a remote digital controller is connected to a unit
that is part of a DICN network, the addresses have to
be set according to the instructions in the installation
manual.
