Procedure for Software Upload/Download ESIE07-05
3–12 Part 3 – Troubleshooting
3
1
3
4
5
13
14

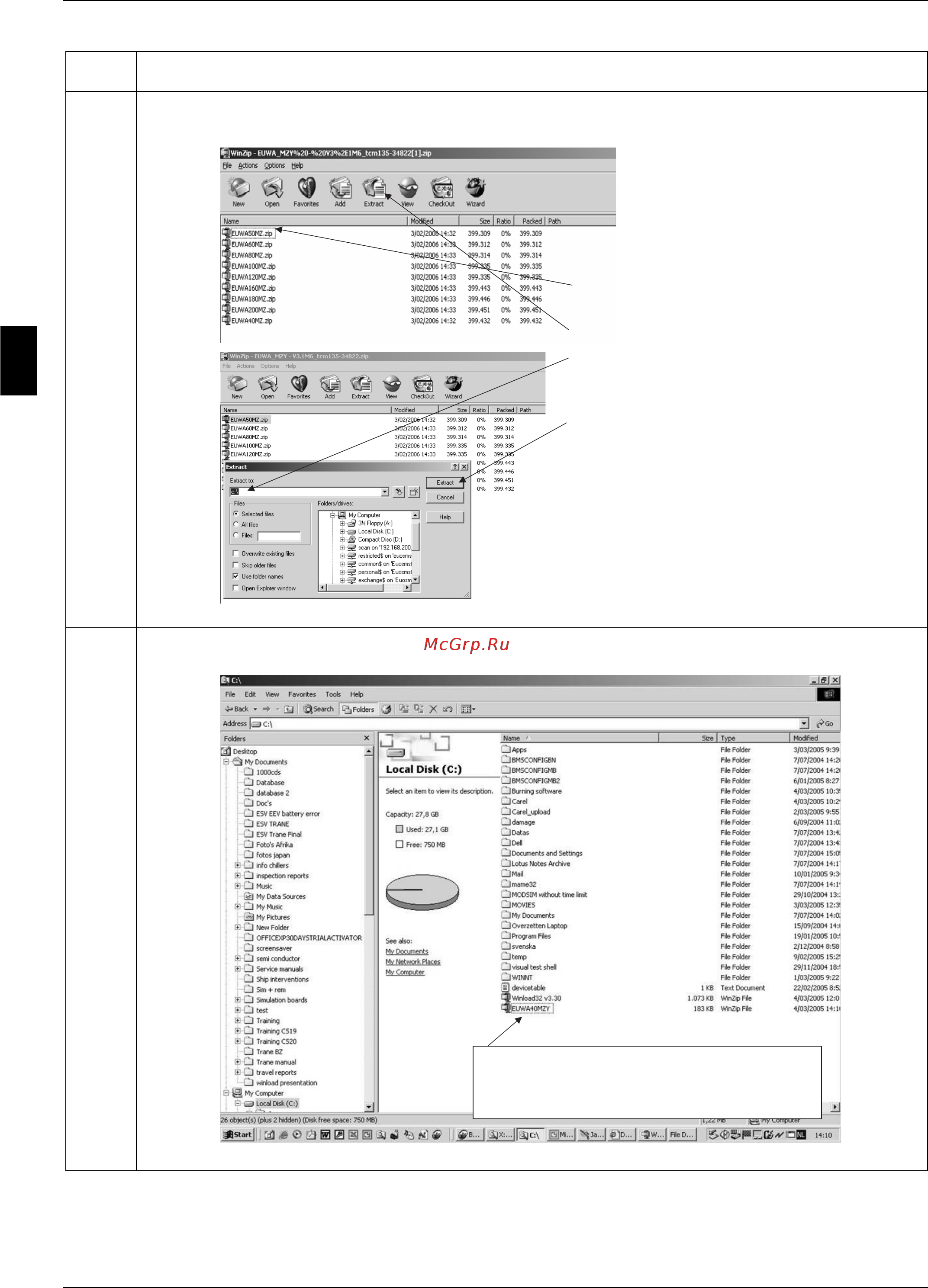

Step Action
1. Open the saved zip file
2. Select the file for the unit
(capacity
3. Press extract
4. Choose a location where you
want to save the file
(example: C-drive)
5. Click extract
The file is now save on the hard disk of your PC
1. Double click on the file
