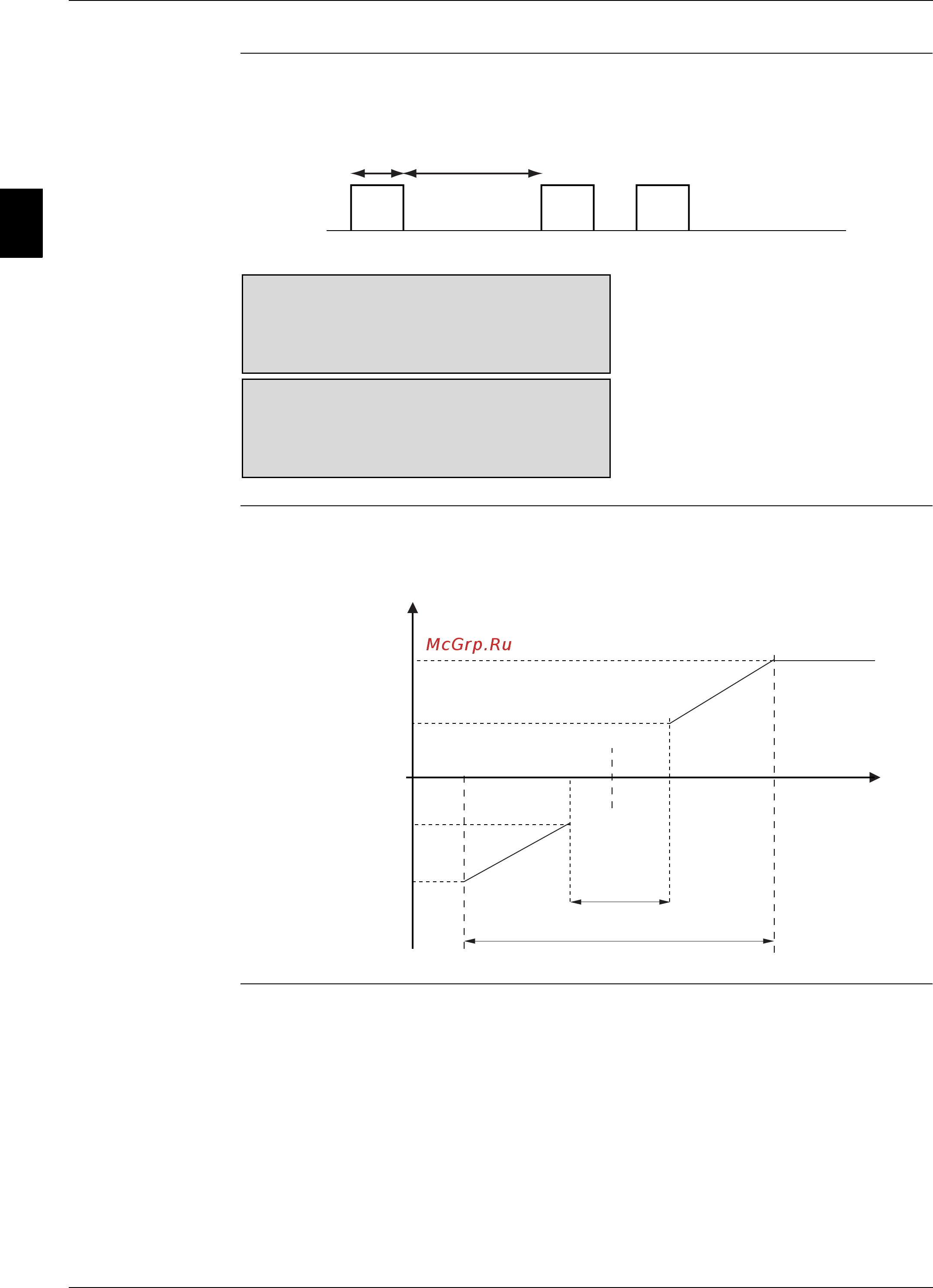

Daikin EWWQC13AJYNN [78/130] Compressor loading
![Daikin EWWQC22AJYNN/A [78/130] Compressor loading](/views2/1658957/page78/bg4e.png)
Functional Control ESIE07-05
2–72 Part 2 – Functional Description
3
1
2
4
5
Pulse time The time of the pulse time is fixed (default 0.3 s). The interval time between two pulses is proportional
to the PID (proportional + integral + derivative) unit request.
Graph 1 A pure proportional logic will load or unload with a frequency related to the set-point distance.
upload/download pulses
Fixed Variable
Compressor Unloading
Pulse Time
Min Pulse Period
Max Pulse Period
00.3 s
01 s
90 s
Compressor Loading
Pulse Time
Min Pulse Period
Max Pulse Period
00.3 s
05 s
90 s
Evap water
leaving
Pulse time
Set Point
Dead band
Regulation band
Minimum loading
pulse time
No pulse,
stand-by
Max loading
pulse time
Minimum unloading
pulse time
Max unloading
pulse time
ESIE07-05.book Page 72 Friday, December 21, 2007 3:21 PM
