Daikin EWWQC13AJYNN [82/130] Transducer low pressure alarm
![Daikin EWWQC13AJYNN [82/130] Transducer low pressure alarm](/views2/1658957/page82/bg52.png)
Functional Control ESIE07-05
2–76 Part 2 – Functional Description
3
1
2
4
5
2.20.2 Transducer low pressure alarm
Function
description
■ When the low pressure is below the LP setpoint (for the LP alarm delay time), the unit will go into
LP alarm.
■ When the low pressure alarm is activated and the LP rises above the LP setpoint + diff, it will be
possible to reset the transducer low pressure alarm.
■ When the low pressure sinks below the low pressure switch setpoint (0.6 bar), the unit will go into
alarm and a manual reset on the low pressure switch is needed.

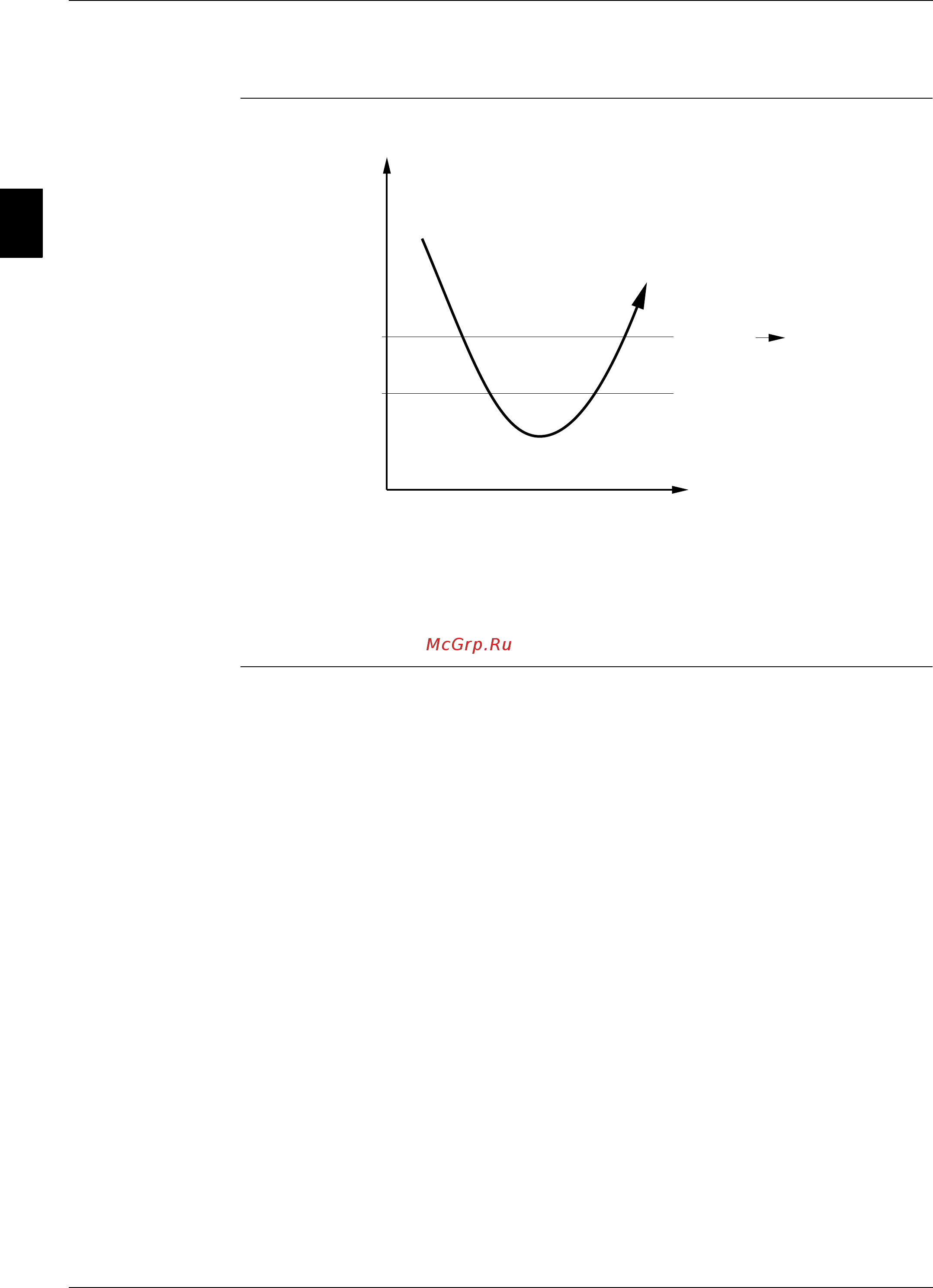

Setpoint
1.1
1.2
LP
Time
LP Alarm
If LP is below
this value
possible
to reset
ESIE07-05.book Page 76 Friday, December 21, 2007 3:21 PM
