3.2.8. Current measurement

To avoid damage to the Meter or injury if the fuse blows, never attempt an in-circuit current

measurement where the open-circuit potential to earth is greater than 1000V.

To avoid damage to the meter, check the meter’s fuse before proceeding. Use the proper termi-

nals, function, and range for your measurement. Never place the probes in parallel with a circuit

or component when the leads are plugged into the current terminals.

The Meter’s current ranges are 600.0µA, 6000µA, 60.00mA, 600.0mA, 6.000A and 10.00A.

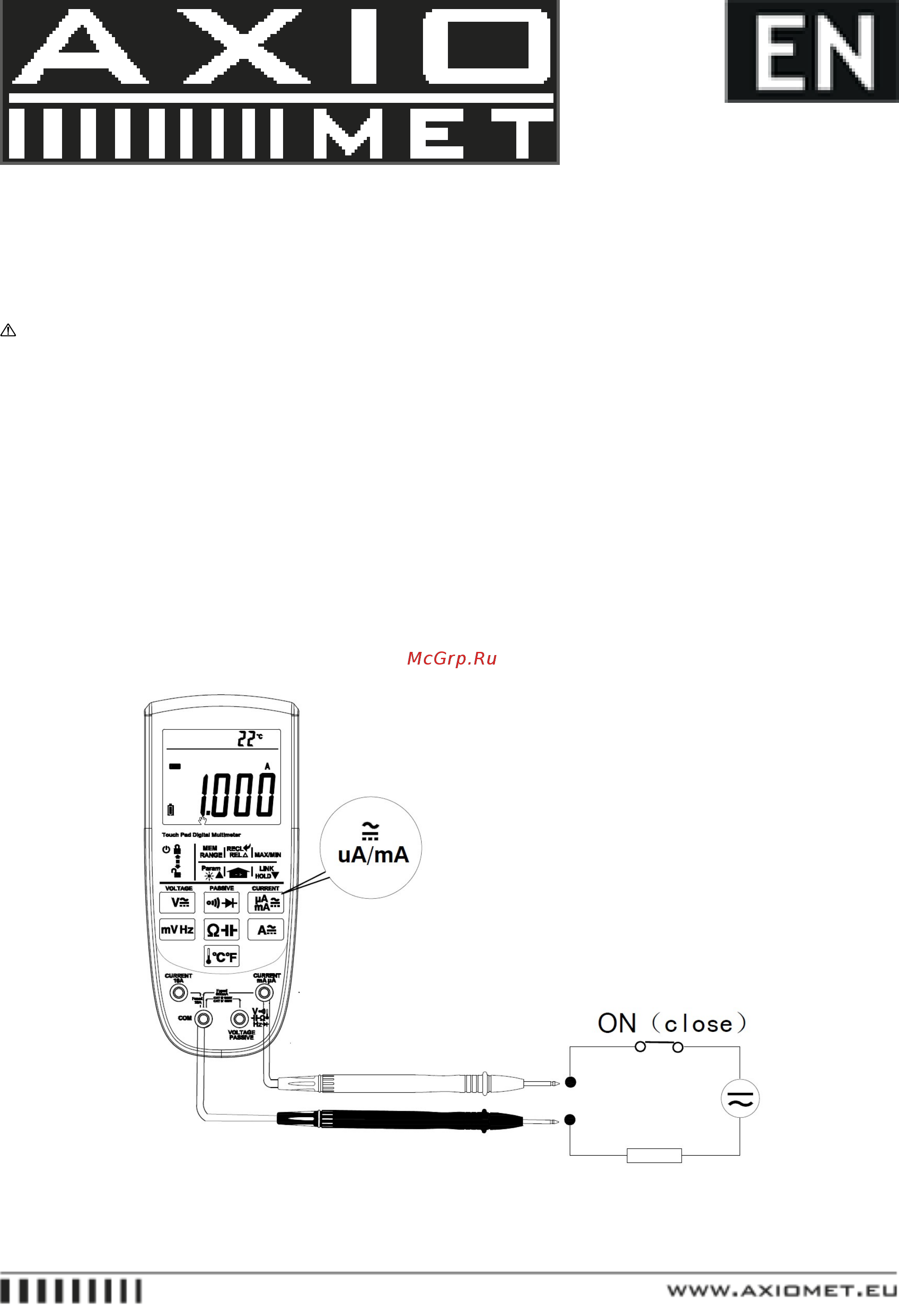

To measure current (set up the Meter as shown in the picture):

1. Turn off power to the circuit.

2. Touch the key 13 to select the DC current or AC current.

3. Connect the black test lead to the COM terminal

the red test leads to the 10A terminal or mAuA terminal.

(>600mA please use 10A range/terminal)

4. Break the circuit path, and in series the test lead.

5. Turn on the power of the circuit, read the LCD

* mA% range include: 4~20mA%/0~24mA%/0~20mA%
