AXIOMET AX-160IP [6/30] Lcd display

3 Measurement function key pads

4 mA / uA socket (uA, mA range red testlead input)

5 10A socket (A range red testlead input)

6 COM socket (black testlead input)

7 V Terminal (red testlead for voltage, resistance, capacitance, frequency, Temperature, diode and conti-

nuity measurements)

8 Light sensor (Use for auto backlight)

2.2. LCD Display

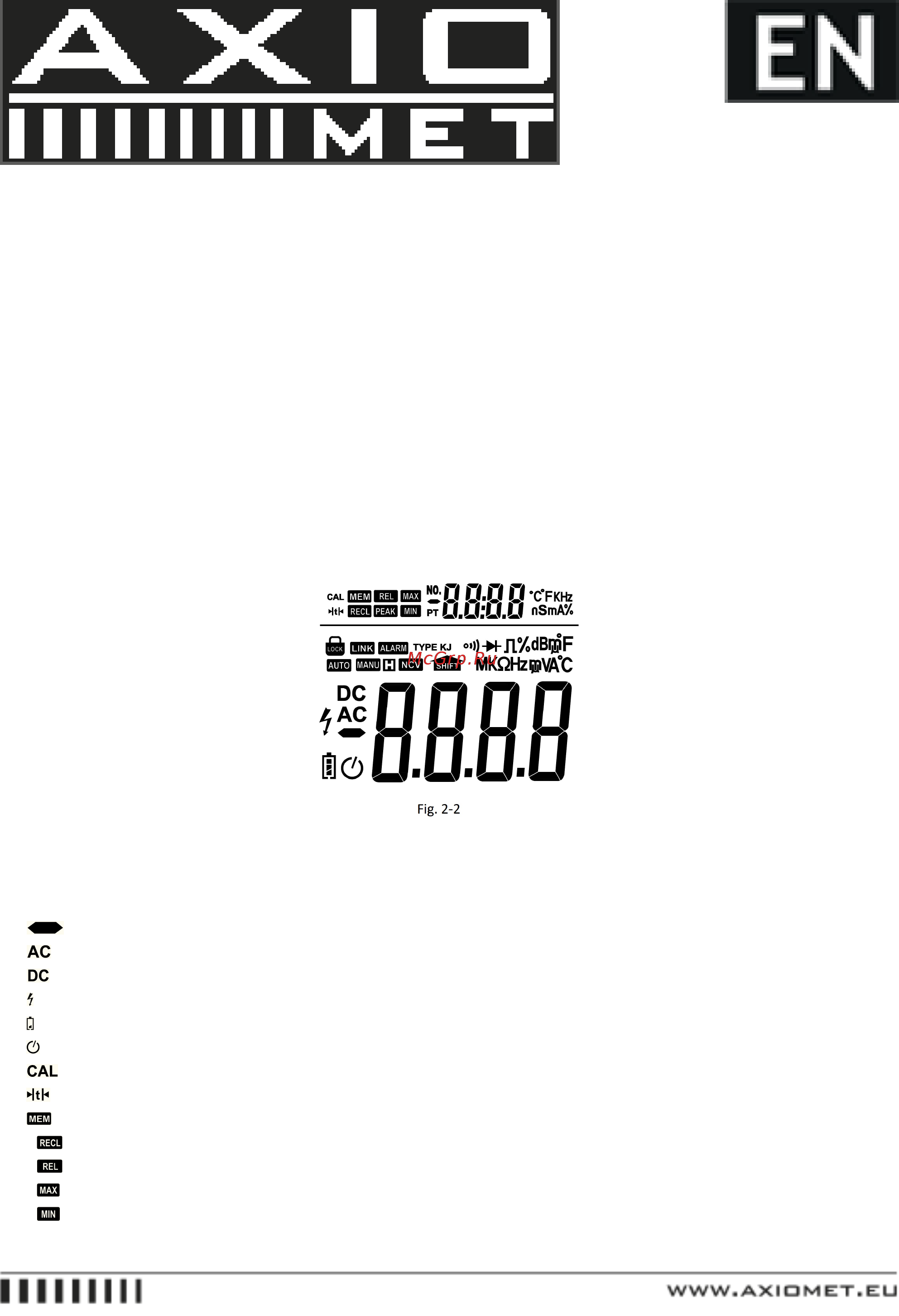

LCD screen is shown as in Figure 2-2, with its every symbol’s meaning shown below:

No. - Symbol - Meaning

1 - - Indicates negative readings.

2 - - Indicator for AC voltage or current.

3 - - Indicator for DC voltage or current.

4 - - Indicator for AC voltage is greater than 30V or DC voltage is greater than 50V.

5 - - Low battery indication.

6 - - Power off indication.

7 - - Calibration mode indication.

8 - - Automatic shutdown time setting symbol.

9 - - Memory mode indication.

10 - - Review the data you saved.

11 - - The meter is in Relative Measurement mode.

12 - - Display maximum data.

13 - - Display minimum data.
