Fluke FLK-8845A/SU [72/93] Measuring dc current

8845A/8846A

Users Manual

4-10

INPUT SENSE

FRONT

REAR

10 A

100

2W/4W

300V

FUSED

1000V CAT I

600V CAT II

V AC

I < 100 mA

caw025.eps

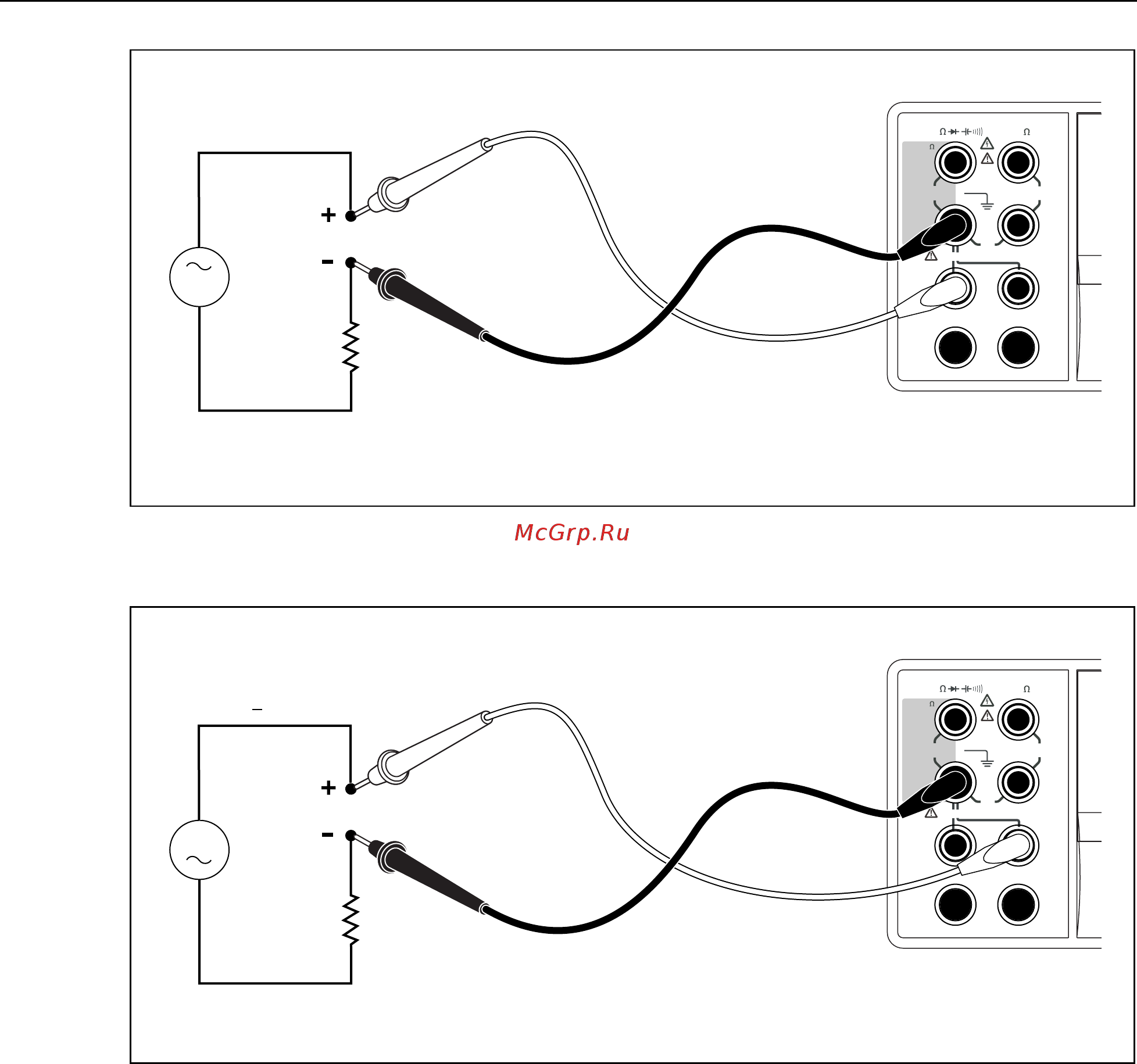

Figure 4-4. Input Connections for Current Measurements Below 120 mA

INPUT SENSE

FRONT

REAR

10 A

100

2W/4W

300V

FUSED

1000V CAT I

600V CAT II

V AC

I > 100 mA

and

10 A

caw026.eps

Figure 4-5. Input Connections for Current Measurements Above 120 mA

Refer to the “Range Keys” section in Chapter 3 of this manual for information on how to

adjust the measurement range.

Measuring DC Current

To measure dc current:

1. Connect the test leads between the Meter’s input connectors and the measured circuit

as shown in Figure 4-4 for currents 120 mA or less or Figure 4-5 for currents up to 10

amps.

2. Press H.
