8845A/8846A
Users Manual
4-12
cycle time is longer than it is when using the 20 Hz
filter.
20HZ Provides higher measurement accuracy on ac signals
between 20 Hz and 200 Hz. However, the measurement
cycle time is longer than it is when using the 200 Hz
filter.
200 HZ Provides accurate measurements on ac signals 200 Hz
and above.
2ND MEAS Cycles the secondary display through the measurement functions
listed below, and then off. When a second measurement function is
selected, the 2ND MEAS soft key label is highlighted.
IDC - Displays the dc current the ac signal is riding on.
Frequency - Displays the frequency of the ac signal on the Meter’s
Input HI and LO connectors.
Measuring Capacitance (8846A only)
The Fluke 8846A is capable of measuring capacitance from 1 pF to 100 mF (0.1 F).
To make a capacitance measurement:

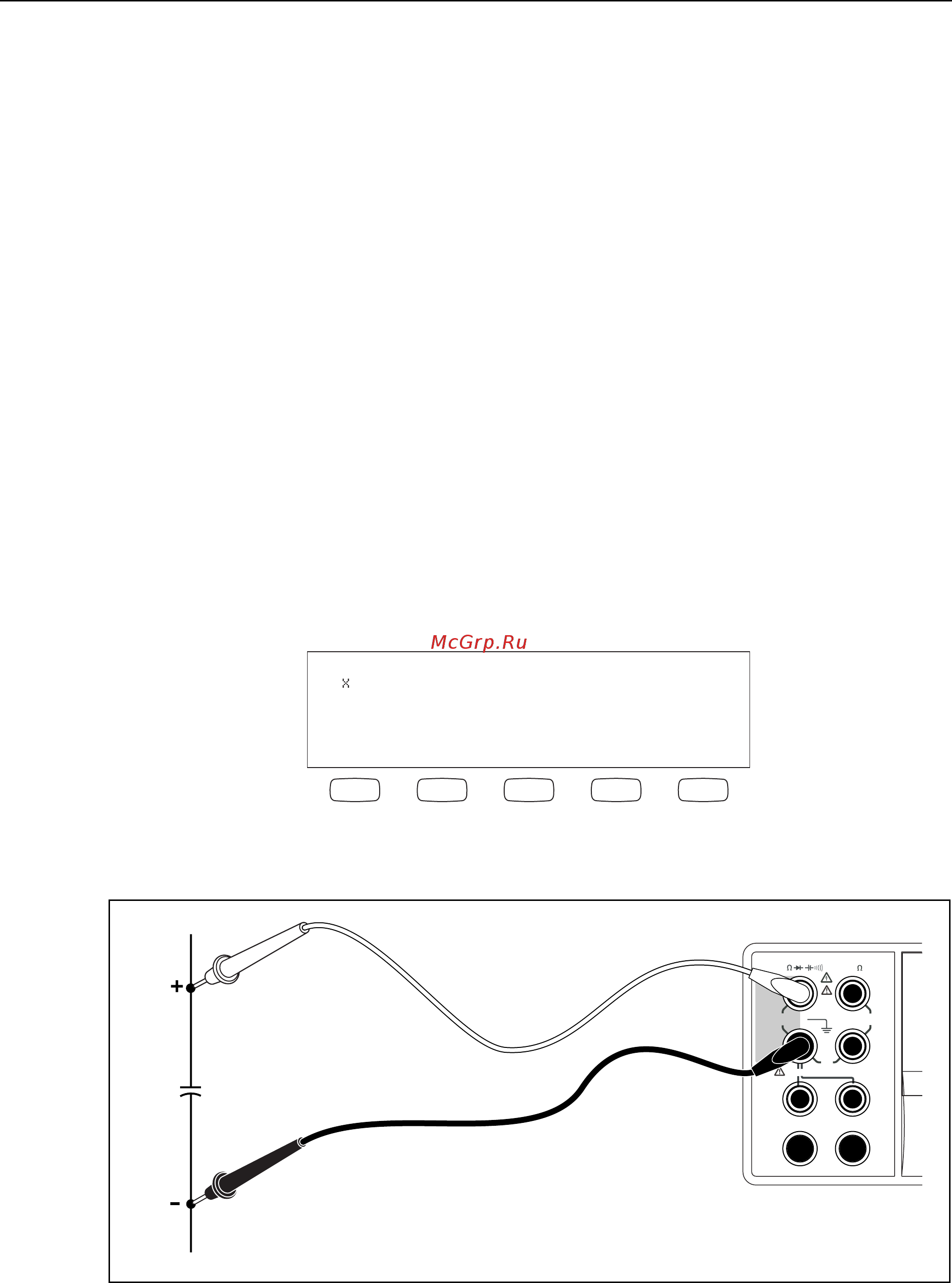

1. Press C. An example of the capacitance display is shown below.
0.000
nF
F1 F2 F3 F4 F5
caw10f.eps
2. Connect the Meter’s test leads as shown in Figure 4-6.
2
INPUT SENSE
HI
LO
FRONT
REAR
10 A
1V
100
mA
4
W
HI
LO
2W/4W
V
300V
FUSED
1000V CAT I
600V CAT II
caw027.eps
Figure 4-6. Measuring Capacitance
