Making Measurements
Monitoring the Measurement-Complete Signal 4
4-17
Connecting an External Trigger
The TRIG I/O jack on the Meter’s rear panel is used to connect to an external trigger
signal. The rising edge of a TTL signal will trigger the Meter to start taking
measurements, if the Meter is in external trigger mode.

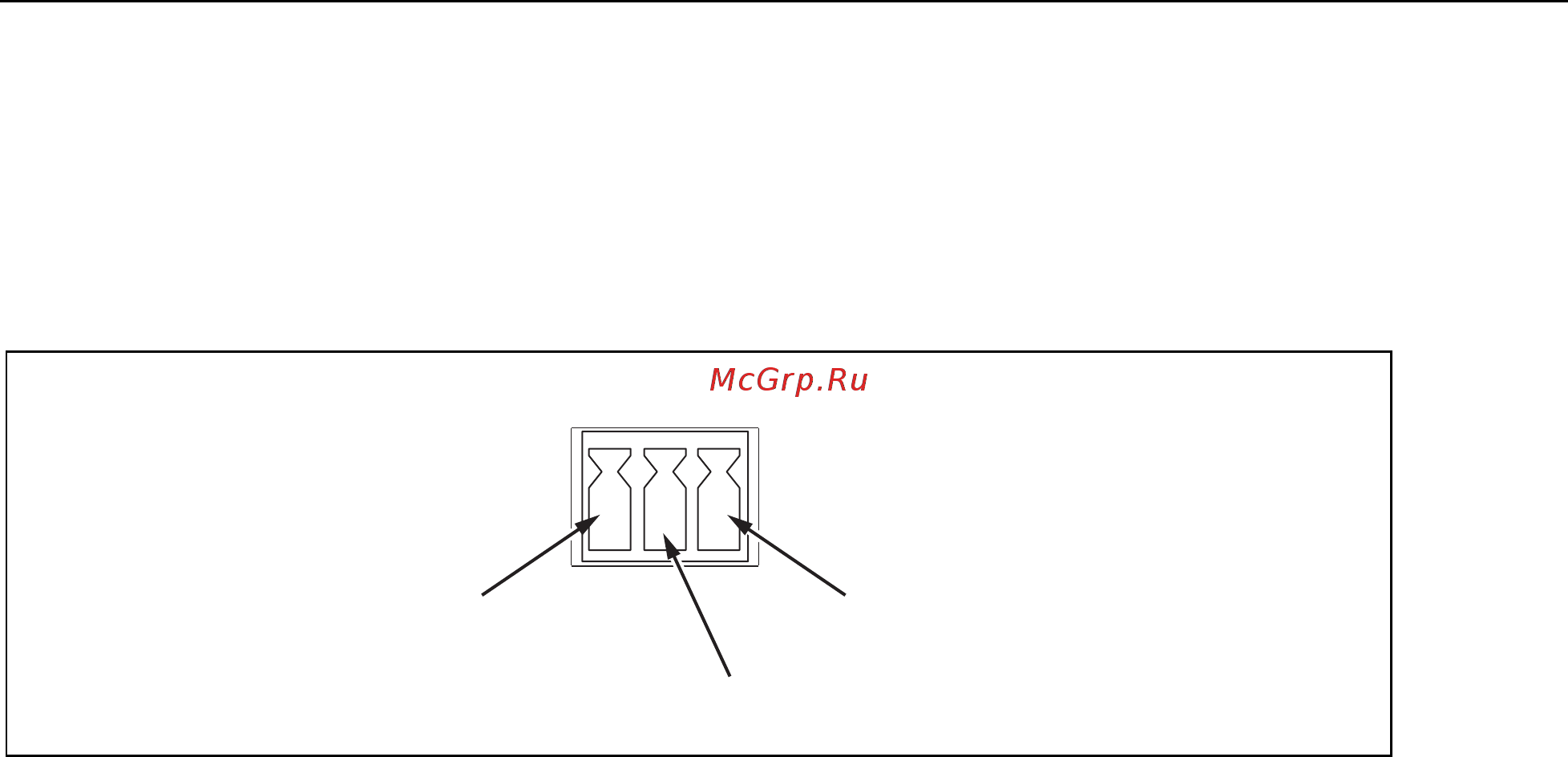

Figure 4-9 indicates the purpose of the three pins in the TRIG I/O connector.
TRIG I/O
Pin 3: Measure Complete OutPin 1: Trigger In
Pin 2: Signal Ground
caw059.eps
Figure 4-9. TRIG I/O Pin-out Description
Monitoring the Measurement-Complete Signal
In addition to being a trigger input, the TRIG I/O jack on the Meter’s rear panel also
provides a signal indicating the completion of a measurement cycle. A positive going
edge of a TTL signal indicates a measurement cycle is complete. See Figure 4-9 above to
identify which pins on the TRIG I/O connector are used to sense the measurement-
complete signal.
