![Gigabyte Z390 GAMING X [14/48] Led_c rgb led strip header](/img/pdf.png)

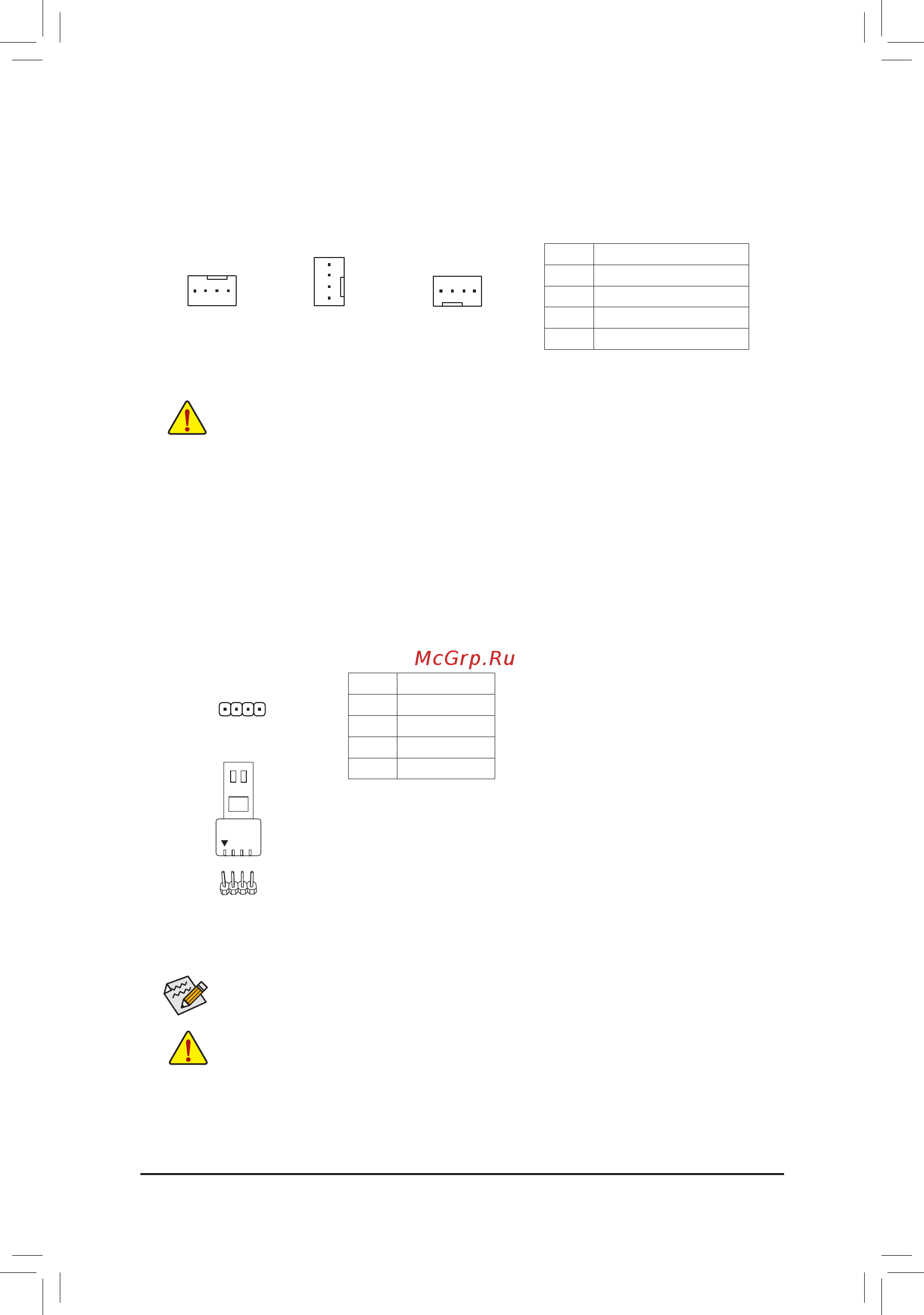

Gigabyte Z390 GAMING X [14/48] Led_c rgb led strip header
![Gigabyte Z390 GAMING X [14/48] Led_c rgb led strip header](/views2/1666466/page14/bge.png)
5) LED_C (RGB LED Strip Header)
Theheadercanbeusedtoconnectastandard5050RGBLEDstrip(12V/G/R/B),withmaximumpower
rating of 2A (12V) and maximum length of 2m.
Pin No. Denition
1 12V
2 G
3 R
4 B
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
Forhowtoturnon/offthelightsoftheLEDstrippleasevisitthe"UniqueFeatures"webpageof
GIGABYTE's website.
1
DEBUG
PORT
G.QBOFM
3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
• Thesefanheadersarenotcongurationjumperblocks.Donotplaceajumpercapontheheaders.
CPU_FAN/SYS_FAN1
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1 1
SYS_FAN2 SYS_FAN3
DEBUG
PORT
G.QBOFM
1
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
- 14 -
ConnectyourRGBLEDstriptotheheader.Thepowerpin(markedwitha
triangleontheplug)oftheLEDstripmustbeconnectedtoPin1(12V)of
thisheader.IncorrectconnectionmayleadtothedamageoftheLEDstrip.
RGB
LEDStrip
1
12V
