& VT-d

(Note)

Enables or disables Intel

VirtualizationTechnologyforDirectedI/O.(Default:Enabled)

& Internal Graphics

 Enablesordisablestheonboardgraphicsfunction.(Default:Auto)

& DVMT Pre-Allocated

 Allowsyoutosettheonboardgraphicsmemorysize.Optionsare:32M~1024M.(Default:64M)

& DVMT Total Gfx Mem

 AllowsyoutoallocatetheDVMTmemorysizeoftheonboardgraphics.Optionsare:128M,256M,MAX.

(Default:256M)

& Audio Controller

 Enablesordisablestheonboardaudiofunction.(Default:Enabled)

If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to

Disabled.

& Above 4G Decoding

Enables or disables 64-bit capable devices to be decoded in above 4 GB address space (only if your system

supports 64-bit PCI decoding). Set to Enabled if more than one advanced graphics card are installed and

their drivers are not able to be launched when entering the operating system (because of the limited 4 GB

memoryaddressspace).(Default:Disabled)

& PCH LAN Controller

 EnablesordisablestheonboardLANfunction.(Default:Enabled)

If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to

Disabled.

& Wake on LAN Enable

 EnablesordisablesthewakeonLANfunction.(Default:Enabled)

& IOAPIC 24-119 Entries

 Enablesordisablesthisfunction.(Default:Enabled)

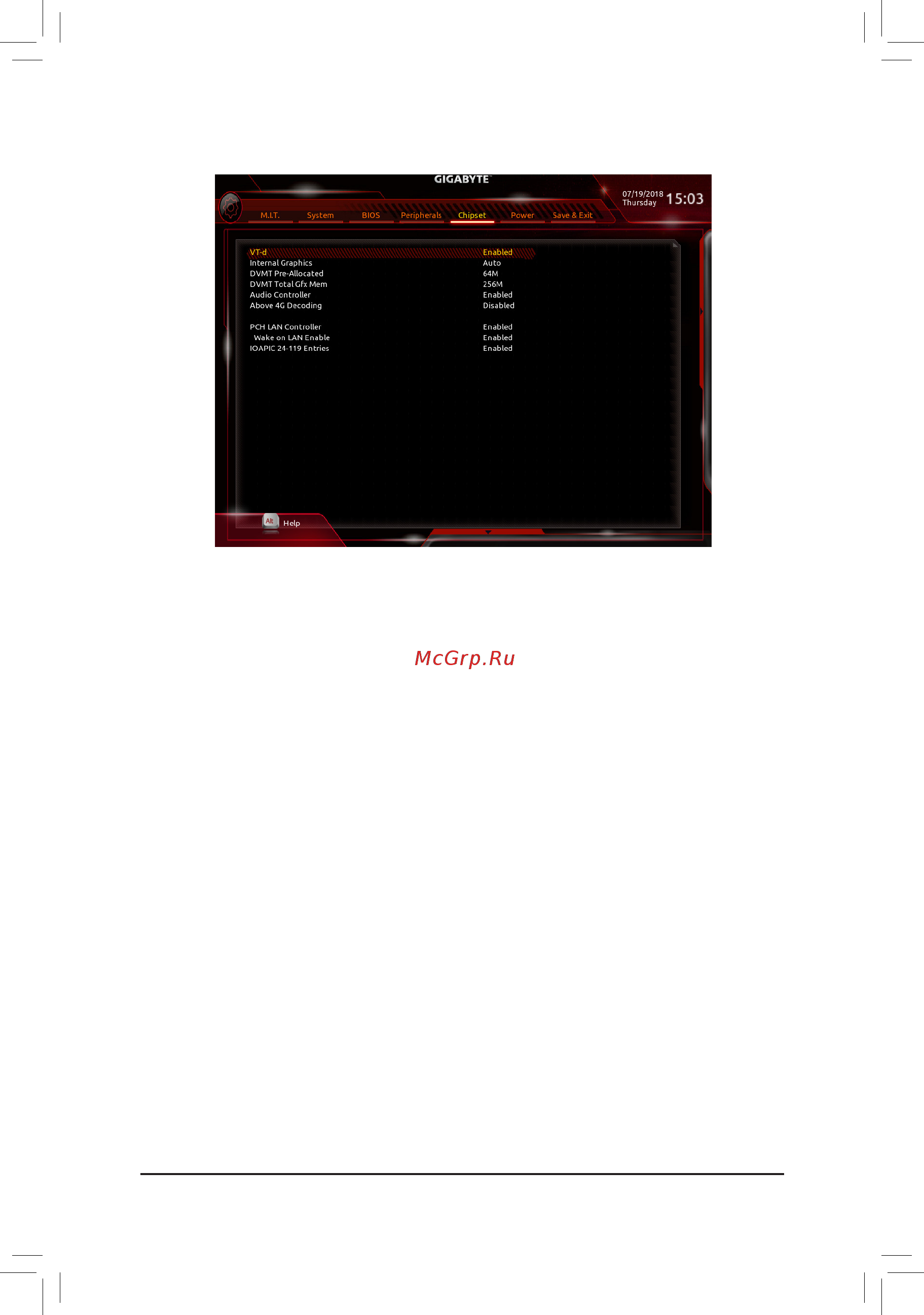

2-7 Chipset

(Note) This item is present only when you install a CPU that supports this feature. For more information about

Intel

CPUs' unique features, please visit Intel's website.

- 36 -
