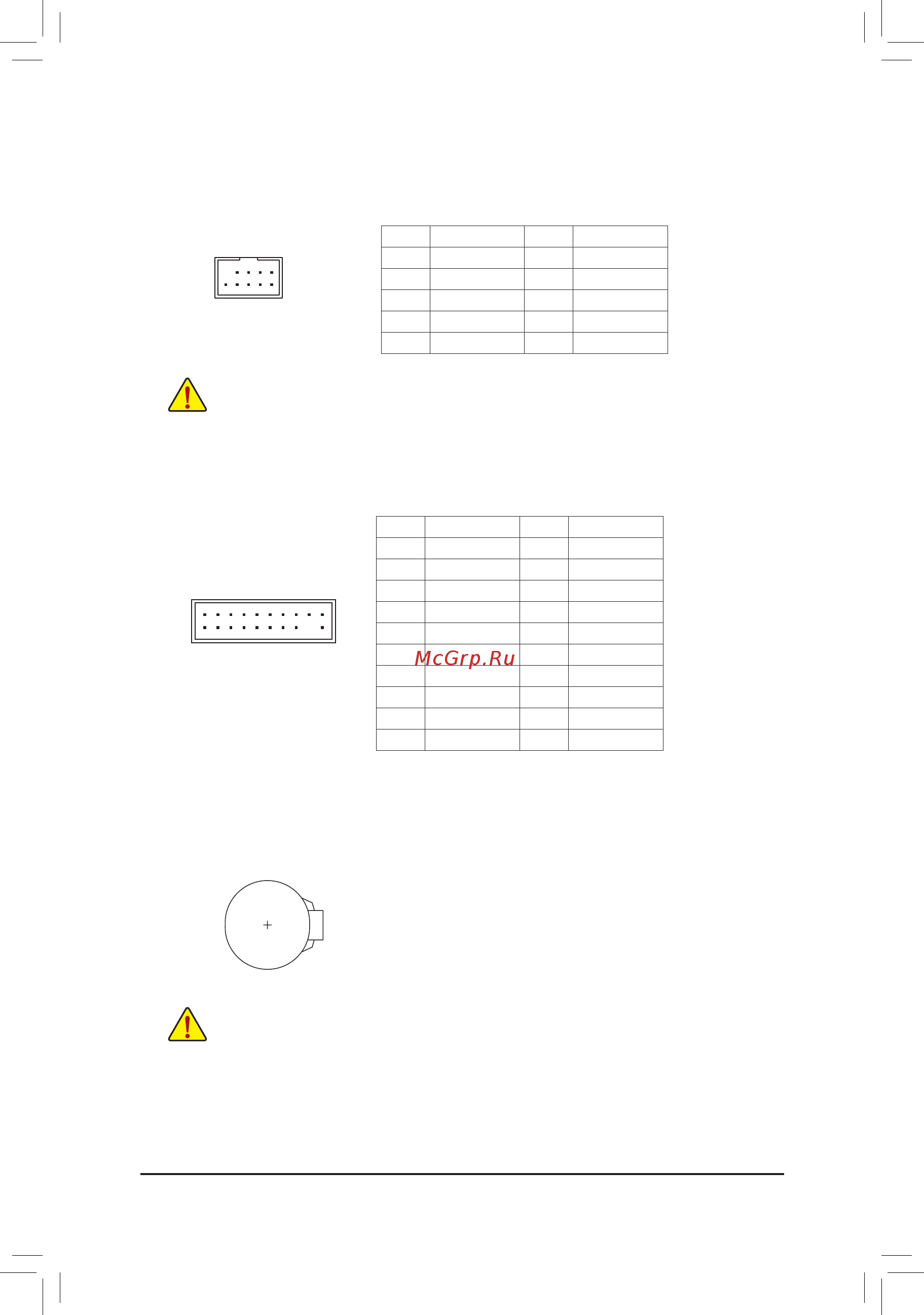

Gigabyte GA-AX370-Gaming (rev. 1.x) [18/40] F_usb1 f_usb2 usb 2 1 headers

14) TPM (Trusted Platform Module Header)

 YoumayconnectaTPM(TrustedPlatformModule)tothisheader.

Pin No. Denition Pin No. Denition

1 LCLK 11 LAD0

2 GND 12 GND

3 LFRAME 13 NC

4 No Pin 14 NC

5 LRESET 15 SB3V

6 NC 16 SERIRQ

intheCMOSwhenthecomputeristurnedoff.Replacethebatterywhenthebatteryvoltagedropstoalow

level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute. (Or

use a metal object like a screwdriver to touch the positive and negative terminals

ofthebatteryholder,makingthemshortfor5seconds.)

3. Replacethebattery.

4. Plug in the power cord and restart your computer.

• Always turn off your computer and unplug the power cord before replacing the battery.

• Used batteries must be handled in accordance with local environmental regulations.

13) F_USB1/F_USB2 (USB 2.0/1.1 Headers)

 TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
