Gigabyte Z390 AORUS MASTER G2 Edition [104/140] 2 5 easy raid

Unique Features - 104 -

5-2-5 Easy RAID

The GIGABYTE Easy RAID

(Note)

utility includes the following 'EZ' setups applications that will offer greatly

simplied install and conguration procedures: Disk Mode Switch and XHD.

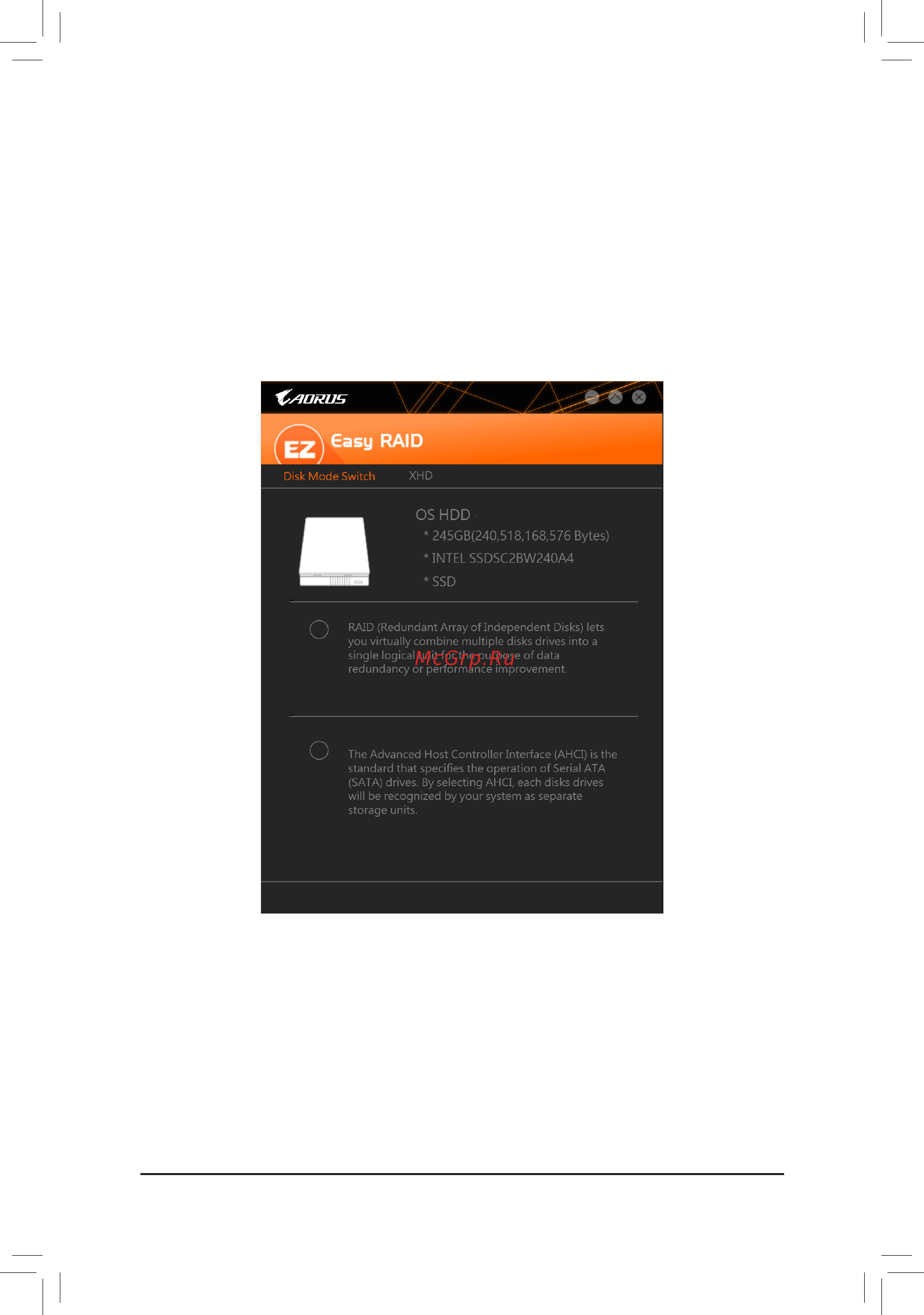

Disk Mode Switch

Disk Mode Switch allows you to change the SATA controller disk mode from AHCI to RAID mode even after the

hard drive has been installed with an operating system. After switching the operating mode, please restart your

computer and make sure the Intel

Rapid Storage Technology utility can work properly.

(Note) This feature is supported only in UEFI mode.
