Unique Features - 108 -
(Note) PEG ASPM, PCH ASPM, DMI ASPM Control are configurable only when Platform Power
Management is set to Enabled.
5-2-8 Platform Power Management
This application allows you to change the Platform Power Management settings in Windows and sync the
settings to the BIOS.

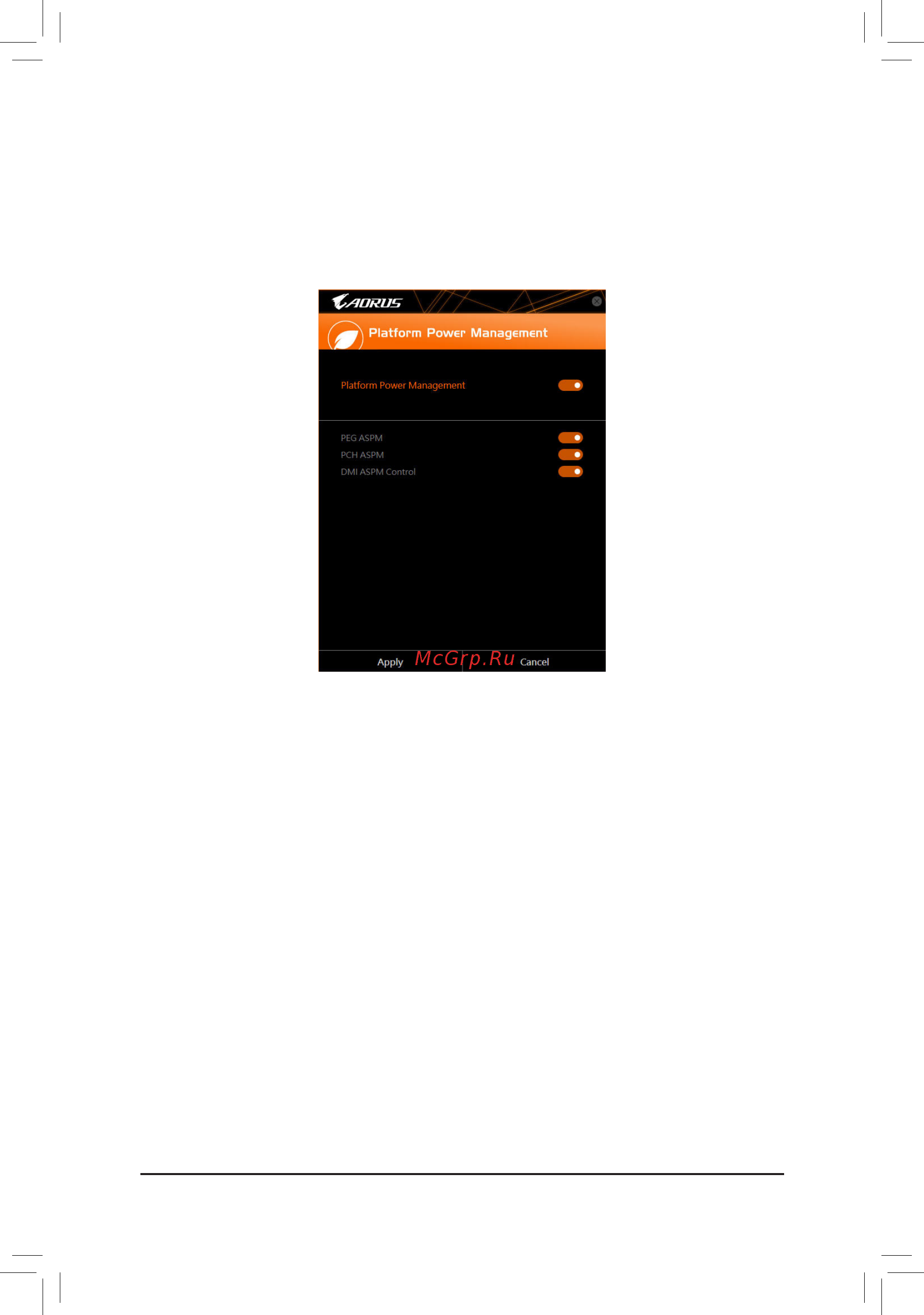

The Platform Power Management Interface
Using Platform Power Management:
• Platform Power Management:
Enables or disables the Active State Power Management function (ASPM).
• PEG ASPM:
Allows you to congure the ASPM mode for the device connected to the CPU PEG bus.
• PCH ASPM:
Allows you to congure the ASPM mode for the device connected to Chipset's PCI Express bus.
• DMI ASPM Control:
Allows you to congure the ASPM mode for both CPU side and Chipset side of the DMI link.
