Gigabyte Z390 AORUS MASTER G2 Edition [24/140] 8 onboard leds and buttons

Gigabyte Z390 AORUS MASTER [24/140] 8 onboard leds and buttons

- 24 -

Hardware Installation

1-8 Onboard LEDs and Buttons

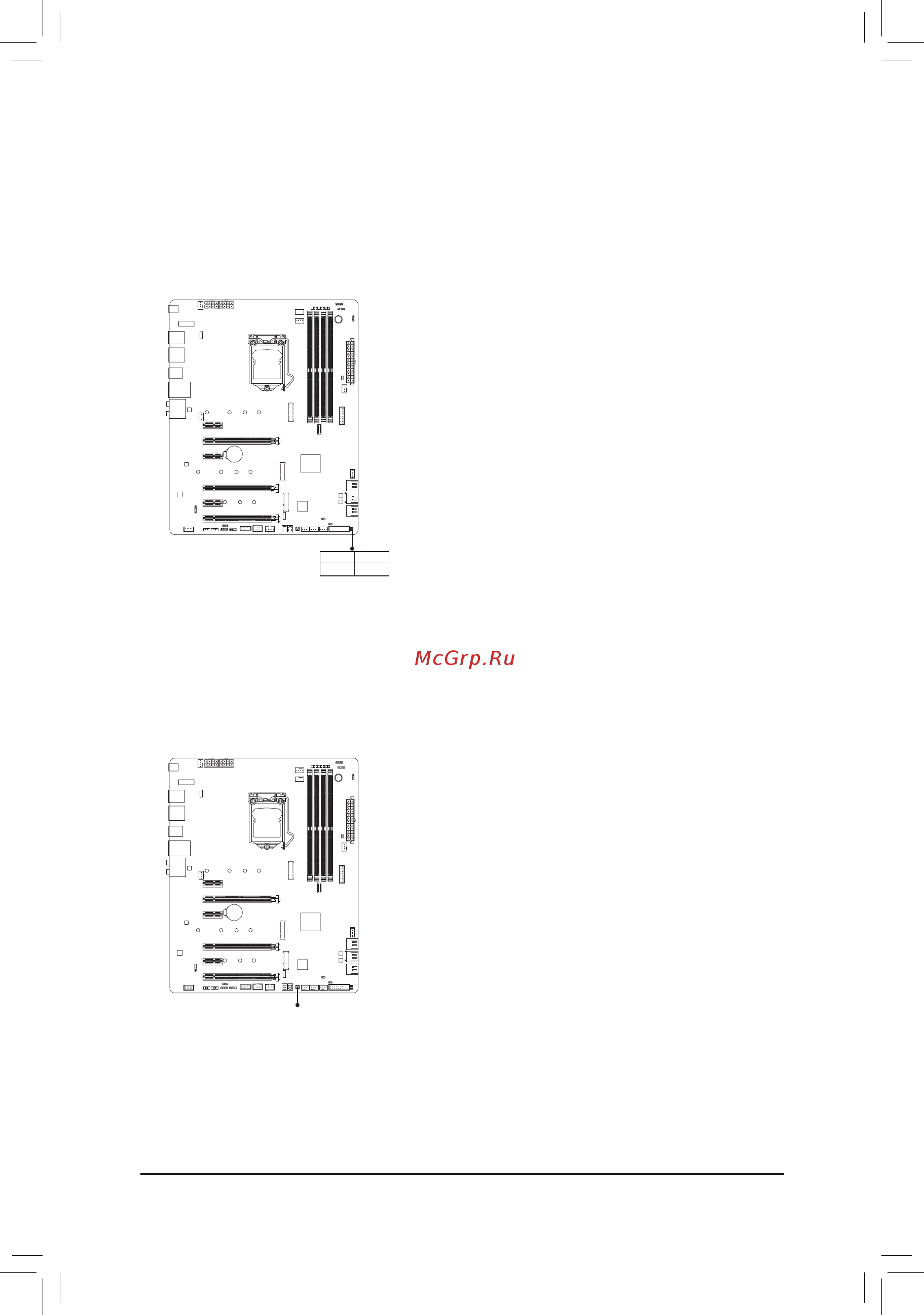

CPU/DRAM/VGA/BOOT (Status LEDs)

The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly

after system power-on. If the CPU/DRAM/VGA LED is on, that means the corresponding device is not working

normally; if the BOOT LED is on, that means you haven't entered the operating system yet.

CPU: CPU status LED

DRAM: Memory status LED

VGA: Graphics card status LED

BOOT: Operating system status LED

CPU DRAM

VGA BOOT

Quick Button

This motherboard has reset button. The reset button allows users to quickly turn on/off the computer in an open-

case environment when they want to change hardware components or conduct hardware testing.

RST_SW
