BIOS Setup

- 54 -

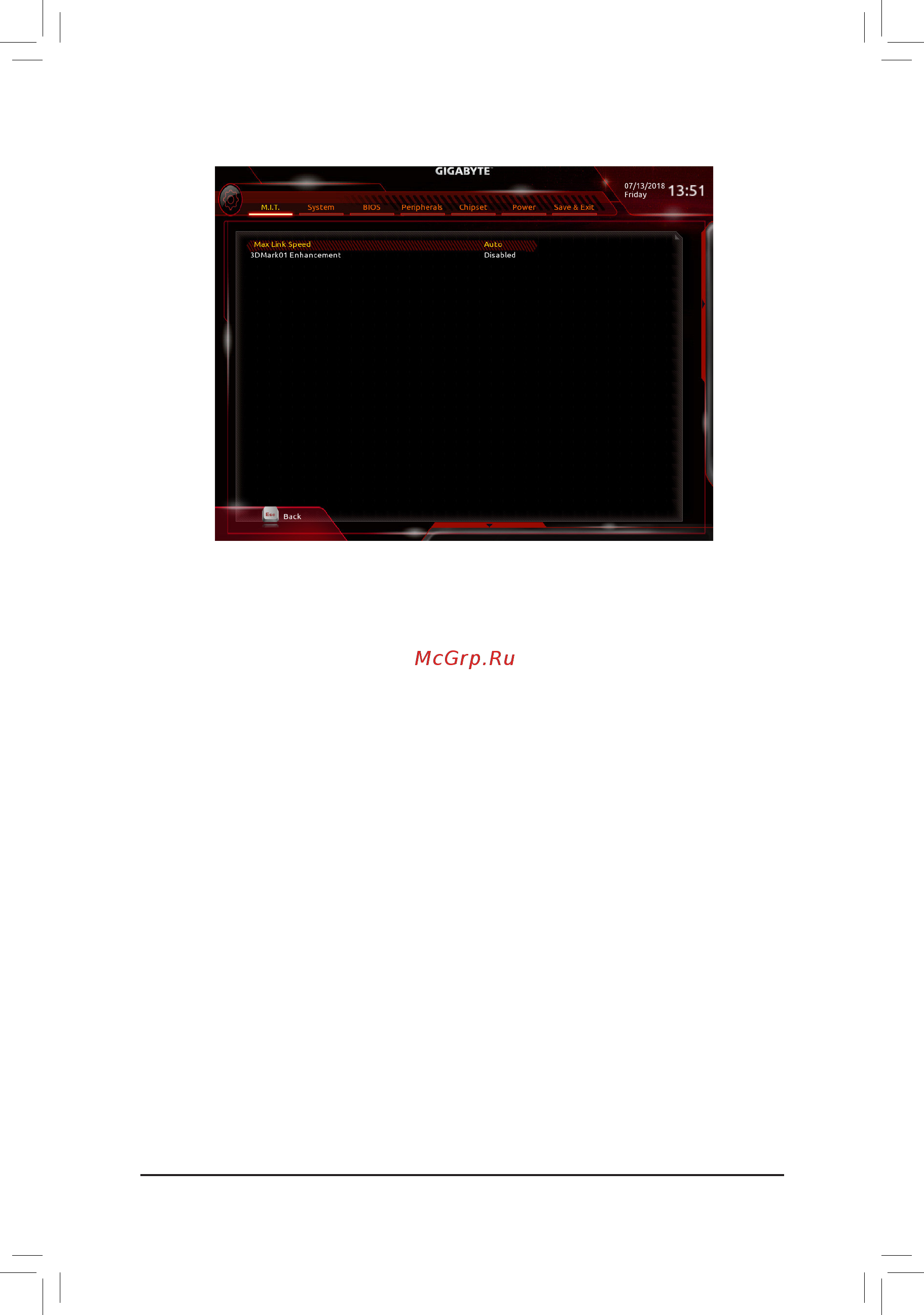

` Miscellaneous Settings

& Max Link Speed

Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation

mode is subject to the hardware specication of each slot. Auto lets the BIOS automatically congure this

setting. (Default: Auto)

& 3DMark01 Enhancement

Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)
