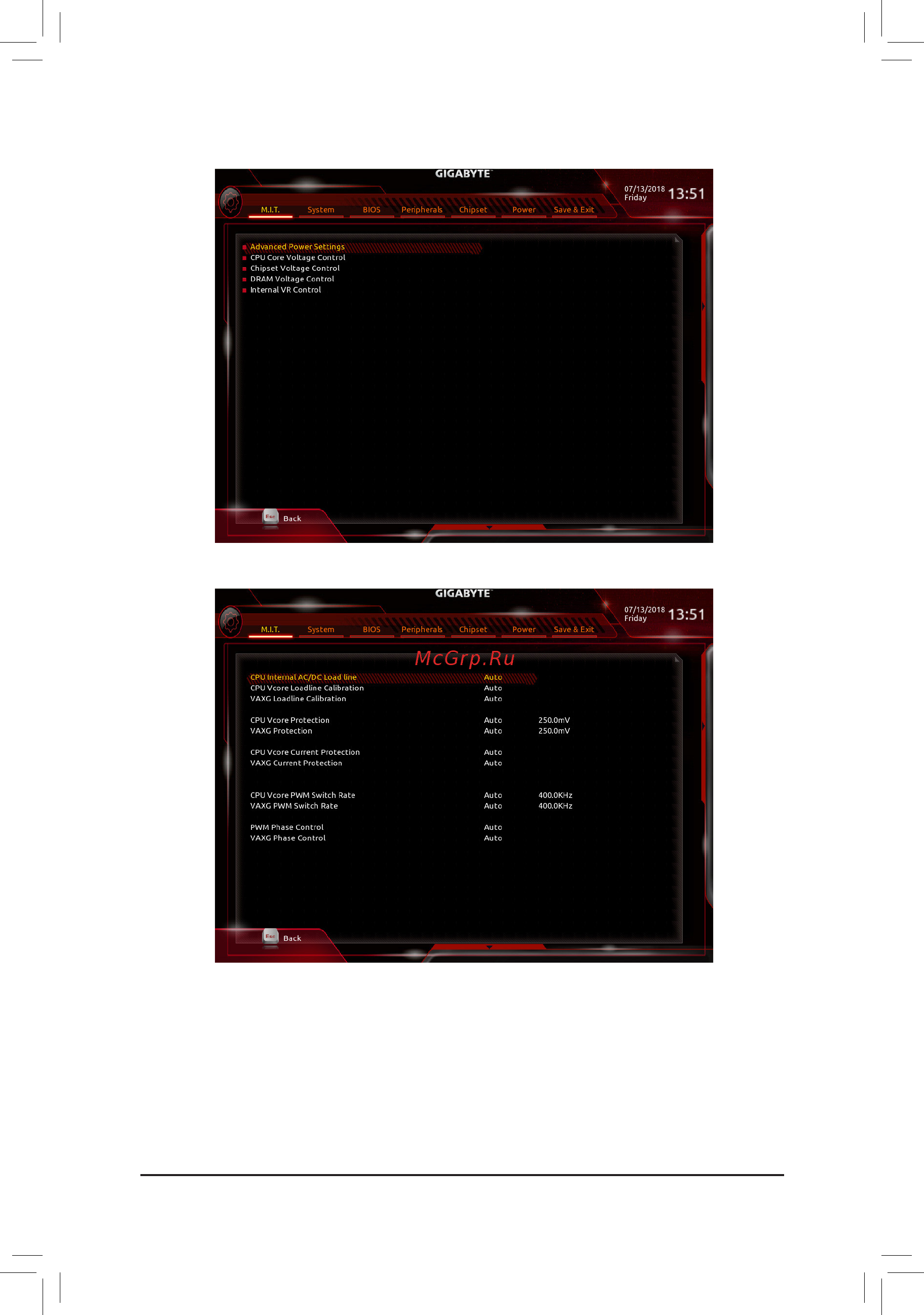

BIOS Setup
- 51 -
` Advanced Voltage Settings
` Advanced Power Settings
` Advanced Power Settings
& CPU Vcore Loadline Calibration
Allows you to congure Load-Line Calibration for the CPU Vcore voltage. Selecting a higher level keeps
the CPU Vcore voltage more consistent with what is set in BIOS under heavy load. Auto lets the BIOS
automatically congure this setting and sets the voltage following Intel's specications. (Default: Auto)
& VAXGLoadlineCalibration
Allows you to congure Load-Line Calibration for the CPU VAXG voltage. Selecting a higher level keeps
the CPU VAXG voltage more consistent with what is set in BIOS under heavy load. Auto lets the BIOS
automatically congure this setting and sets the voltage following Intel's specications. (Default: Auto)
