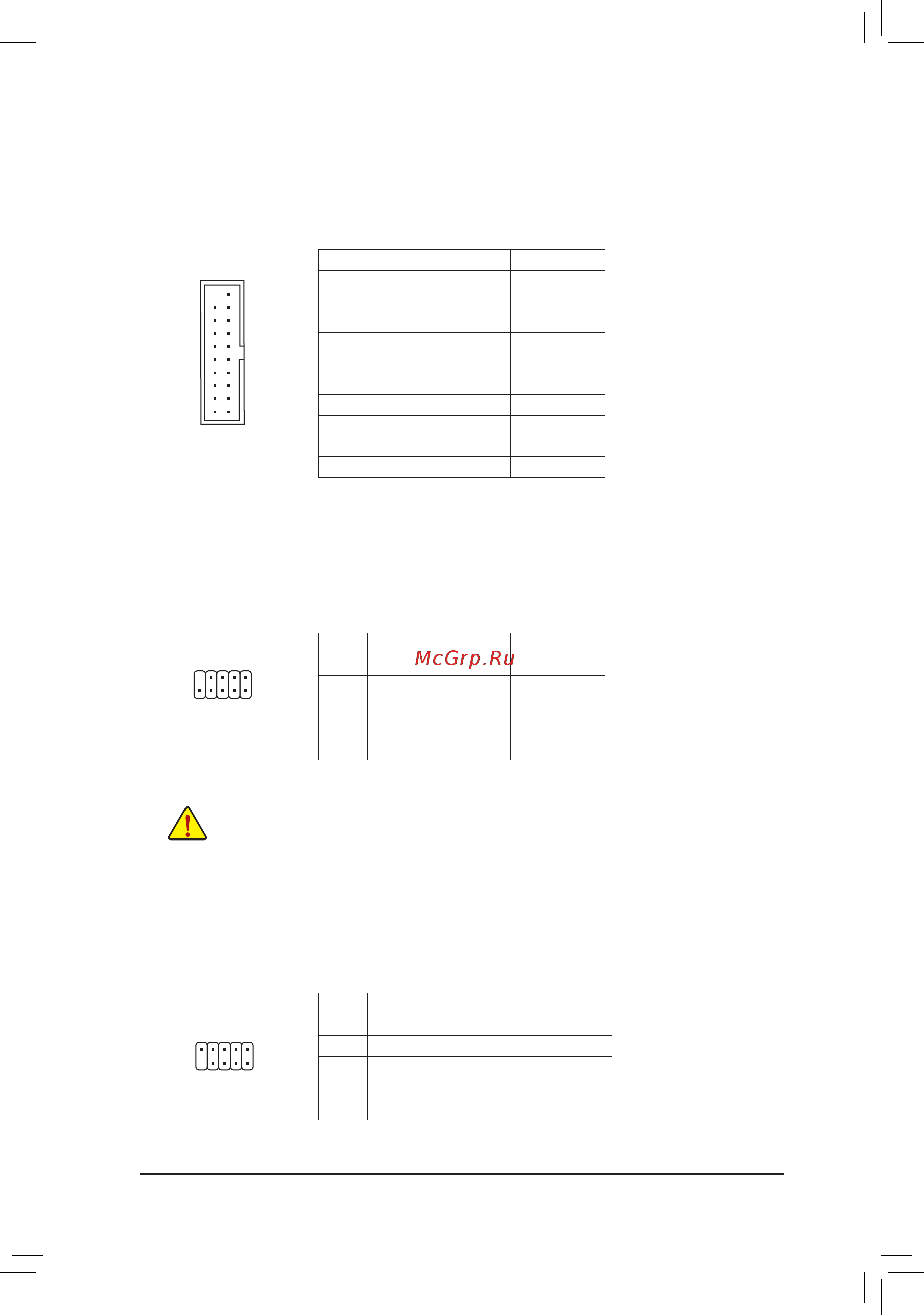

Gigabyte H410M DS2V [17/40] F_u32 usb 3 gen 1 header

Pin No. Denition Pin No. Denition

1 VBUS 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 GND

4 GND 14 SSTX2+

5 SSTX1- 15 SSTX2-

6

SSTX1+ 16

GND

 TheheaderconformstoUSB3.2Gen1andUSB2.0specicationandcanprovidetwoUSBports.For

purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local

dealer.

11) F_USB1 (USB 2.0/1.1 Header)

 TheheaderconformstoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

Pin No. Denition Pin No. Denition

• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord

from the power outlet to prevent damage to the USB bracket.

12) COM (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

Pin No. Denition Pin No. Denition

1 NDCD- 6 NDSR-

2 NSIN 7 NRTS-
