Gigabyte B365M H (rev. 1.0) [11/44] Audiojackconfigurations

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

Line In/Rear Speaker Out (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out (Green)

The line out jack.

Mic In/Center/Subwoofer Speaker Out (Pink)

The Mic in jack.

• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

• Whenremovingthecable,pullitstraightoutfromtheconnector.Donotrockitsidetosideto

prevent an electrical short inside the cable connector.

Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe

multi-channel audio feature through the audio driver.

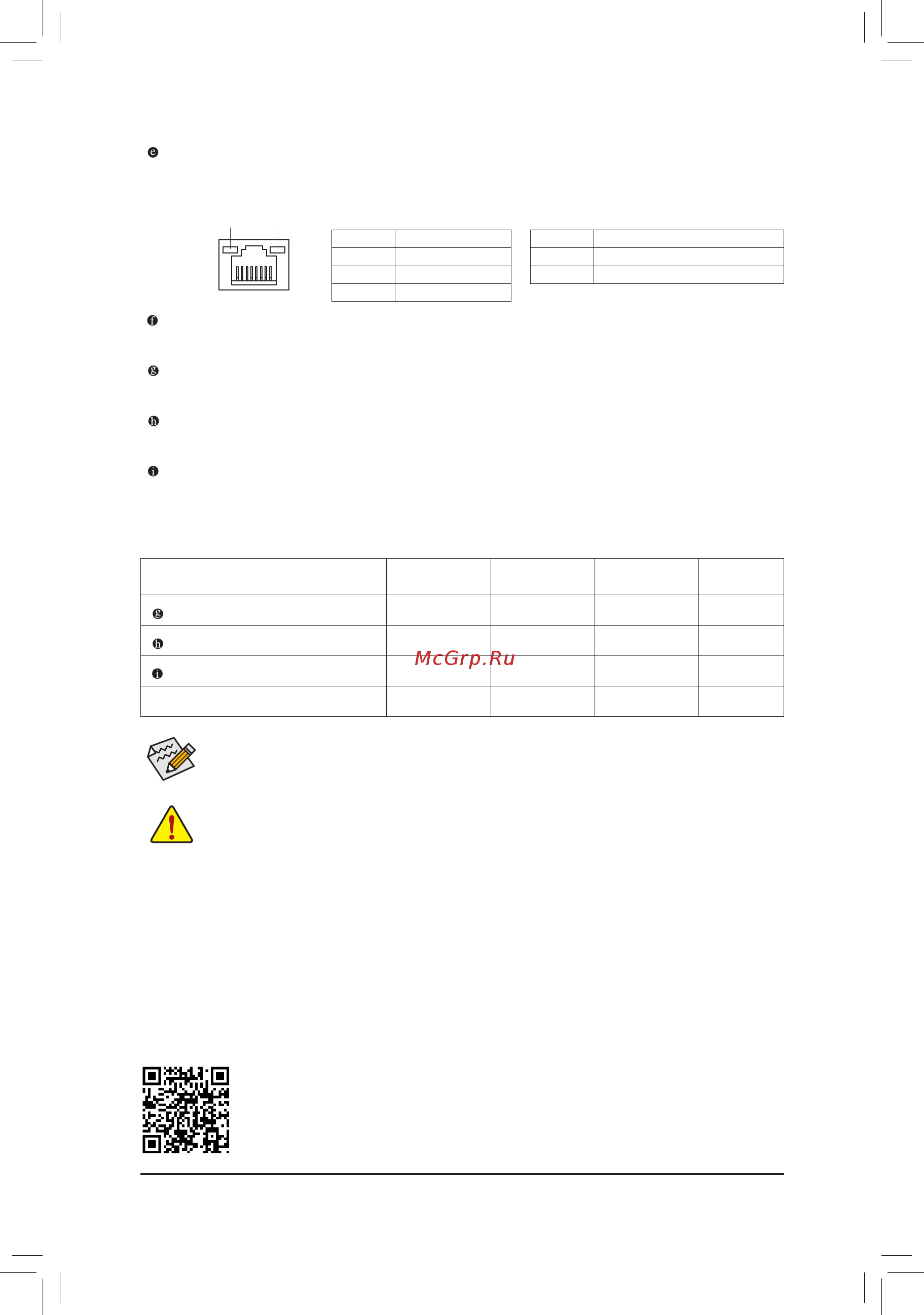

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describesthestatesoftheLANportLEDs.

ActivityLED

Connection/SpeedLED

ActivityLED:Connection/SpeedLED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off

No data transmission or receiving is occurring

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

AudioJackCongurations:

Jack

Headphone/

2-channel

4-channel 5.1-channel 7.1-channel

LineIn/RearSpeakerOut

a a a

Line Out/Front Speaker Out

a a a a

Mic In/Center/Subwoofer Speaker Out

a a

Front Panel Line Out/Side Speaker Out

- 11 -
