Gigabyte GA-H97-Gaming 3 (rev. 1.1) [43/80] Case open

BIOS Setup

- 43 -

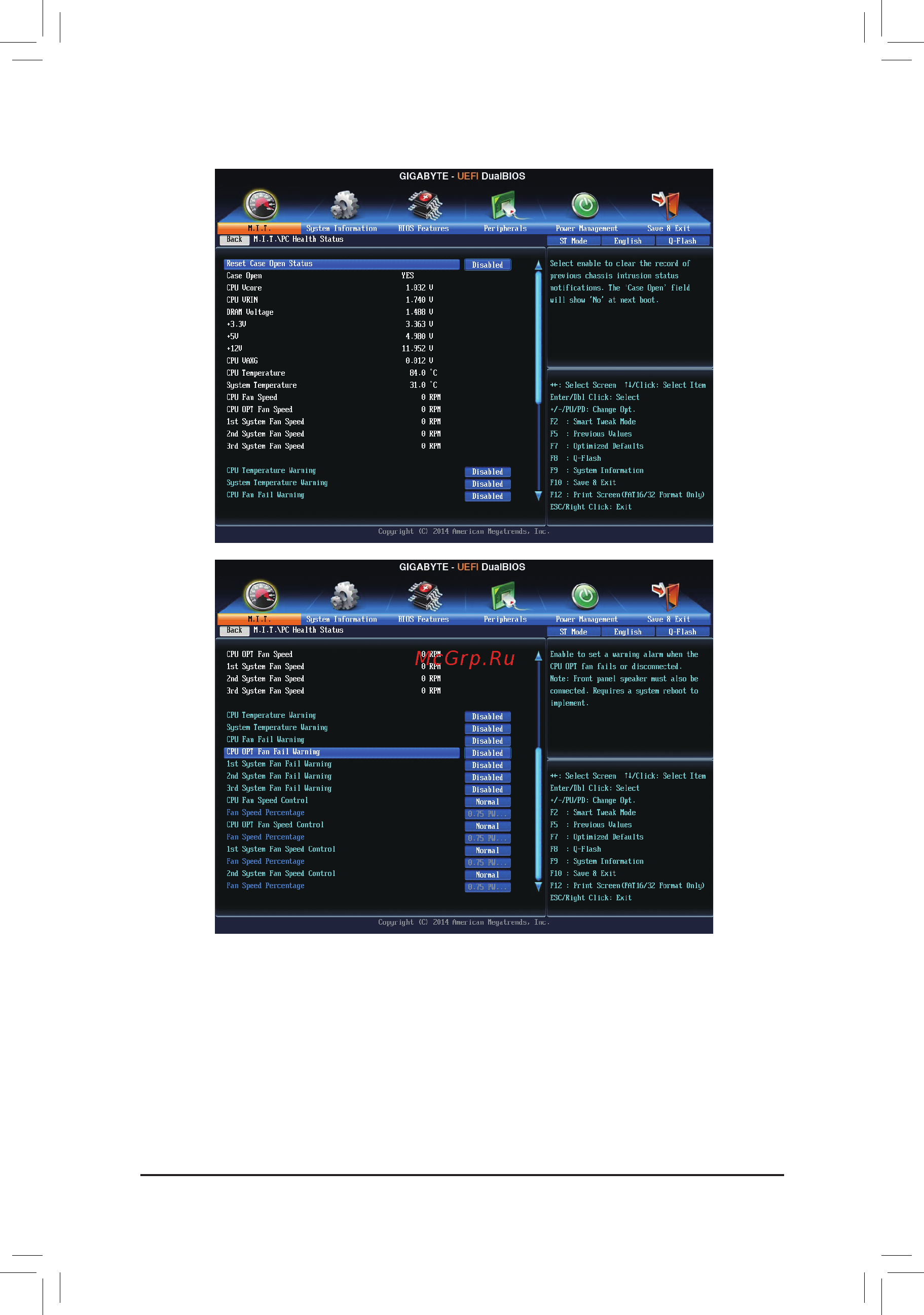

` PC Health Status

& Reset Case Open Status

Disabled  Keepsorclearstherecordofpreviouschassisintrusionstatus.(Default)

Enabled Clears the record of previous chassis intrusion status and the Case Openeldwill

show"No"atnextboot.

& Case Open

Displays the detection status of the chassis intrusion detection device attached to the motherboard CI

header.Ifthesystemchassiscoverisremoved,thiseldwillshow"Yes", otherwise it will show "No". To

clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to

the CMOS, and then restart your system.
