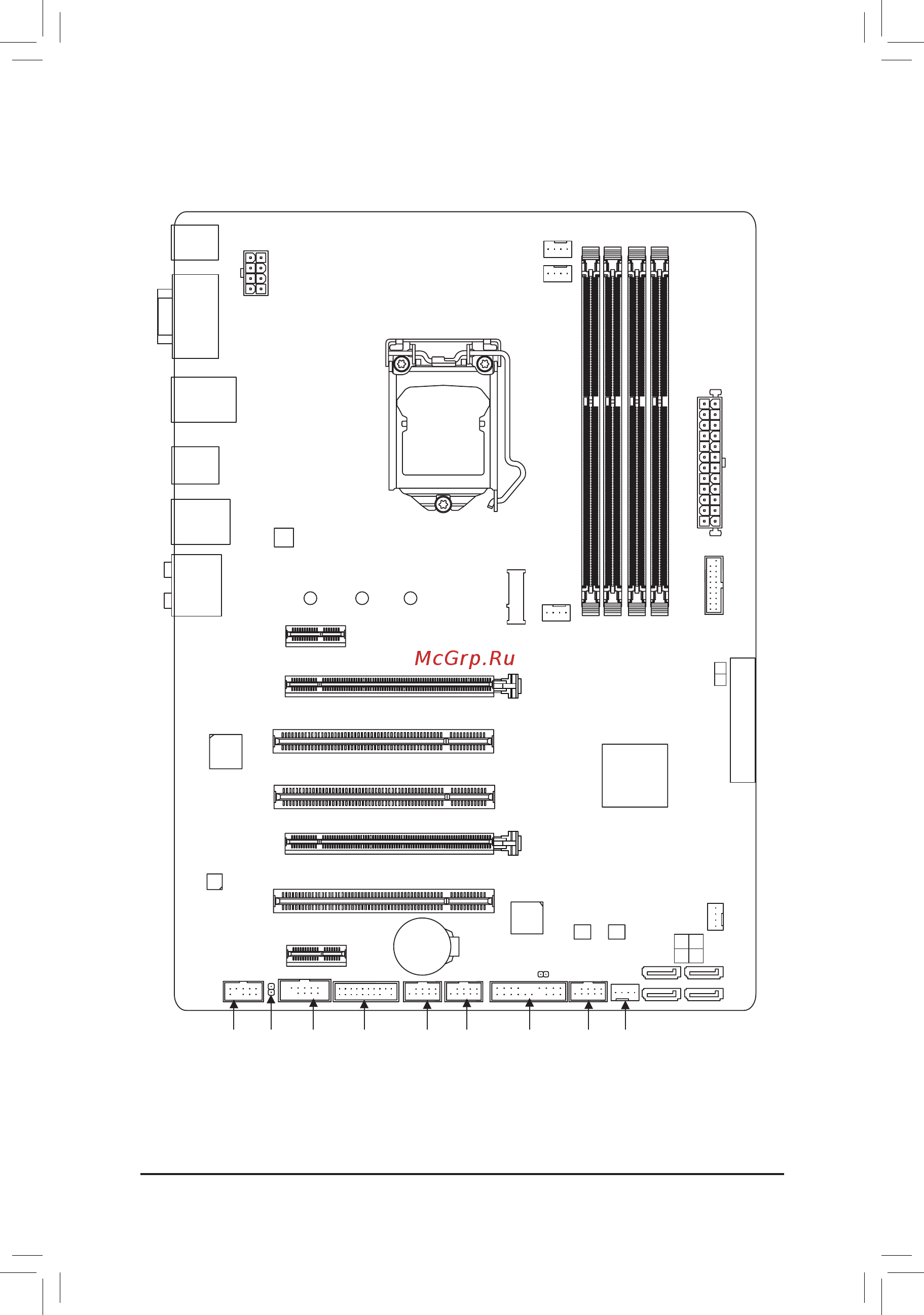

GA-H97-Gaming 3 Motherboard Layout
KB_MS_USB
CPU_FAN
ATX_12V_2X4
ATX
F_AUDIO
B_BIOS
PCIEX4
DDR3_2
DDR3_1
DDR3_4
DDR3_3
BAT
F_PANELCOMA
Intel
®
H97
PCIEX1_2
CLR_CMOS
CODEC
CPU_OPT
M_BIOS
PCI1
PCIEX16
PCIEX1_1
SPDIF_O F_USB2
LGA1150
GA-H97-Gaming 3
DVI
VGA
PCI3
F_USB30
PCI2
SYS_FAN3
SATA3
iTE
®
Super I/O
SYS_FAN2F_USB3 F_USB1TPM
1 0
3 2
SYS_FAN1
M.2
PCIe to
PCI Bridge
SATA_EXPRESS
SATA3
5 4
AUDIO
R_USB30
USB30_LAN
DP_HDMI_SPDIF
Qualcomm
®
Atheros Killer
E2201LAN
