Gigabyte GA-H97-Gaming 3 (rev. 1.1) [61/80] C 1 uefiraidconfiguration

- 61 -

Conguring SATA Hard Drive(s)

C-1.UEFIRAIDConguration

OnlyWindows8.1/864-bitsupportsUEFIRAIDconguration.

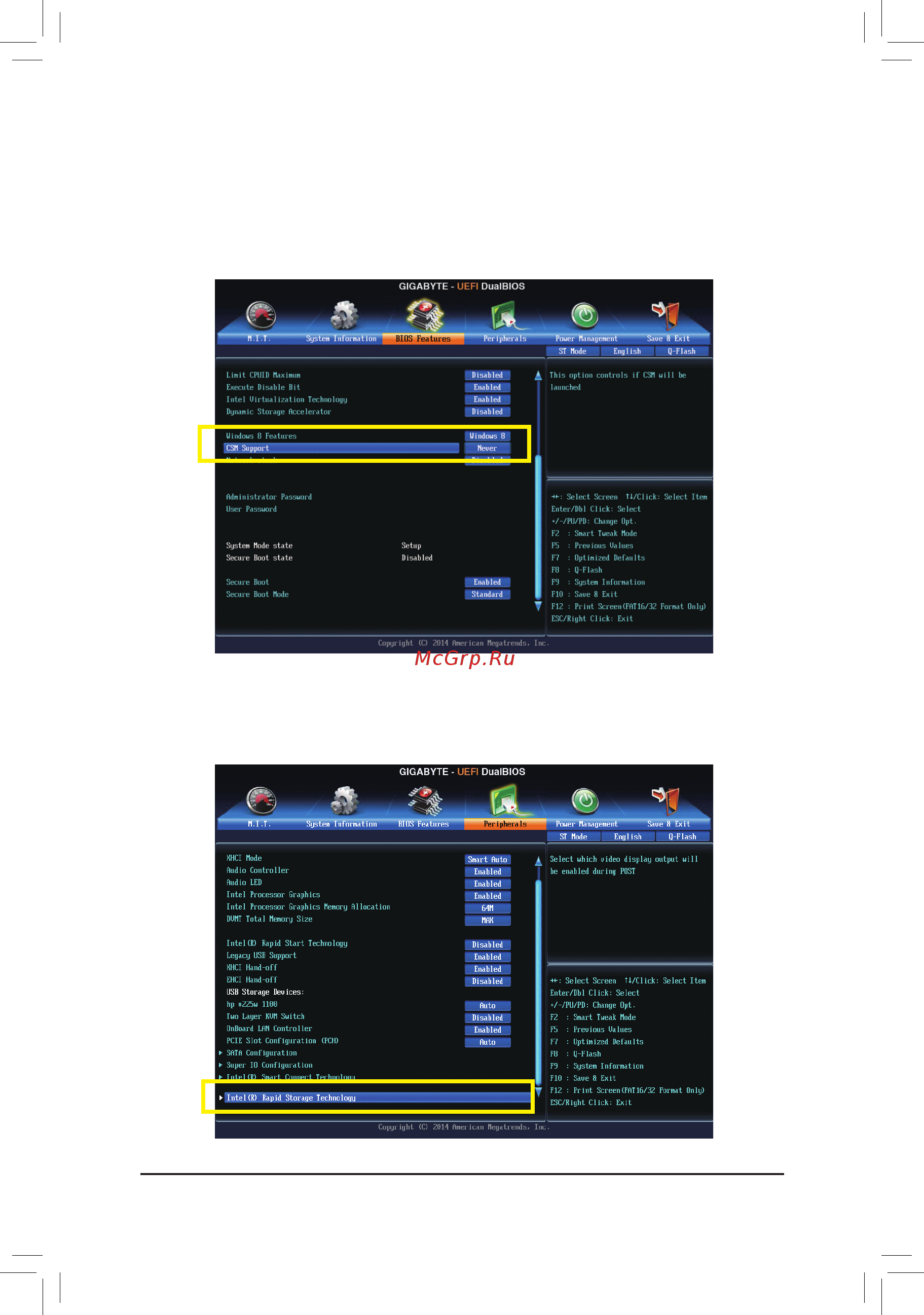

Step 1:

In BIOS Setup, go to BIOS Features and set Windows 8 Features to Windows 8 and CSM Support to Never

(Figure2).SavethechangesandexitBIOSSetup.

Step 2:

After the system reboot, enter BIOS Setup again. Then enter the Peripherals\Intel(R) Rapid Storage Technology

sub-menu(Figure3).

Figure 2

Figure 3
