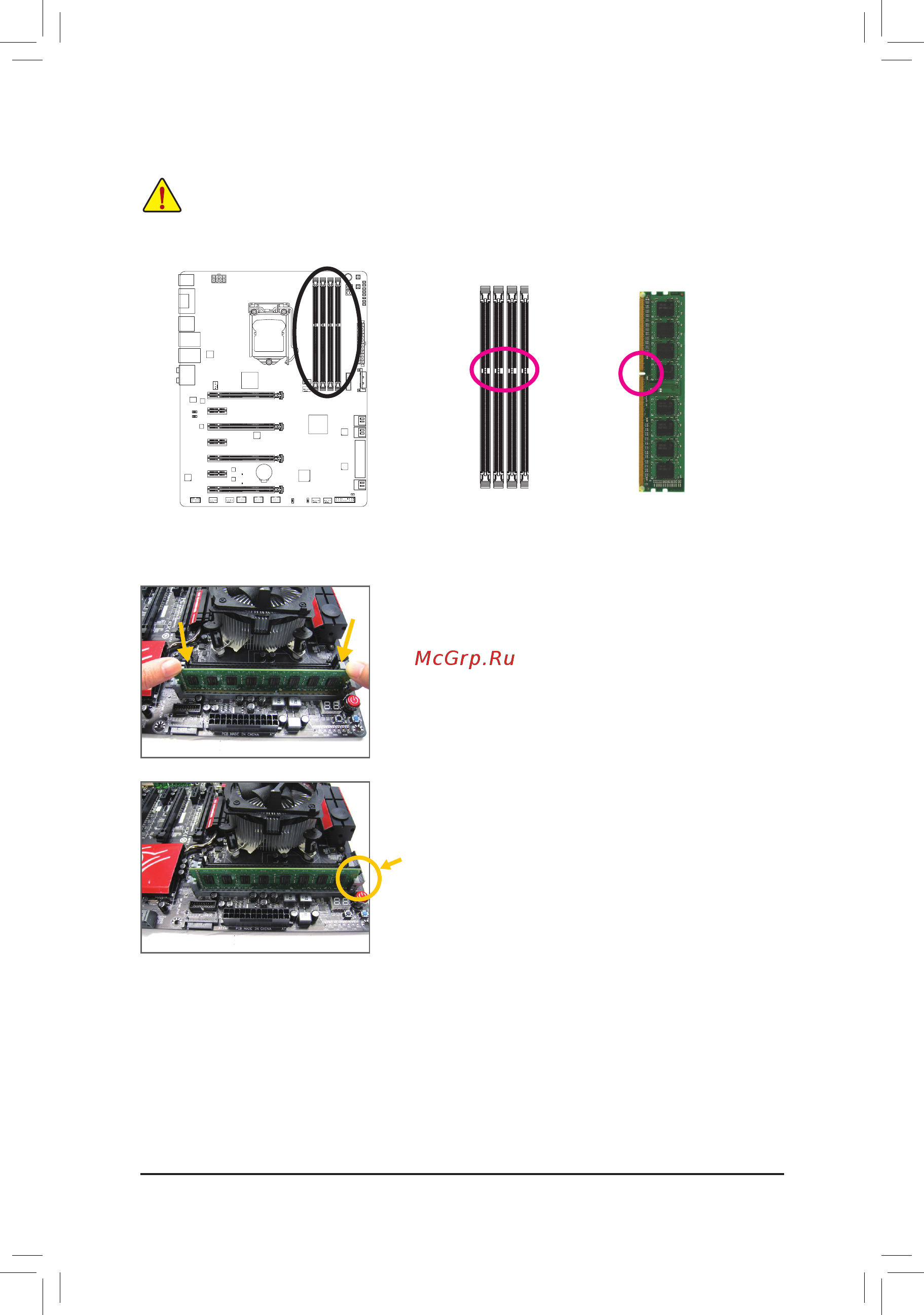

1-4-2 Installing a Memory

Before installing a memory module, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs

are not compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this

motherboard.

ADDR3memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectlyinstall

thesocket.Asindicatedinthepictureontheleft,placeyourngers

on the top edge of the memory, push down on the memory and insert

it vertically into the memory socket.

Step 2:

The clip at the right end of the socket will snap into place when the

memory module is securely inserted.
