- 41 -

BIOS Setup

` M.I.T. Current Status

This screen provides information on CPU/memory frequencies/parameters.

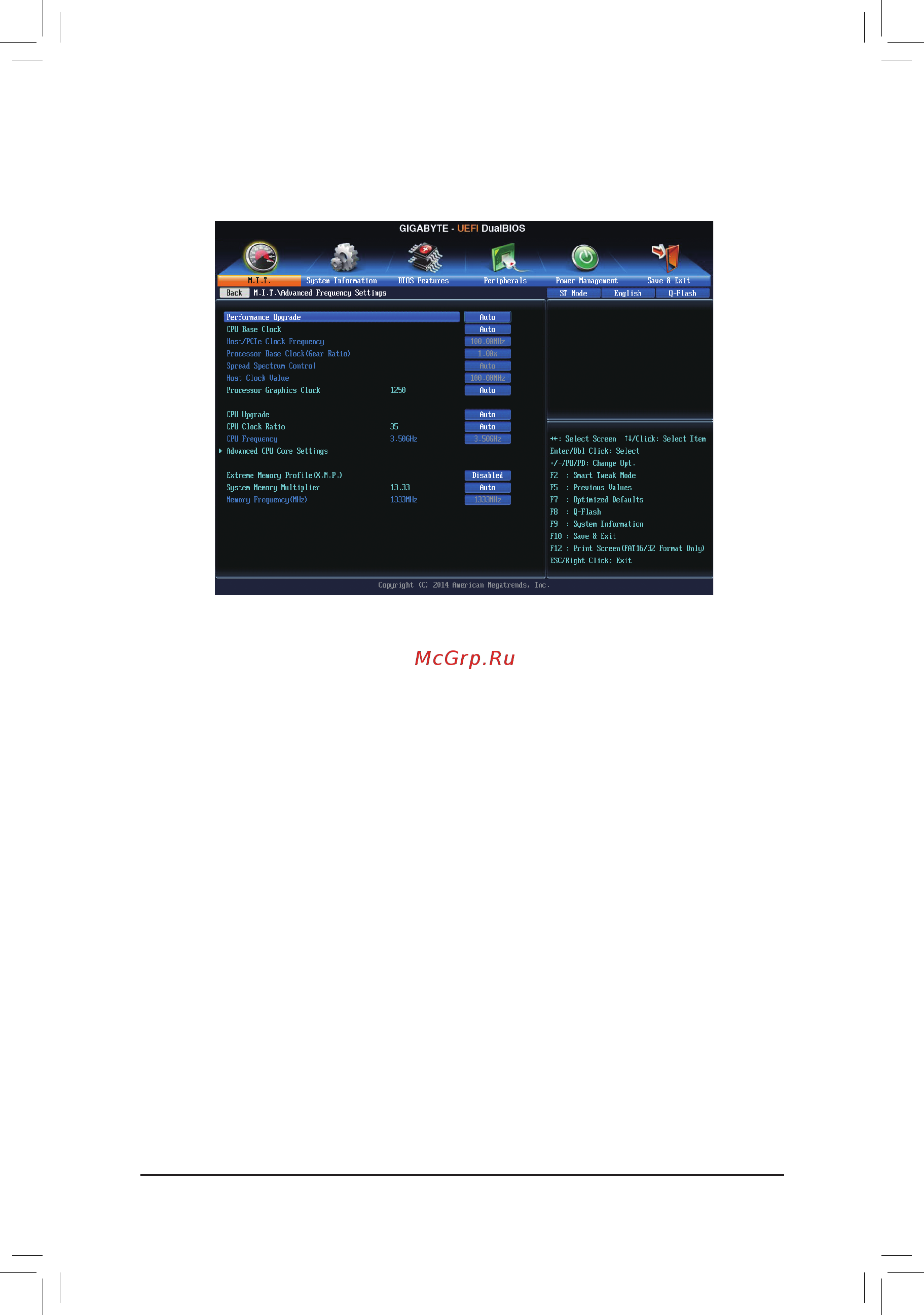

` Advanced Frequency Settings

& Performance Upgrade

(Note)

 Providesyouwithvedifferentoverclockingcongurations.Optionsare:20%Upgrade,40%Upgrade,

60%Upgrade,80%Upgrade,100%Upgrade.(Default:Auto)

& CPU Base Clock

 AllowsyoutomanuallysettheCPUbaseclockin0.01MHzincrements.(Default:Auto)

Important: It is highly recommended that the CPU frequency be set in accordance with the CPU

specications.

& Host/PCIe Clock Frequency

(Note)

 Allowsyoutomanuallysetthehostclockfrequency(whichcontrolsCPU,PCIe,andmemoryfrequencies)

in0.01MHzincrements.ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.

& Processor Base Clock (Gear Ratio)

(Note)

 AllowsyoutoconguretheProcessorBaseClockbymultiplyingtheHost/PCIe Clock Frequency by several

presethostclockmultipliers.ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.

& Spread Spectrum Control

(Note)

 EnablesordisablesCPU/PCIeSpreadSpectrum.(Default:Auto)

& Host Clock Value

This value is determined by multiplying the

Host/PCIe Clock Frequency

value by the

Processor Base

Clock (Gear Ratio)

value.

& Processor Graphics Clock

 Allowsyoutosettheonboardgraphicsclock.Theadjustablerangeisfrom400MHzto4000MHz.(Default:

Auto)

& CPU Upgrade

(Note)

 AllowsyoutosettheCPUfrequency.OptionsmayvarydependingontheCPUbeingused.(Default:Auto)

(Note) ThisitemispresentonlywhenyouinstallaCPUthatsupportsthisfeature.Formoreinformationabout

Intel

CPUs' unique features, please visit Intel's website.
